C-SCOPE DXL4 User Manual

31
Using the Signal Generator/ Transmitter: Signal Injector
Signal Injector

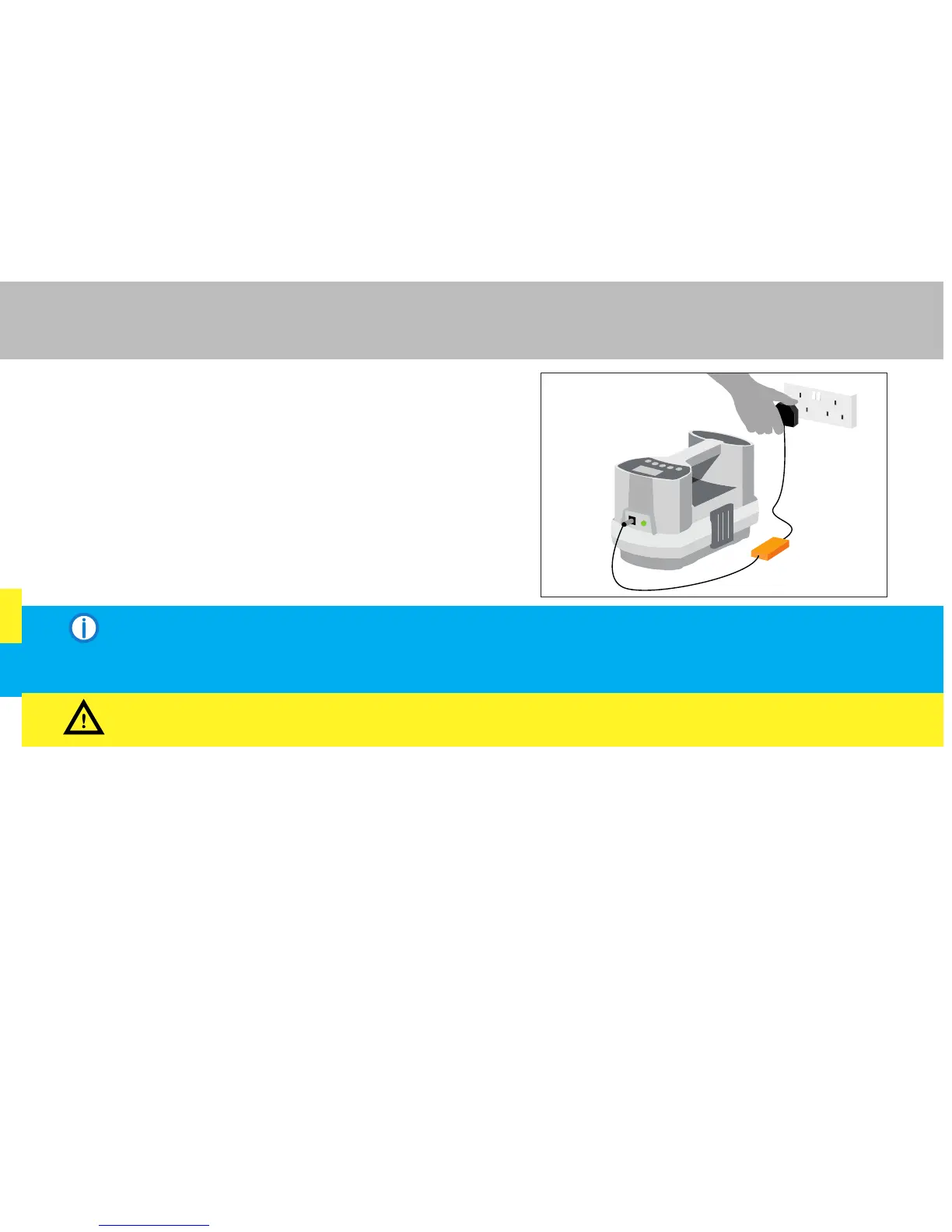

1. Plug the Signal Injector into the Connection Socket
on the Signal Generator/ Transmitter and an electric outlet.
2. Turn the Signal Generator/ Transmitter on.
For MXT4 only, select either 8kHz, 33kHz or CF frequency.
3. Turn the socket on. The audible tone from the Signal Generator/
Transmitter will drop in pitch to indicate a successful connection.
NOTE On two wire Protective Multiple Earth (PME) systems it may be necessary to also provide an external earth
using the yellow 10 metre Auxiliary Earth Lead and Earth Stake.
NOTE Using the Signal Injector may cause the system protection to trip.
NOTE Always check with the owners that it is acceptable to interrupt the supply before connecting the Signal Injector.
WARNING DO NOT use the Signal Injector on systems with voltages in excess of 240 volts AC.
Domestic systems will normally be below this voltage.
