C-SCOPE DXL4 - CXL4, DXL4 and MXL4 Locators: Operation

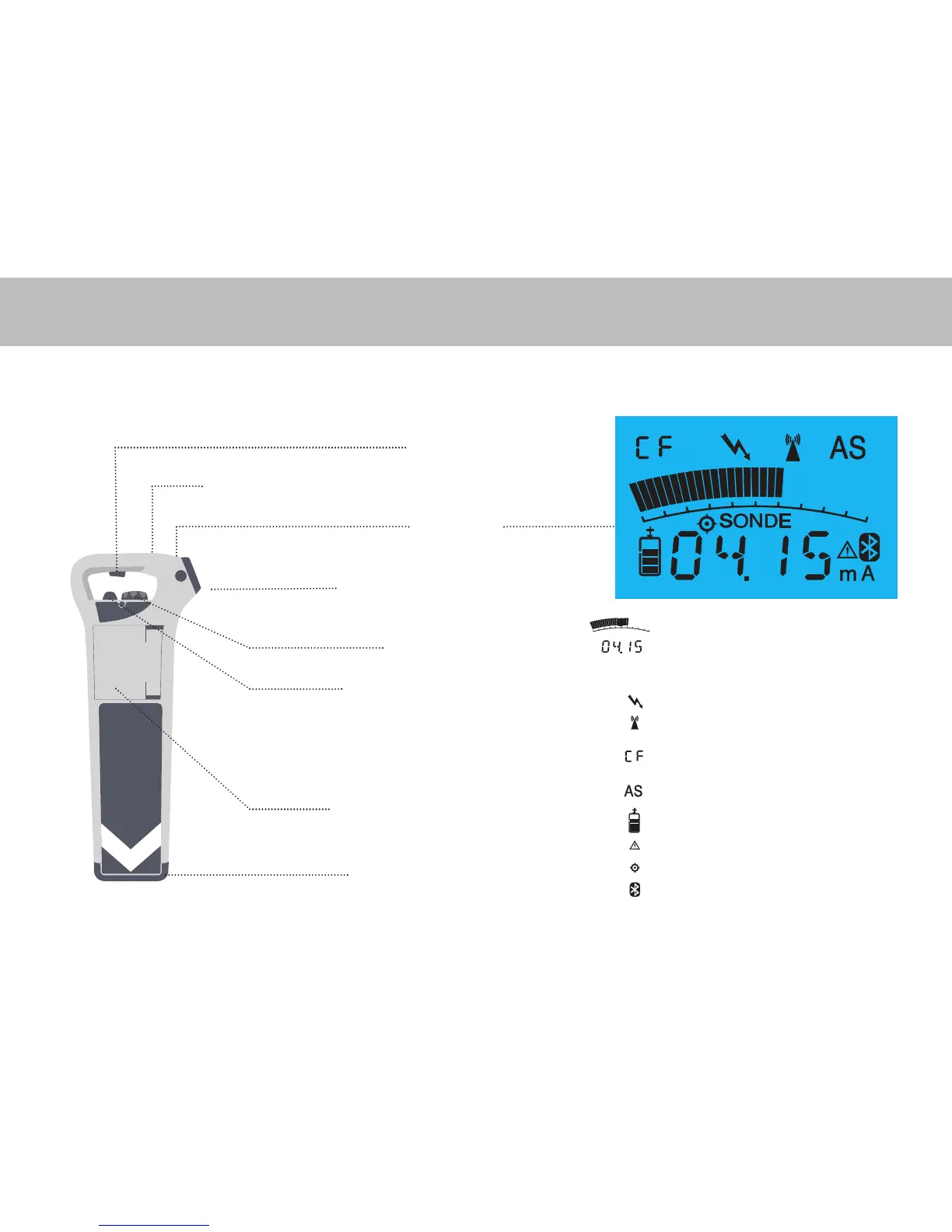

On/ Off Switch
Depth measurement button (DXL4/MXL4 only)
Digital display
Detachable Loudspeaker
Sensitivity Control
4 position Mode Switch:
P. Power
R. Radio
G. Generator/ T. Transmitter
A. All Scan
Battery Compartment and
data access connection
Replaceable Wear Foot
CXL4, DXL4 and MXL4 Locators
The CXL4, DXL4 and MXL4 can provide precise information about the position and depth (DXL4 and MXL4 only) of buried services.
The combination of locating modes enables buried services to be detected quickly and reliably.
Signal Strength Indicator
Depth display (DXL4/MXL4 only)
Mode selected:
P Power
R Radio
G Generator (CXL4/DXL4 frequency)
T Transmitter (MXL4 selected frequency)
A All Scan
Battery Condition Indicator
Self Test Warning
GPS
Bluetooth™
