C.T.M. HS-580 User Manual

Instruction Booklet5-Series
9

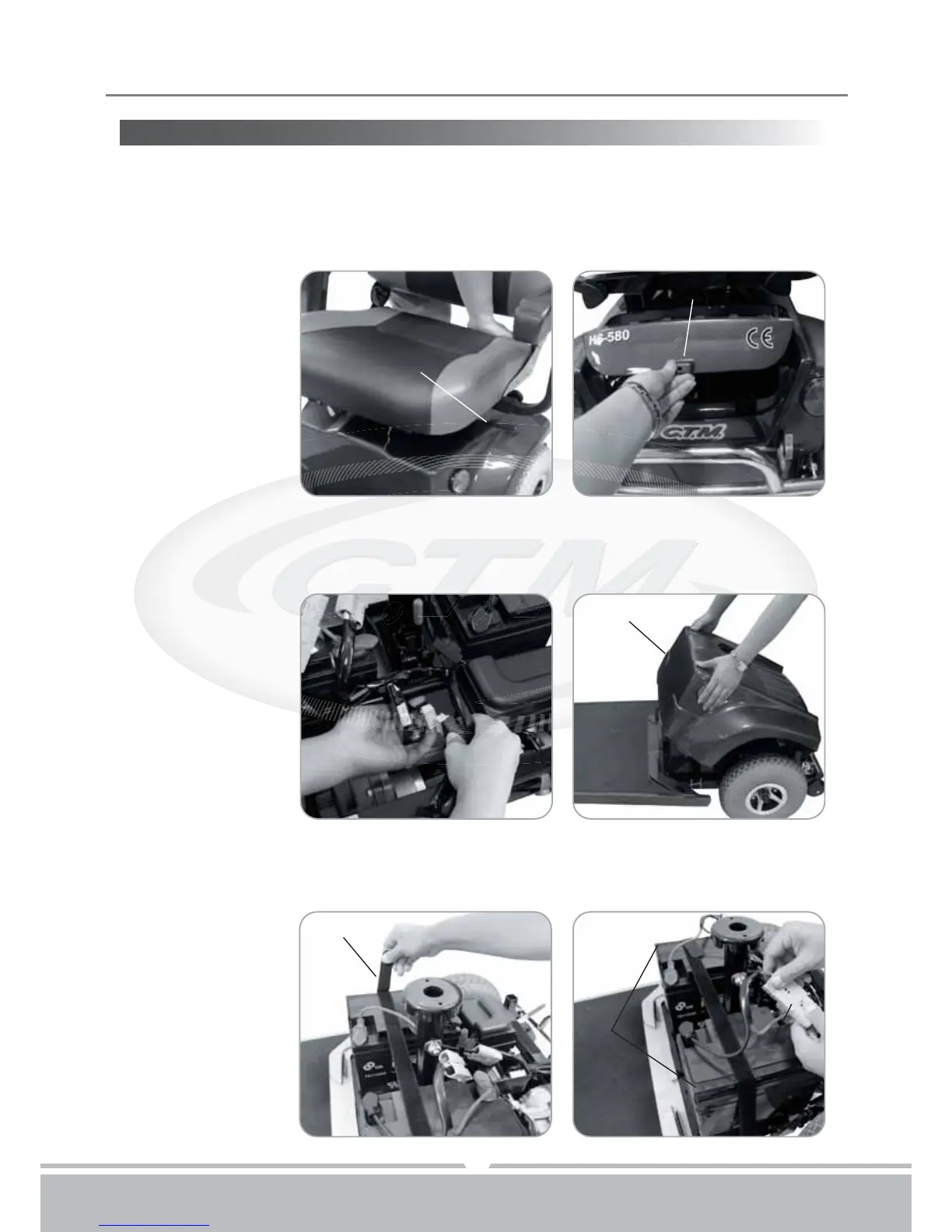

DISASSEMBLING YOUR SCOOTER
No tools are necessary. You can disassemble scooter for transport.
Remove seat by releasing Seat Rotation Lever(A)and then lift off. (See Fig. 4)
gently lift rear storage cover (B).
(See Fig. 5)
Unscrew controller wiring harnesses (C). (See Fig. 6)
Remove rear shroud off of the scooter (D). (See Fig. 7)
Figure 4
Figure 4
Figure 5
Figure 5
(A)
(B)
Figure 6
Figure 6
Figure 7
Figure 7
(E)
(D)
(G)
(F)
Remove battery fixing Velcro (E). (See Fig. 8)
Unplug both battery harnesses (F) and remove batteries (G). (See Fig. 9)
Figure 9
Figure 9
Figure 8
Figure 8
