Coas
tal Amusements Inc. | Ring Toss
9
ASSEMBLY
1. Conso

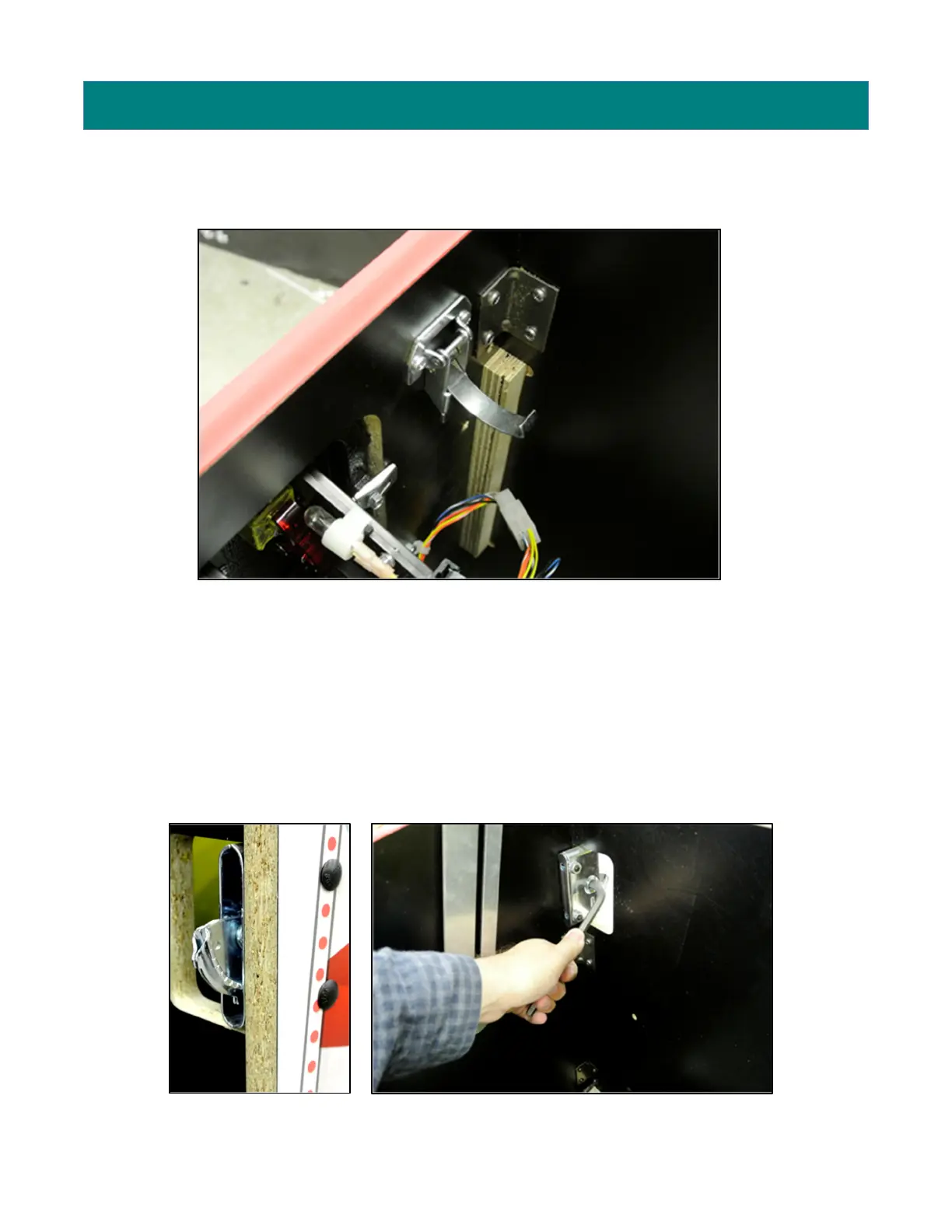

le: To open the console, unlock the ticket and coin doors, reach in and up to release
the latches located inside front right and left respectively (see picture below).
Once released, lift the console lid to open. The wire harness connecting the front console
to the main body has multiple connections. The connectors for optical sensors are labeled
A, and B. The connectors are such that no accidental mismatching should occur. Power is
run through a separate hole in the console.
The console attaches to the game using 4 Southco latches (2 high, 2 low, left and right). To
secure the console to the main body, turn the latches with 5/16” Allen wrench (see pictures
for reference).
