46577 ENGLISH
CONTROLS AND FEATURES

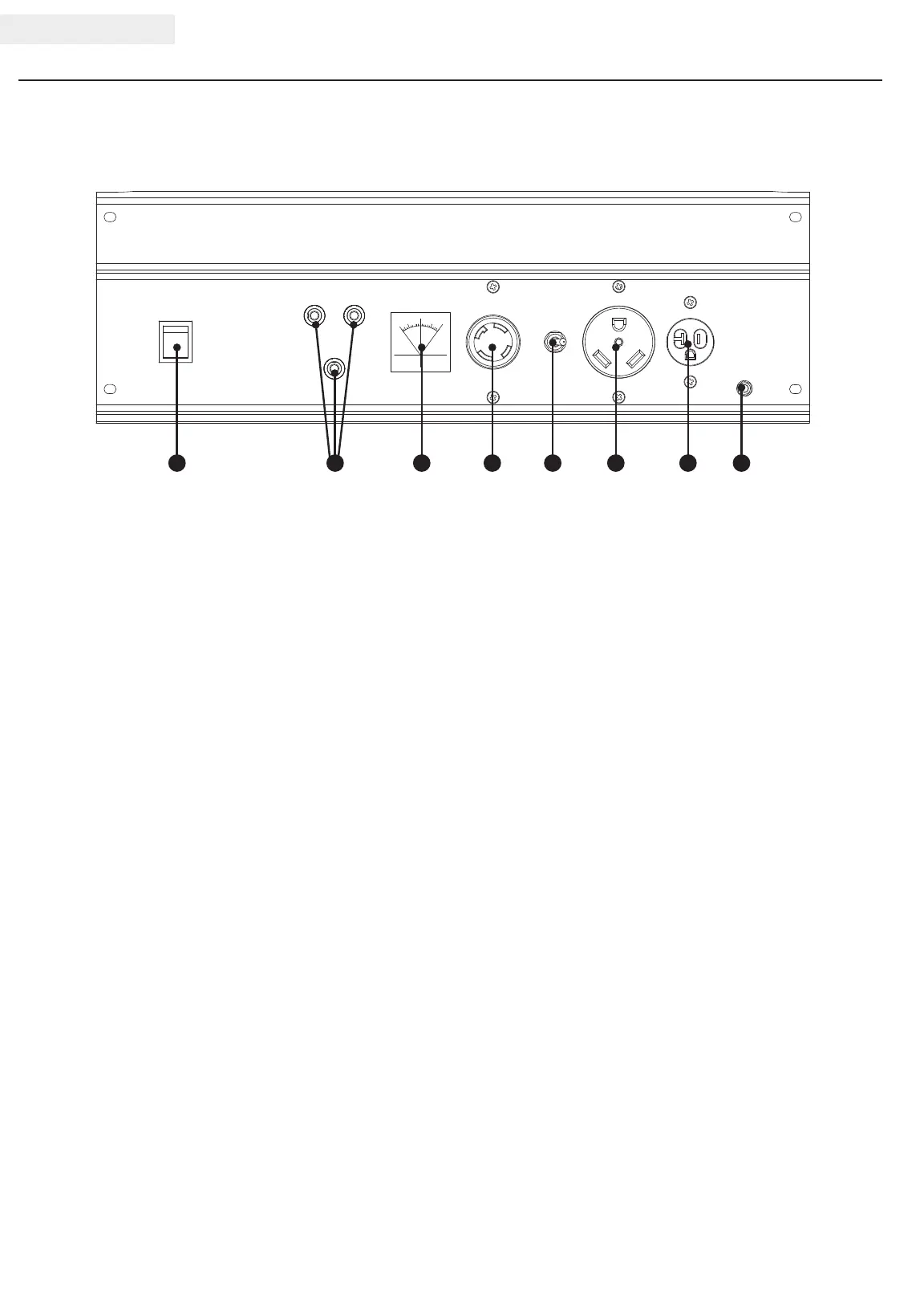

Power Panel
(1) Engine Switch – Used to start or stop the
generator.
(2) Circuit Breakers – Protects the generator against
electrical overloads.
(3) Voltmeter – Used to display generator output
voltage.
(4) 120/240 Volt AC, 30 Amp Twist-Lock Receptacle
(NEMA L14-30R) – May be used to supply
electrical power for the operation of 120/240 Volt
AC, single phase 60 Hz electrical loads.
(5) Voltage Switch – Choose between 120 Volts or
240 Volts opportation
(6) 120 Volt AC, 30 Amp Receptacle
(NEMA TT-30R) – May be used to supply electrical
power for the operation of 120 Volt AC, single
phase 60 Hz electrical loads.
(7) 120 Volt AC, 20 Amp Receptacle (NEMA 5-20R)
– May be used to supply electrical power for the
operation of 120 Volt AC, single phase 60 Hz
electrical loads.
(8) Ground Terminal – Consult an electrician for local
grounding regulations.
61 4 53 7 82
