Lifting From the Rear
The rear lifting points can be accessed from either
side of your vehicle, in front of the rear tires.

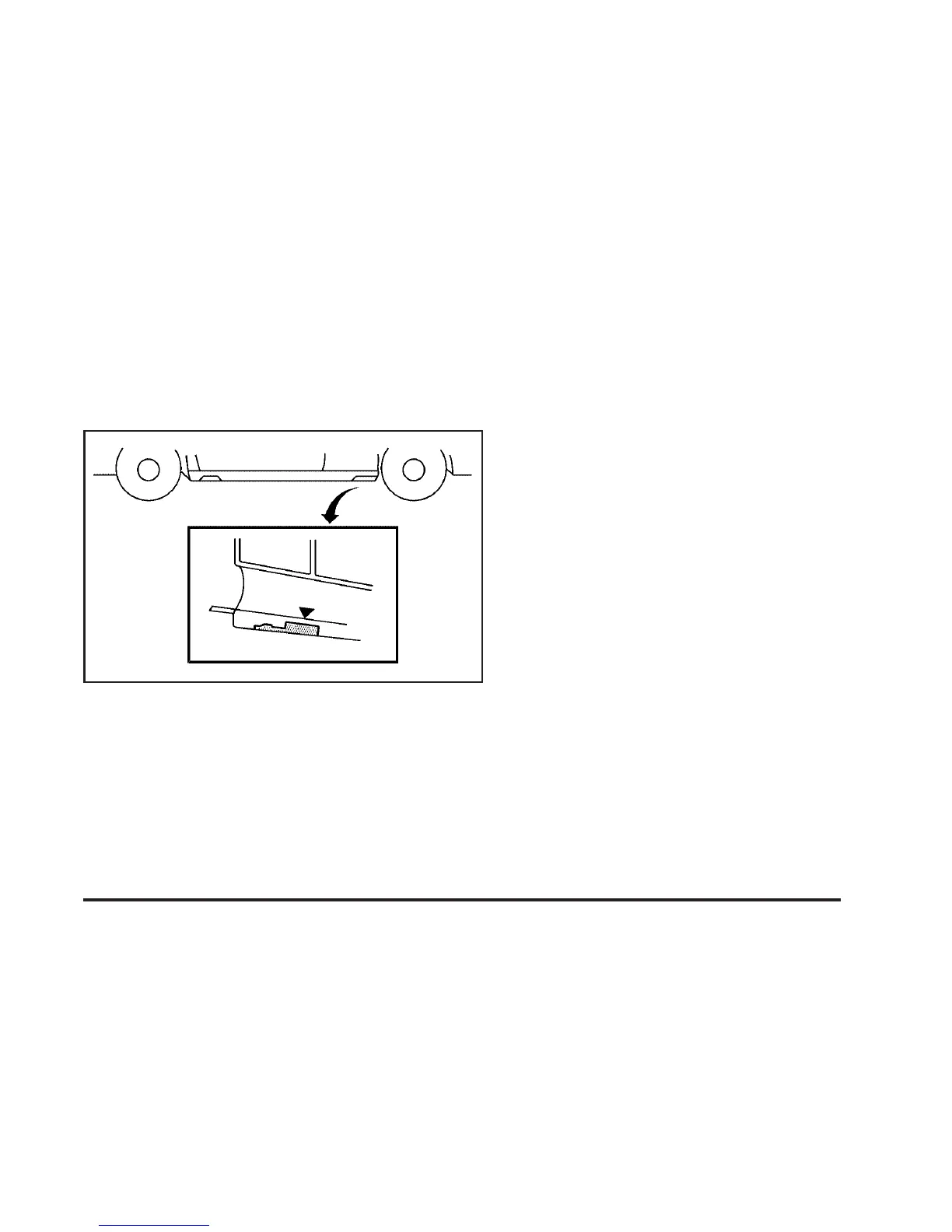

1. Locate the rear lifting points using the
diagram shown above and corresponding
triangular-shaped hoisting notches located in
the plastic molding. The rear lifting location
is about 7 inches (17.8 cm) from the
front edge of the rear wheel well.
2. Be sure to place a block or pad between the
jack and the vehicle.
3. Lift the vehicle with the jack, making sure the
jack is centered on the rear lifting point.
See Doing Your Own Service Work on page 333
for additional information.
421
