Cadillac Escalade 2021 - Instrument Panel Fuse Block

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13690472) - 2021 - CRC - 5/15/20
380 VEHICLE CARE
Fuses Usage
73 Left trailer stop
turn lamp
74 TIM 2
75 DEFC
76 ELEC RNG BDS
78 ECM
79 –
80 Cabin cool
pump 17W
81 Right trailer stop
turn lamp
82 TIM 1
83 FTZM
84 Trailer battery
85 Engine
86 ECM
87 Injector B even
88 02 B sensor
89 02 A sensor
90 Injector A odd
91 ECM throttle control
Fuses Usage
92 Cool fan clutch
AERO shutter
Relays Usage
5 –
18 DC/AC inverter
23 –
35 Park lamp
36 Run/Crank
43 Secondary axle
motor
59 A/C clutch
64 Starter motor
70 Starter pinion
77 Powertrain
Instrument Panel Fuse
Block

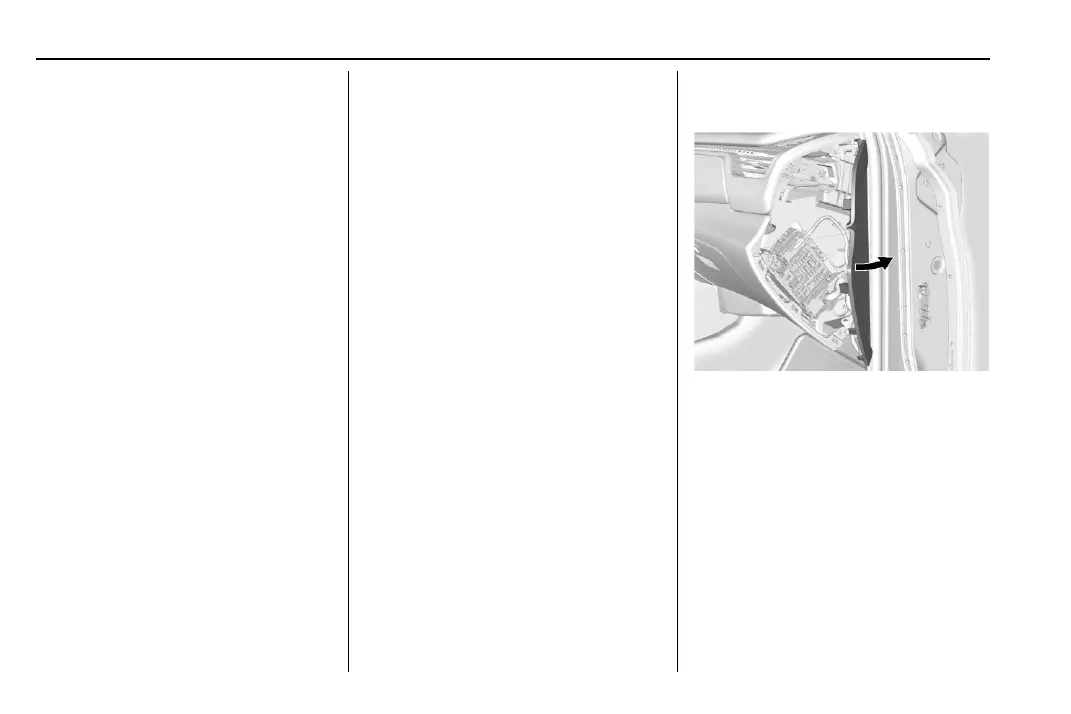

The right instrument panel fuse block
access door is on the passenger side
edge of the instrument panel.
Pull off the cover to access the fuse
block.
