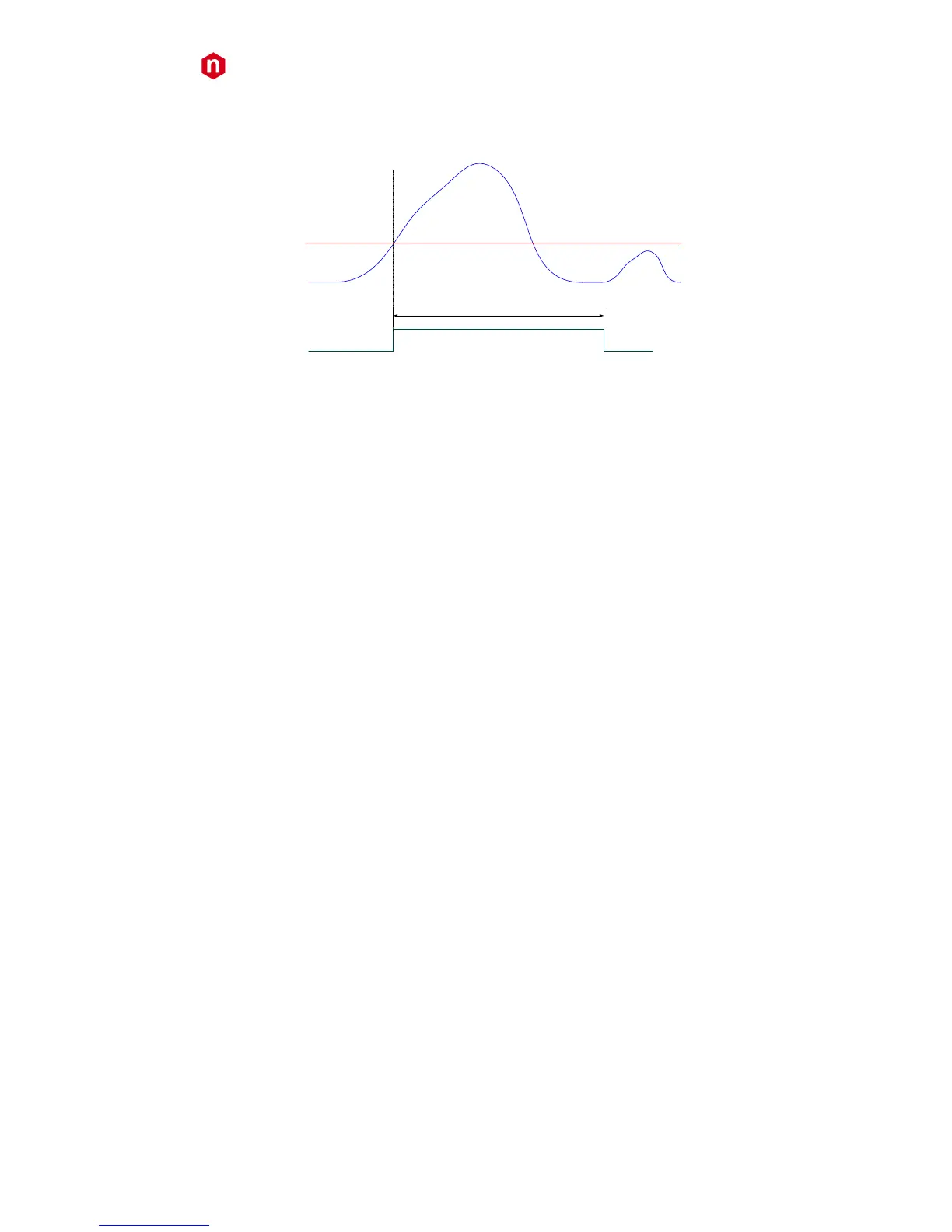

▪ a pulse of configurable width (see Fig. 9.12). The width parameter can be set at register address 0x1n70.
CH0 IN
THRESHOLD
pulse [0]
WIDTH
Fig. 9.12: Channel pulse signal
The FPGA, by register address 0x1n84, can be programmed in order the trigger request for a couple of adjacent
channels to be the
AND,
ONLY CH(n),
ONLY CH(n+1),
OR
of the relevant self-trigger signals (see Fig. 9.10).
Default Conditions: by default, the FPGA is programmed so that the trigger request is the OR of two pulses of 4ns-
width.
Note: the above described configurability of both the self-trigger logic and the trigger request logic are supported only
by AMC FPGA firmware releases > 0.1.
Previous firmware don’t implement the register address 0x1n84 as well as the 0x1n70, the self-trigger is intended only
as the over/under threshold signal and a trigger request is intended only as the OR of the self-triggers couple.
