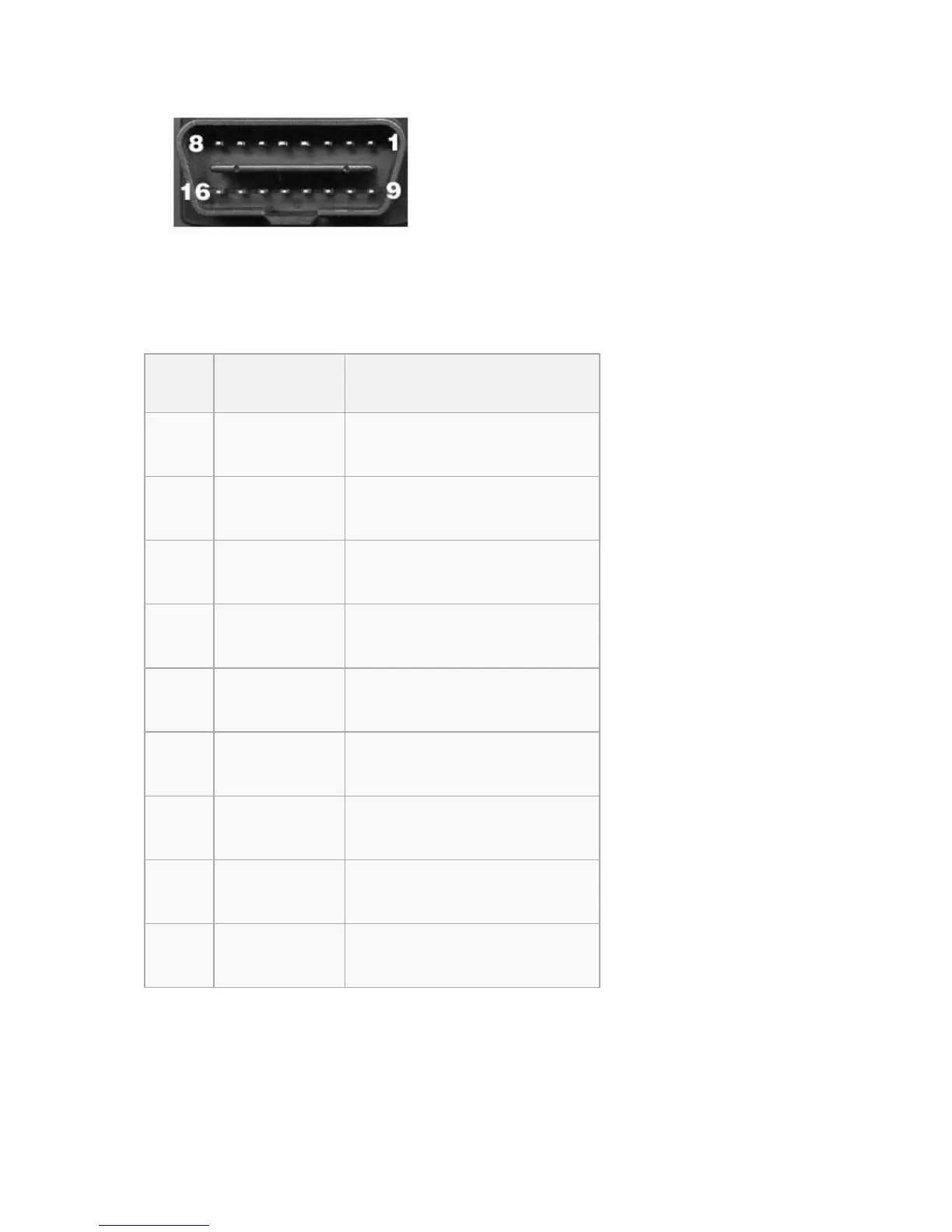

Please note that only 9 out of the 16 connector pins are actually populated on the connector.
Pin
Signal Name
Description
2
Bus+ Line
SAE-J1850 PWM and SAE-1850 VPW
4
Chassis Ground
Ground
5
Signal Ground
Ground
6
Can High
ISO 15765-4 and SAE-J2284
7
K line
ISO 9141-2 and ISO 14230-4
10
Bus- Line
SAE-J1850 PWM and SAE-1850 VPW
14
Can Low
ISO 15765-4 and SAE-J2284
15
L line
ISO 9141-2 and ISO 14230-4
16
Battery Power
Power
