3.2.2 Serial Adapter

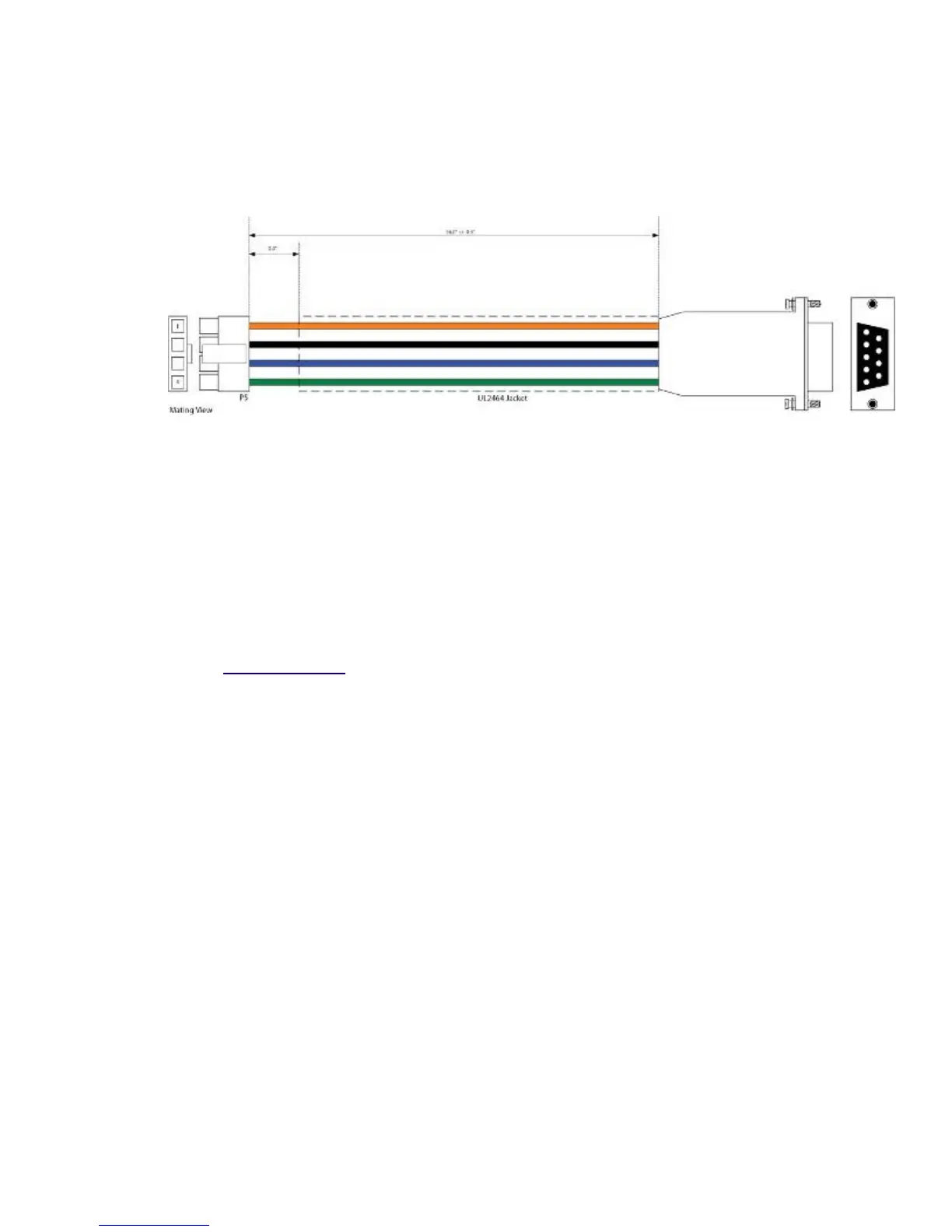

LMU Serial Cable (Part Number 133337)
This is the standard serial cable used with most LMU products.
LMU™ Serial Adapter
It only connects to the LMU-2000™ products thru an adapter (i.e. the 5C332).
Serial Cable Adapter (Part Number 5C332)
This accessory allows users to connect the standard LMU serial cable to the LMU-2000™.
3.2.3 Accessories
See the Harness Diagrams page for more information on LMU accessories, and supported products
table.
3.3 I/O Descriptions
The LMU-3030™ provides the following Inputs for scripting purposes, but there are no selectable
inputs on the device
Digital Inputs
 Input 0: Ignition Sense
 Input 1: Motion Sensor (low = no motion, high = motion)
Analog to Digital Inputs
 A/D 0: Vin
 A/D 1: uP Temp
 A/D 2: Vref
