CELIO
NOTE: All dimensions are approximate; measure your spa before making critical design or pathway decisions.
NOTE: Watkins Manufacturing Corporation recommends that the CELIO be installed on a minimum (10 cm) thick reinforced concrete pad or structurally
sound deck able to support the “dead weight” found in the spa specification chart.
IMPORTANT: The CELIO must not be shimmed in any manner.
81.5” (207 cm)
84.0” (213.5 cm)
65.0”
(165 cm)
62.25”
(158 cm)
4.0” (10 cm)
30.0”
(76.0 cm)
27.0”
(68.5 cm)
1.5” (4 cm)
6.5” (16.5 cm)
19”
(48.5 cm)
DOOR
23.125"
(58.7 cm)
DOOR
26"
(66.0 cm)
DOOR
23.125"
(58.7 cm)
ELECTRICAL
CUTOUT
ELECTRICAL
CUTOUT
AIR VENT
DO NOT
BLOCK
ELECTRICAL CUTOUT
(BOTH SIDES)
DRAIN
DOOR SIDE

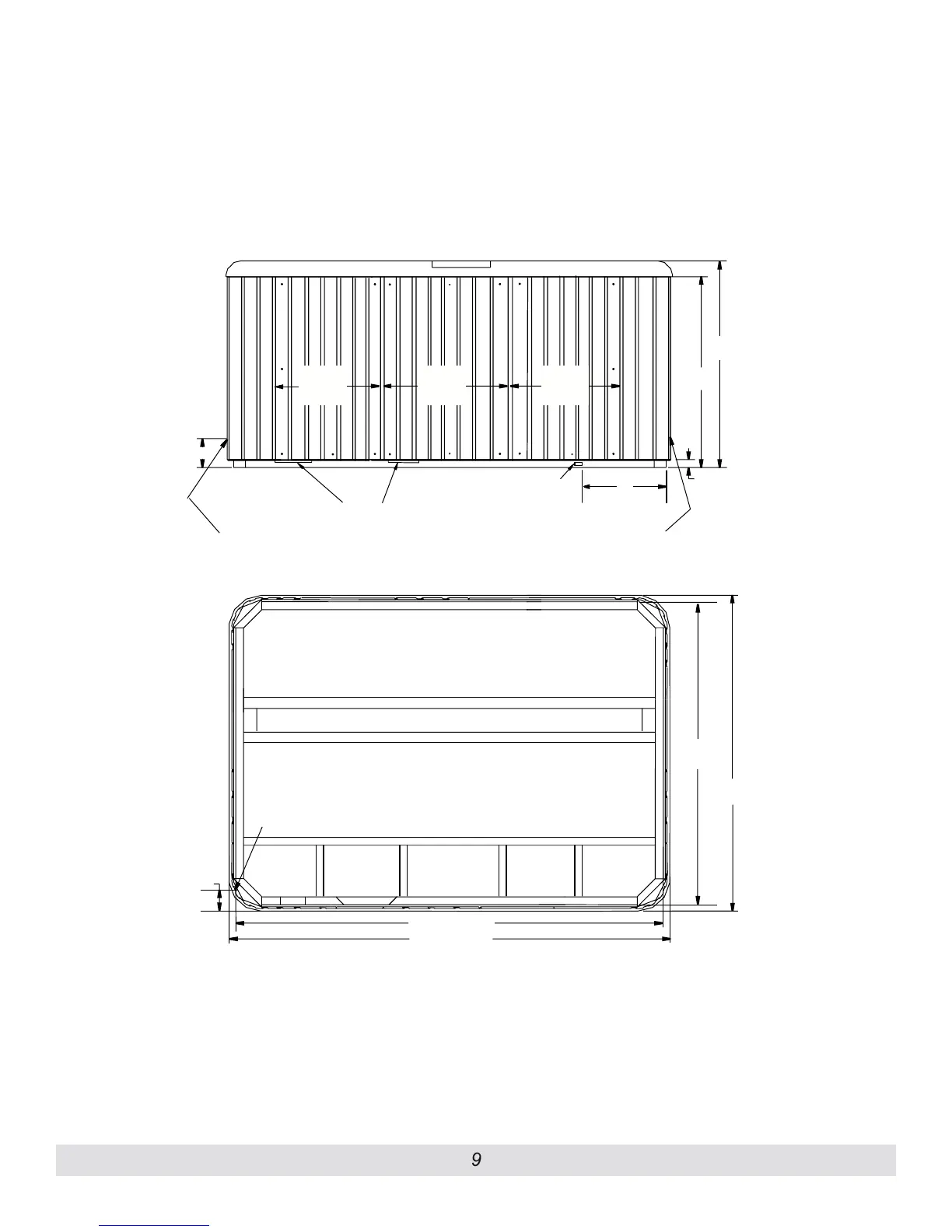

UPSIDE DOWN VIEW OF SPA
FRONT
VIEW
