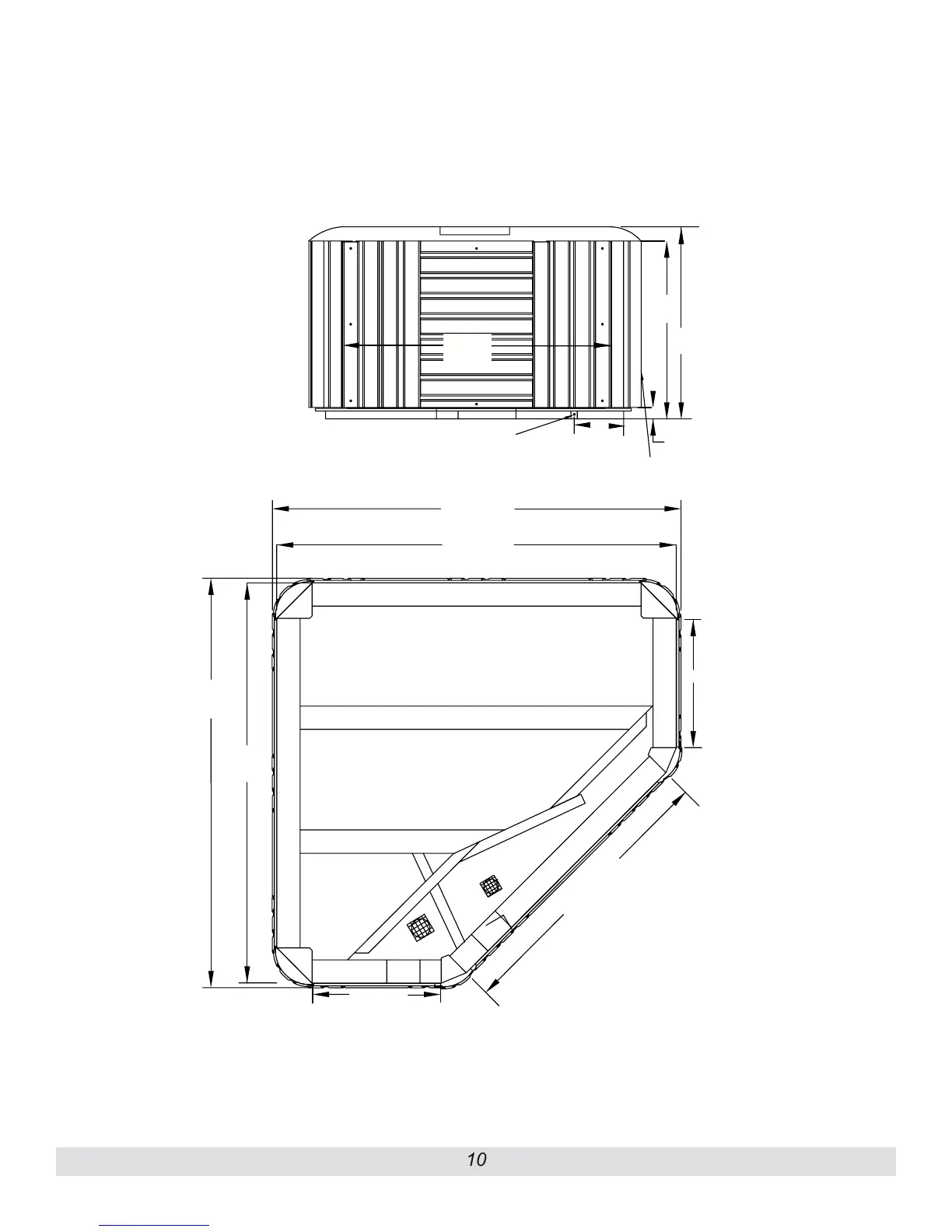

NOTE: All dimensions are approximate; measure your spa before making critical design or pathway decisions.
NOTE: Watkins Manufacturing Corporation recommends that the AVENTINE be installed on a minimum (10 cm) thick reinforced concrete pad or structurally
sound deck able to support the “dead weight” found in the spa specification chart.
IMPORTANT: The AVENTINE must not be shimmed in any manner.
29”
(74cm)
25”
(64cm)
2.5” (6.5cm)
11”
(28cm)
63” (160cm)
59.25” (150cm)
59.25”
(150cm)
63” (160cm)
19.5” (50cm)
42.5” (108cm)
19.5” (50cm)
ELECTRICAL
CUTOUT
DRAIN
FRONT
VIEW
DOOR SIDE
DOOR
40"
(102.0 cm)
UPSIDE DOWN VIEW OF SPA
Installation
