Page 35
NOTE: WATKINS WELLNESS recommends that the TAHITIAN be installed on a minimum 10 cm thick reinforced concrete pad or structurally sound deck able to support the
“dead weight” found in the spa specification chart.
WARNING: The TAHITIAN must not be shimmed in any manner.
TAHITIAN & FLORENCE

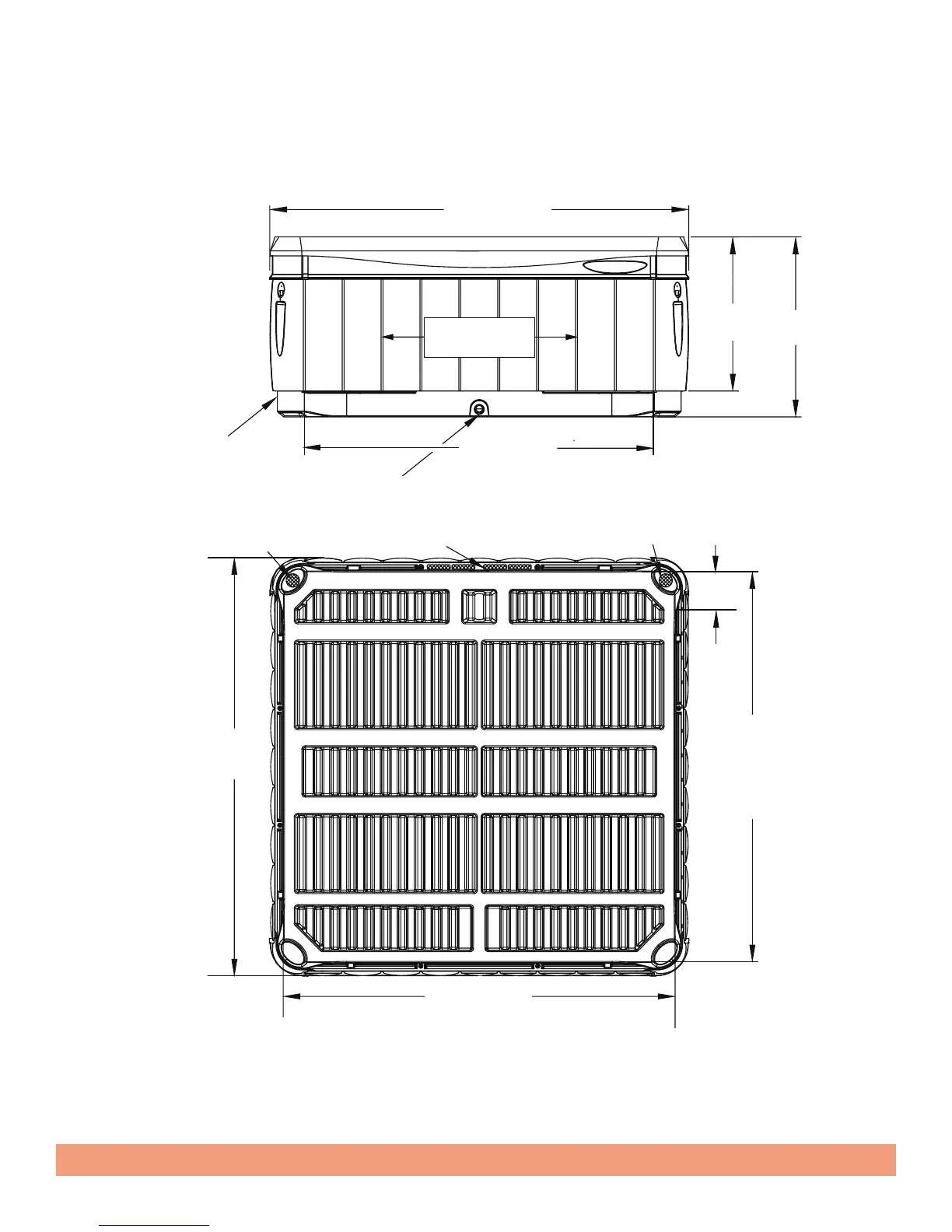

Dimensions
NOTE: All dimensions are approximate; measure your spa before making
critical design or pathway decisions.
31”
(79 cm)
36”
(91 cm)
78.25” (199 cm)
78.25”
(199 cm)
69.5” (177 cm)
37.875” (96 cm)
13”
(33 cm)
84”
(213 cm)
Cabinet
(Front View)
Door Opening
Front Panel
Drain
(Center of Spa)
(Bottom View)
Air Vent
Do Not Block
Air Vent
Do Not Block
Air Vent
Do Not Block
Base Pan
Side Walls
DOOR SIDE
Electrical Cut-Out
(both sides)
Electrical Cut-Out
(both sides)
4" (10 cm) up from
bottom of spa
Base Pan Side Walls
Installation Instructions
