Page 36
Installation Instructions
PROVENCE

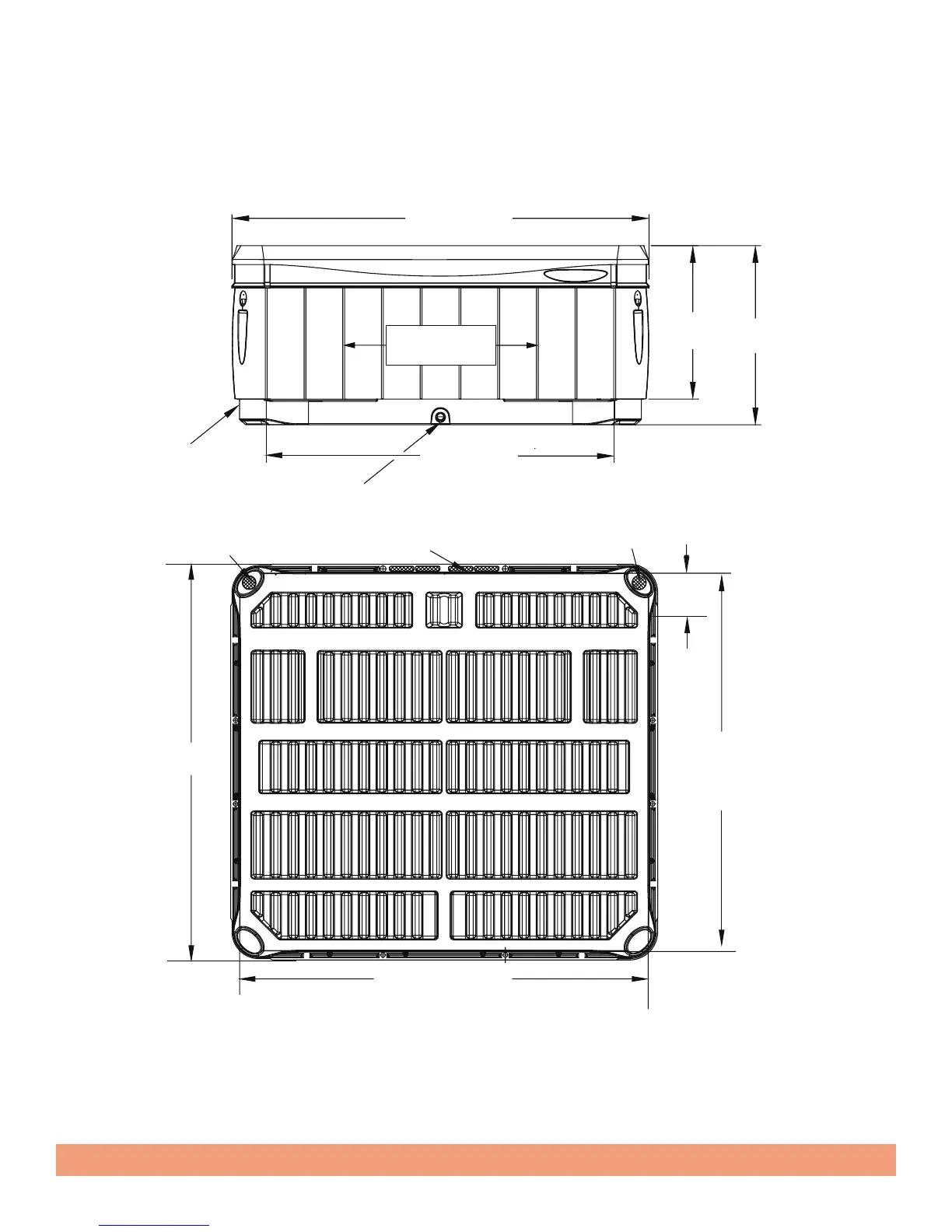

Dimensions
NOTE: All dimensions are approximate; measure your spa before making
critical design or pathway decisions.
NOTE: WATKINS WELLNESS recommends that the PROVENCE be installed on a minimum 10 cm thick reinforced concrete pad or structurally sound deck able to support
the “dead weight” found in the spa specification chart.
WARNING: The PROVENCE must not be shimmed in any manner.
84.0” (213 cm)
31”
(79 cm)
35”
(89 cm)
78.5” (199 cm)
71.85”
(182.5 cm)
69.5” (177 cm)
37.875” (96 cm)
13”
(33 cm)
78”
(198 cm)
Door Opening
Drain
(Center of Spa)
Electrical Cut-Out
(both sides)
4" (10 cm) up from
bottom of spa
Base Pan
Side Walls
Base Pan Side Walls
Air Vent
Do Not Block
Air Vent
Do Not Block
Air Vent
Do Not Block
DOOR SIDE
Electrical Cut-Out
(both sides)
(Front View)
(Bottom View)
Cabinet
