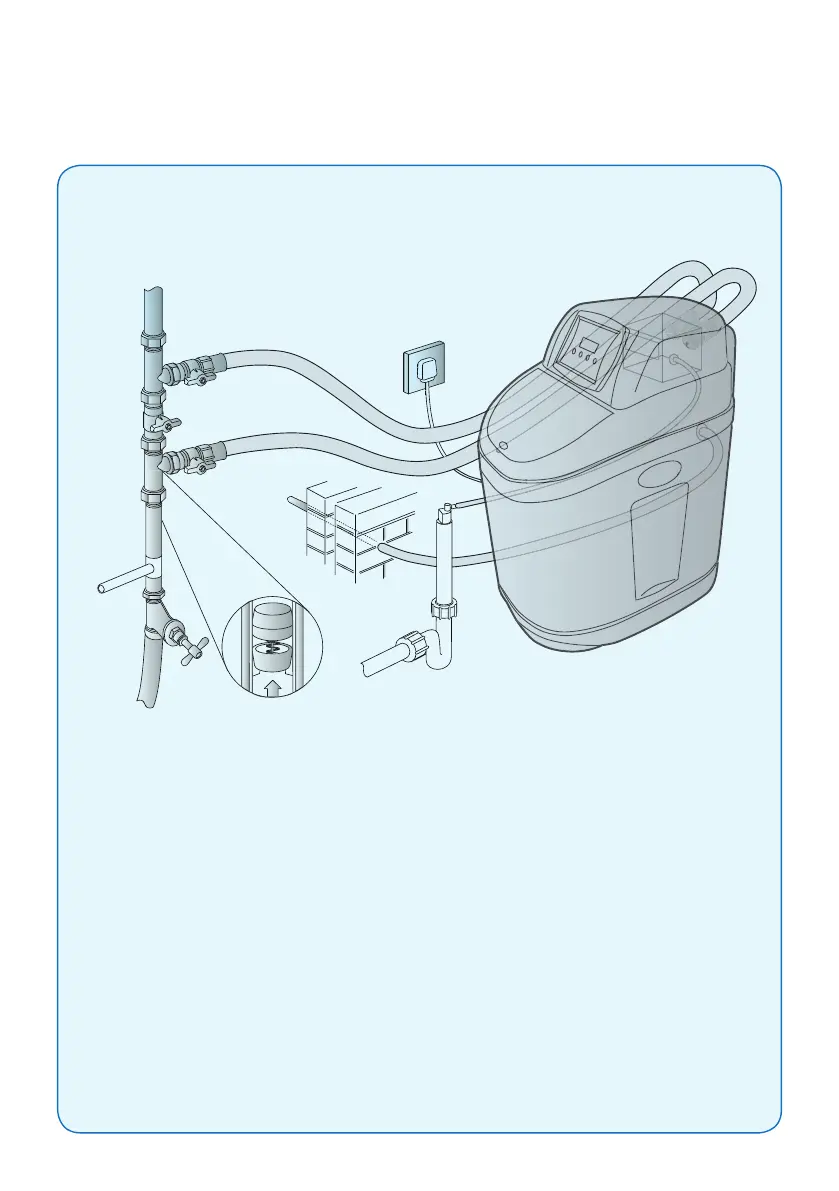

CalMag CalSoft Mini - For the installer - Typical Installation

For the installer - Typical Installation
For further information please refer to the WRAS information and guidance note:
No 9-07-01 titled:
Information for installation of Ion Exchange Softeners for Systems Supplying Water
for Domestic Purposes.
(www.wras.co.uk)
- 10 -
Outlet (open)
Overow
Bypass (closed)
Inlet (open)
20mm Air Gap
Run to external gully
Drain
Outlet
Inlet
Overow
elbow
Drainage
elbow
Control valve
Stop tap
Power
Non-return
valve
Hardwater
supply
CalSoft Mini, Midi & Maxi
5. Installation guidelines
