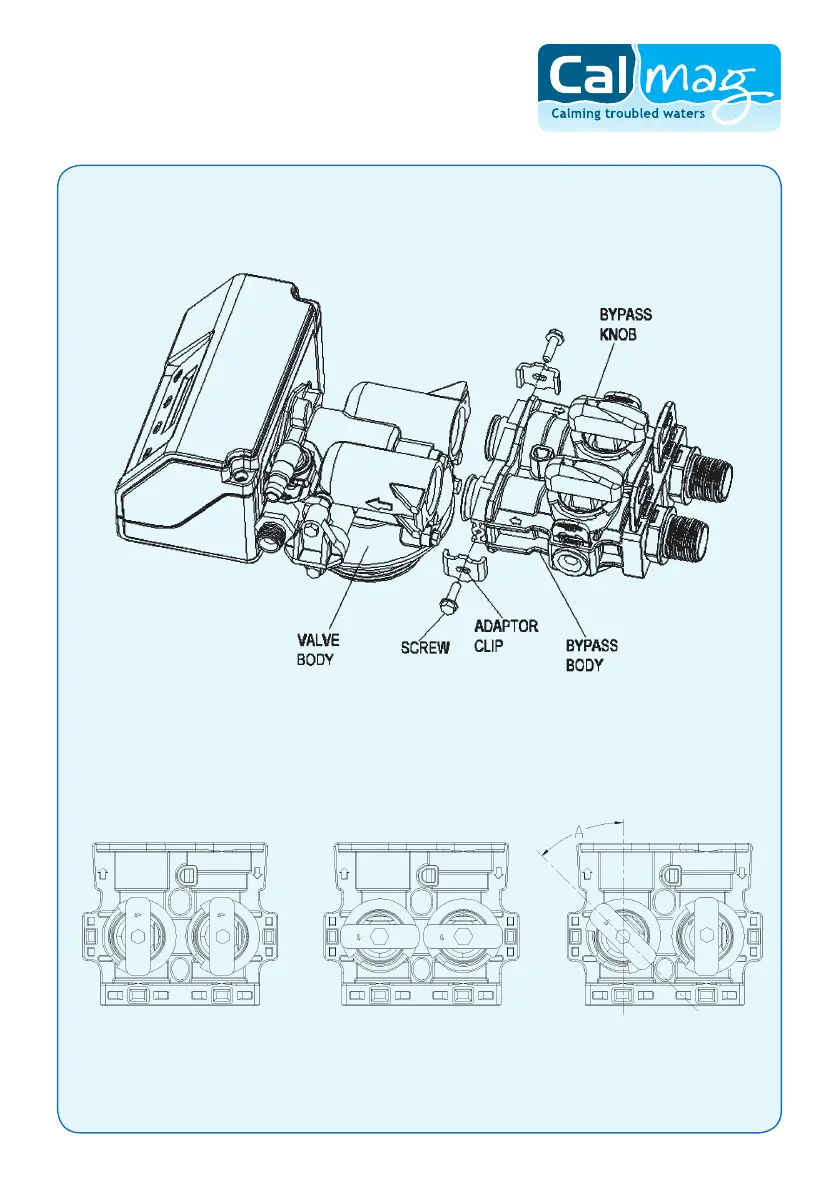

Bypass Assembly
The bypass valve is provided with various functions such as bypass and water hardness adjustment.
Different angles of bypass knob have different functions (see below). The larger angle (value A),
the higher water hardness in hardness adjustment position.
- 11 -
CalSoft Mini, Midi & Maxi
6. Programming
Service Position Bypass Position Hardness Adjustment
Position
