COLD WATER INLET
TO COMPLY WITH U.K. WATER SUPPLY
REGULATIONS A SINGLE CHECK VALVE MUST
BE FITTED. BEFORE CONNECTING, THE SUPPLY PIPE
MUST BE THOROUGHLY FLUSHED OUT TO ENSURE THAT
FOREIGN MATTER DOES NOT BLOCK OR ENTER THE
SOLENOID VALVE
The boiler must be connected to a potable water supply using the
food grade hose where provided, or rigid 15mm pipe in a manner
which complies with UK water regulations via an appropriate
isolating valve. Always use the new hose supplied (counter-top
models only). Do not reuse old hoses. The supply must provide a
constant pressure of between 20 KPa and 1000 KPa (0.2 to 10 Bar).
If the water supply contains excessive solids in suspension it is
recommended that a fine mesh “in line” water filter is fitted in the
pipe work. Failures due to scale and sediment are not covered by
the warranty.

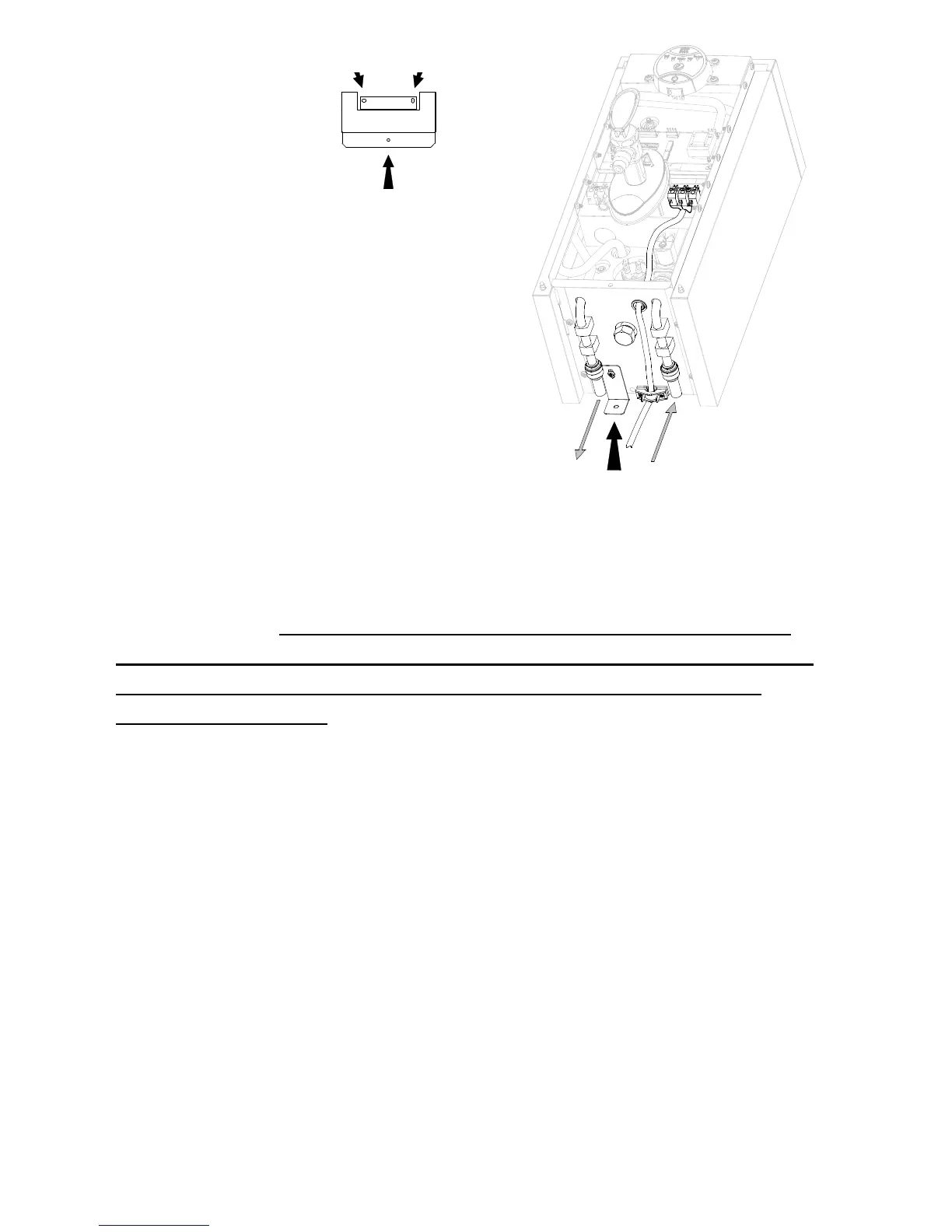

3 point fixing wall bracket
.for wall mounted range
Hang the boiler on the wall bracket
and secure into place with 4th fixing.
The electrical cable should be
routed as shown.
The use of 6mm Rawl-Bolts is
recommended to secure the
bracket to a wall of appropriate
construction to support the
working weight of the boiler.
Cold water
inlet
Vent &
overflow
4th fixing
