Page 6
ACCESS INSTRUCTIONS

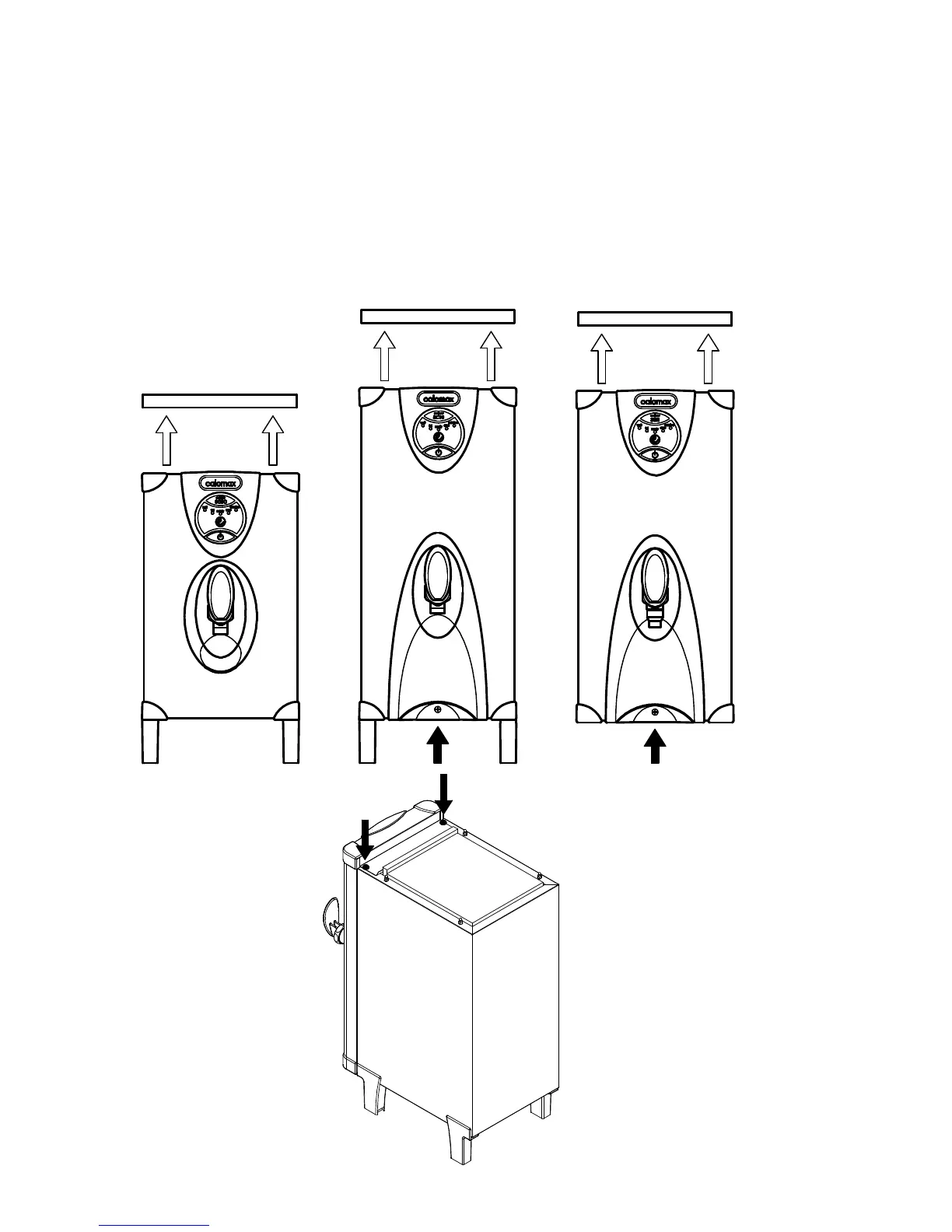

Access to the internals of the machine is gained by the removal of
the front panel. Prise off the outercasing lid from its mounting clips.
remove the top two panel mounting screws, and the third bottom
mounting screw (where fitted). Remove the cover.
The 3C5C model does not have the third screw, it is fitted with two
more clips at the bottom of the panel which can be prised off.
