VENT & OVERFLOW
The vent / overflow pipe must be extended and laid with a
continuous
fall,
discharging to a safe and visible point. The pipe should not be
directly connected to a closed waste, as taste problems may occur and
should never be allowed to become blocked or restricted.15mm copper or
‘Speedfit’ pipe should be used. The drip tray kit provided with the counter
top models allow the option of plumbing the overflow pipe to discharge
into the drip tray and then plumbing the drip tray to a safe and visible
point of discharge. If the machine is operated without the overfill pipe
being extended as advised, any subsequent damage incurred will be the
responsibility of the installer.

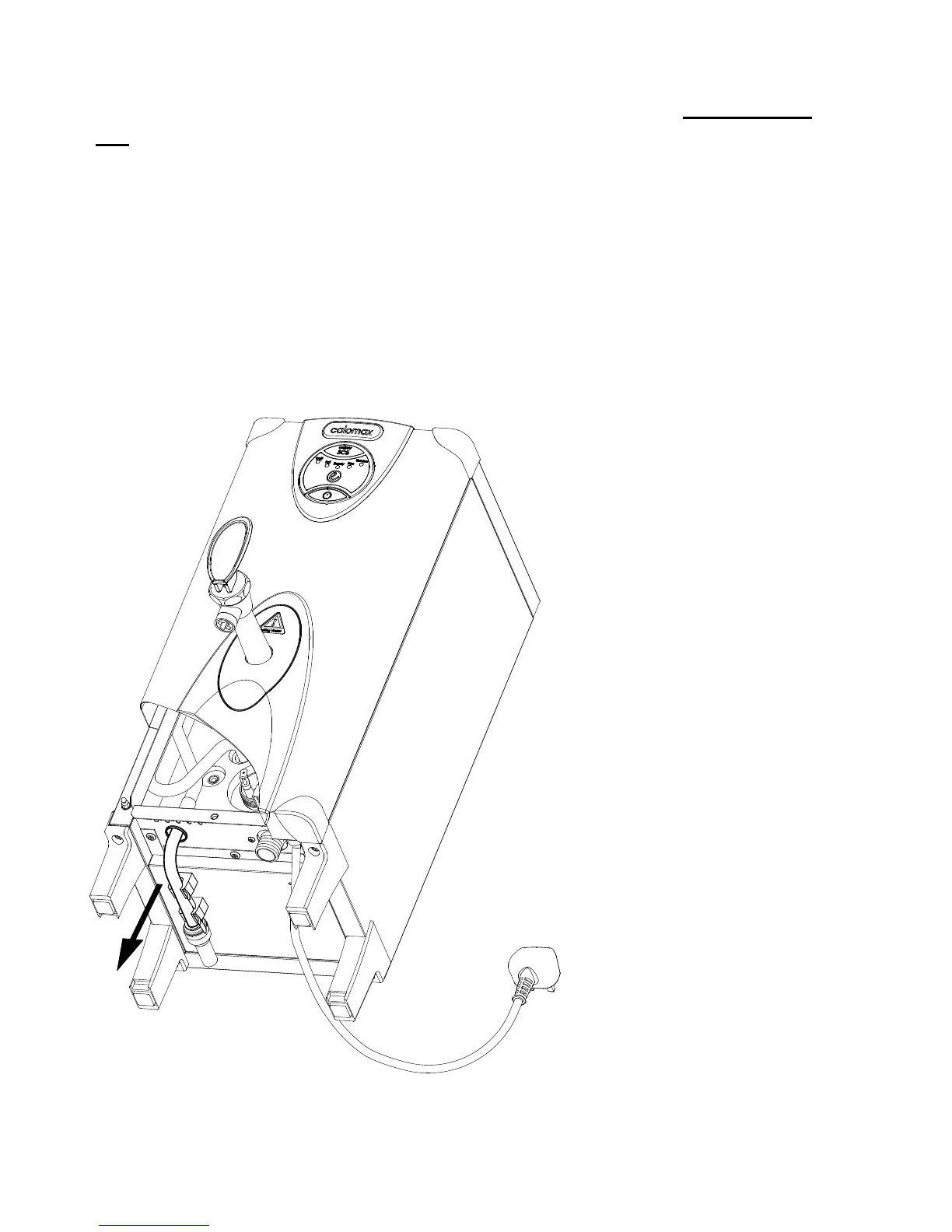

If the boiler is required to
drip or overflow into the
drip tray, the configuration
of pipework may be altered
as follows. Remove the
machine front panel and
unclip the pipework elbow.
Carefully pull the elbow
in the direction of the
arrow, out of the silicone
connecting tube on the
end of the main water pipe.
The silicone connecting
tube will now direct water
into the drip tray.
