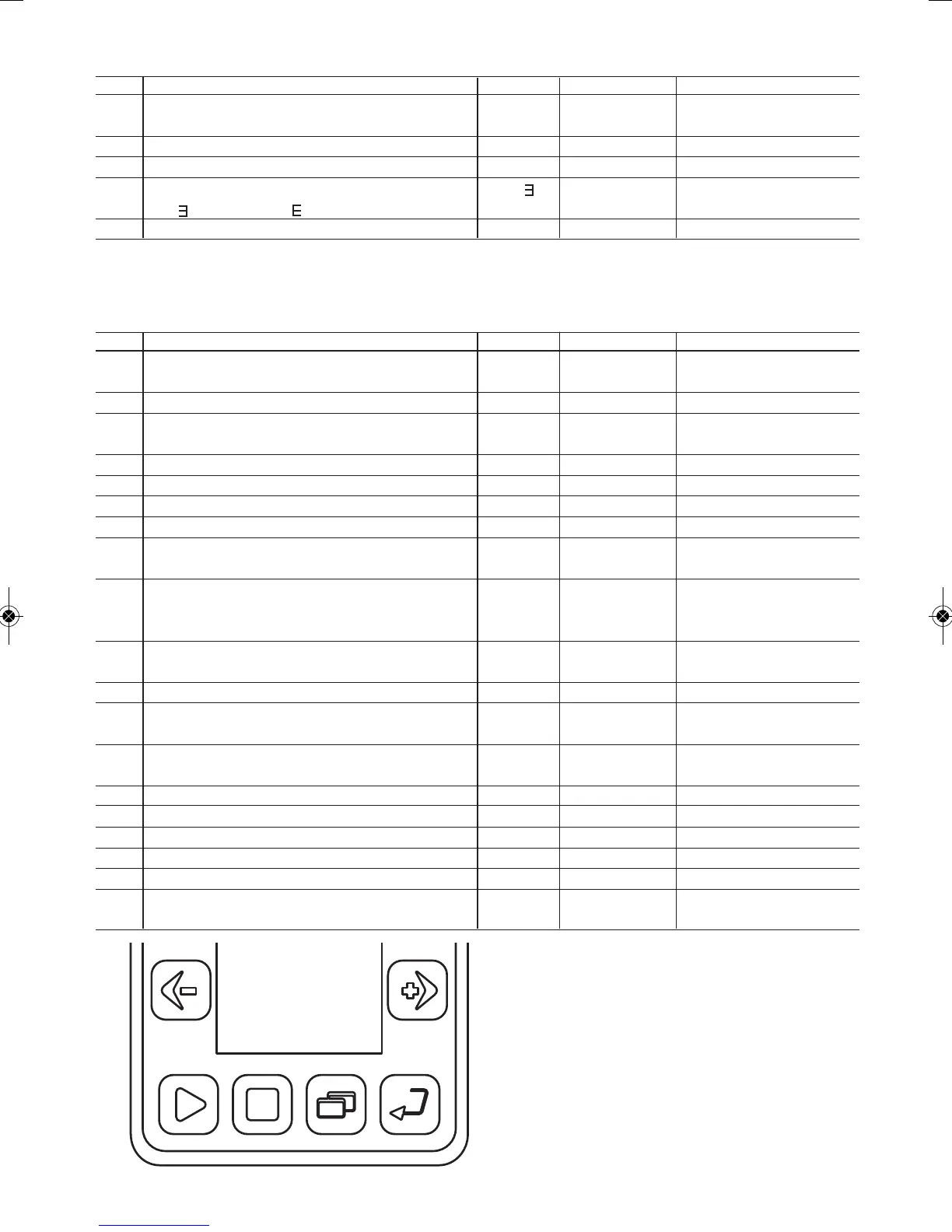

9.2.1. UP – User settings
N° Description Standard Modifications Note
UP01 restart mode power failure rA
[rA = automatic; rM = manual]
UP02 Nominal pump current (A) 0,1
UP03 Nominal pump frequency (Hz) 50
UP04 Direction of rotation ---
[ --- = std rotation; --- = inverted rotation]
UP05 Set point pressure (bar) 1,5
9.2.2. AP – Advanced settings
To enter password is required (see paragraph 10.1.)
N° Description Standard Modifications Note
AP01 Pressure transducer set-up (bar) 10
[sensor full-scale]
AP02 Ramp down (s) 3
AP03 Ramp-up (s) 2 MT
(fixed value for MM) 0 MM
AP04 Time before stop (s) 30
AP05 Dry-run time (s) 10
AP06 First dry-run time (s) 60
AP07 Dry-run pressure (bar) 1,5
AP08 System dynamic 3
[1 = fast dynamic; 5 = slow dynamic]
AP09 Cascade mode oFF
[oFF; UU = cascade mode with double inverter;
UF = cascade mode with an inverter]
AP10 Master/Slave setting SLA
MAS = master; SLA = slave
AP11 Reset to factory set-up
AP12 Digital input activation 1
[0 = oFF; 1 = no; 2 = nC]
AP13 Digital output activation 0
[0 = oFF; 1 = on; 2 = no; 3 = nC]
AP14 Restart fall pressure set-up (bar)
AP15 Pump address SLA1
AP16 Cascade mode start fall pressure set-up (bar) 0,3
AP17 Cascade mode restart delay (s) 10
AP18 Cascade mode fall pressure limit set-up (bar) 0,6
AP19 Digital input delay time (s) 30
[float switch delay time]
24
