Calrec Argo S - Page 33

33

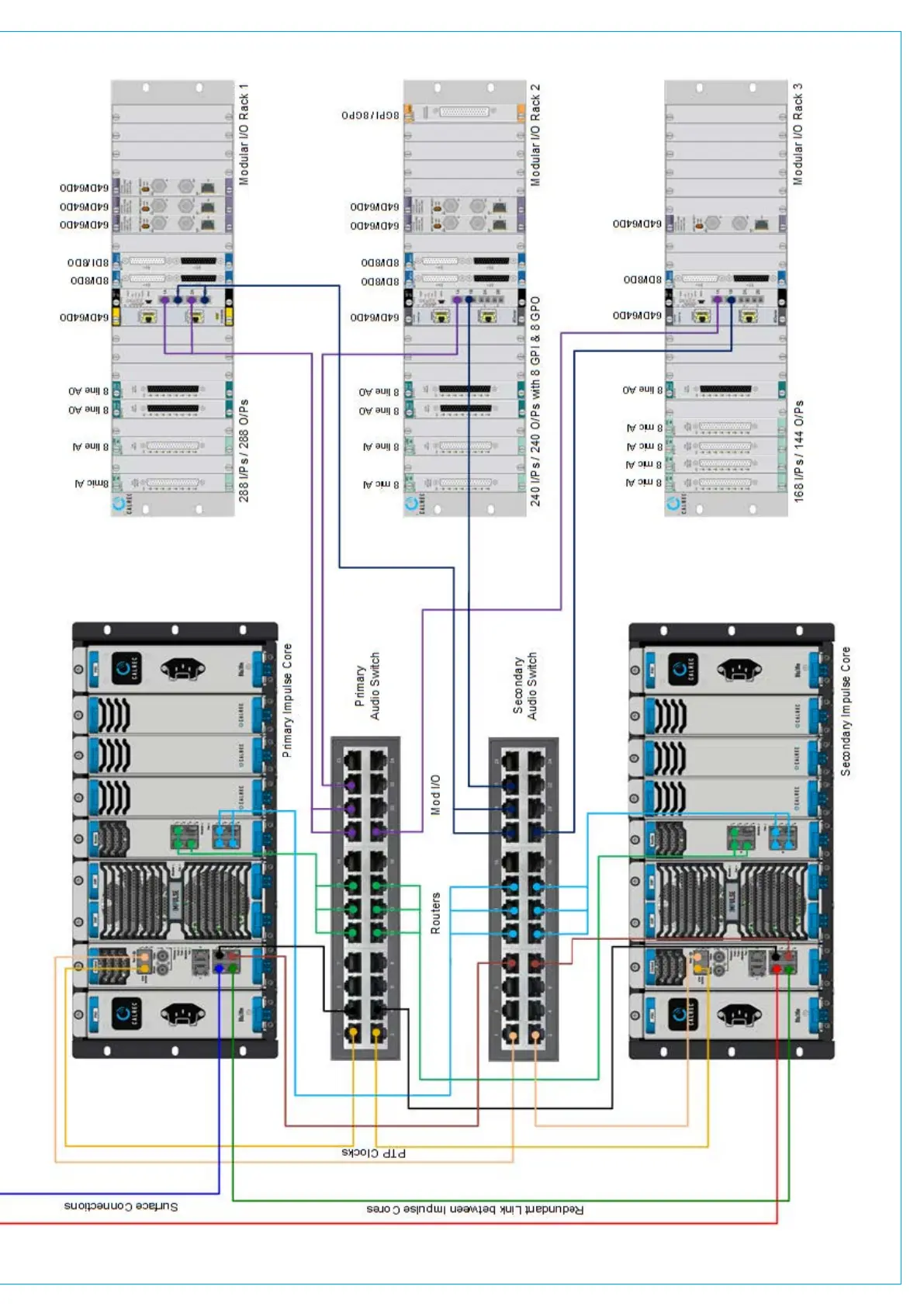

PTP clocks may be from external sources
and connected into the PTP switches
PTP Clocks
Pri 192.168.30.150
Sec 192.168.31.150
VLAN 30
192.168.30/24
VLAN 31
192.168.31/24
Router Addresses
Pri 192 .168.30.111-113
Sec 192.168.31.111-113
Router Addresses
Pri 192.168.30.211-213
Sec 192.168.31.211-213
Modular I/O Addresses Pri 192.168.30.11 for 1A Sec 192.168.31.11 for 1B Pri 192.168.30.12 for 2A Sec 192.168.31.12 for 2B Modular I/O Addresses Pri 192.168.30.15 for 1A Sec 192.168.31.15 for 1B Modular I/O Addresses Pri 192.168.30.13 for 1A Sec 192.168.31.13 for 1B
PTP Clocks
Pri 192.168.30.250
Sec 192.168.31.250
Connect AoIP Pri 192.168.30.1
Connect AoIP Pri 192.168.31.1
