44 OMEGa with Bluefin
All of the system’s AES inputs and
outputs are provided on 36 way
female SCSI-style connectors on the
rear of the Processing Rack.
aEs Input and Output COnnECtIOns
AES Inputs and Outputs
The Processing Rack can house up to 4
AES I/O cards, each of which provides
32 AES inputs and 32 AES outputs. The
cards are inserted into the slots within the
rack, these are numbered 1-4.
Each slot has dedicated input and output
connectors on the rear of the rack, to
which the system’s AES inputs and
outputs are connected. Each of the
connectors provides 16 AES pairs.
Wide Area Interfaces
Of the 4 slots available, up to 3 can be
occupied by wide area bulk I/O (WAB)
cards, which are used to interface to MADI
units or a Hydra audio networking system.
If a slot is occupied by a bulk I/O or a WAB
I/O card, then the AES I/O connectors on
the rear of the Processing Rack belonging
to that slot are used to connect to the
equipment being interfaced.
AES
SLOT
AES INPUTS 1-16
CONNECTOR
AES INPUTS 17-32
CONNECTOR
AES OUTPUTS 1-16
CONNECTOR
AES OUTPUTS 17-32
CONNECTOR
1 J62 J41 J63 J42
2 J47 J49 J48 J51
3 J57 J67 J58 J69
4 J74 J76 J75 J77
SCSI - 36F
J120
ADC3 #1-8
SCSI - 36F
J121
ADC3 #9-16
SCSI - 36F
J101
ADC2 #1-8
SCSI - 36F
J103
ADC2 #9-16
SCSI - 36F
J95
ADC1 #1-8
SCSI - 36F
J96
ADC1 #9-16
SCSI - 36F
SCSI - 36F
J122 J111
ADC2 #17-24
ADC3 #17-24
SCSI - 36F
J97
ADC1 #17-24
SCSI - 36F
J127
ADC3 #25-32
SCSI - 36F
J115
ADC2 #25-32
SCSI - 36F
J104
ADC1 #25-32
POWER 8DV
SCSI - 36F
J87
DAC3 #1-16
SCSI - 36F
J82
DAC2 #1-16
SCSI - 36F
J66
DAC1 #1-16
SCSI - 36F
J74
AES4-IN #1-16
SCSI - 36F
J88
DAC3 #17-32
SCSI - 36F
J83
DAC2 #17-32
SCSI - 36F
J68
DAC1 #17-32
SCSI - 36F
J75
AES4-OUT #1-16
SCSI - 36F
J57
AES3-IN #1-16
SCSI - 36F
J58
AES3-OUT #1-16
SCSI - 36F
J47
AES2-IN #1-16
SCSI - 36F
J48
AES2-OUT #1-16
SCSI - 36F
J62
AES1-IN #1-16
SCSI - 36F
J63
AES1-OUT #1-16
SCSI - 36F
SCSI - 36F
J67 J49
AES2-IN #17-32
AES3-IN #17-32
SCSI - 36F
J41
AES1-IN #17-32
SCSI - 36F
J69
AES3-OUT #17-32
SCSI - 36F
J51
AES2-OUT #17-32
SCSI - 36F
J42
AES1-OUT #17-32
SCSI - 36F
J76
AES4-IN #17-32
SCSI - 36F
J77
AES4-OUT #17-32
9M D-TYPE
DEBUG 2
J113
9M D-TYPE
DEBUG 1
J108
RJ45-8V
FAST LINK
J112
9F D-TYPE
POWER 5DV
J100
CH
J99
L2
BNX
005-01
L1
BNX
005-01
J102
TTL SYNC I/P
H121
H122
METER DATAVIDEO SYNC I/P
J109
RJ45-8V
BNC
75
BNC
75
DC DIST
FAIL BOX

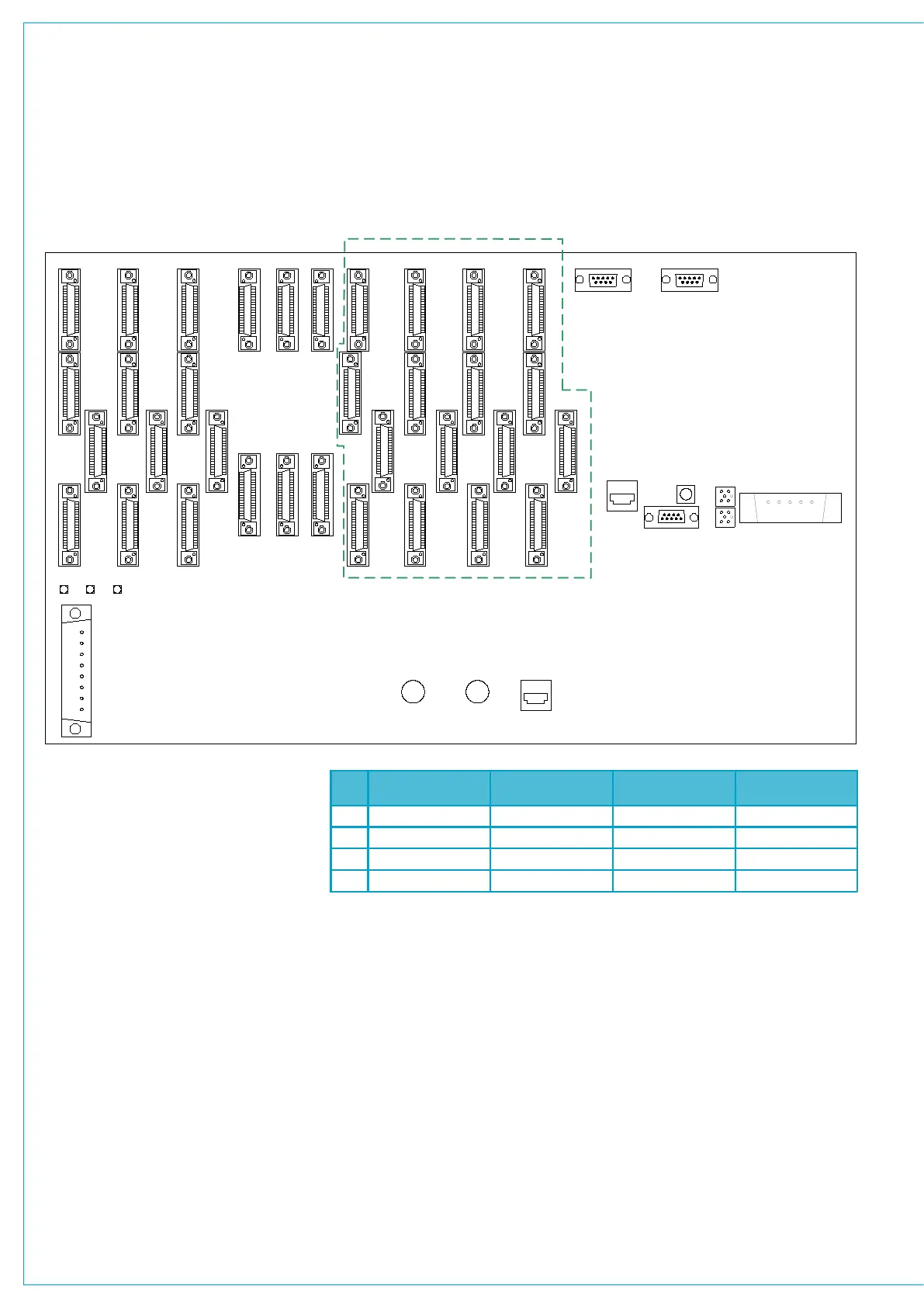

HN5638 PROCESSING RACK BACKPLANE
J32
J106
0L
J55
CH
J107
CR
AES Inputs and Outputs
