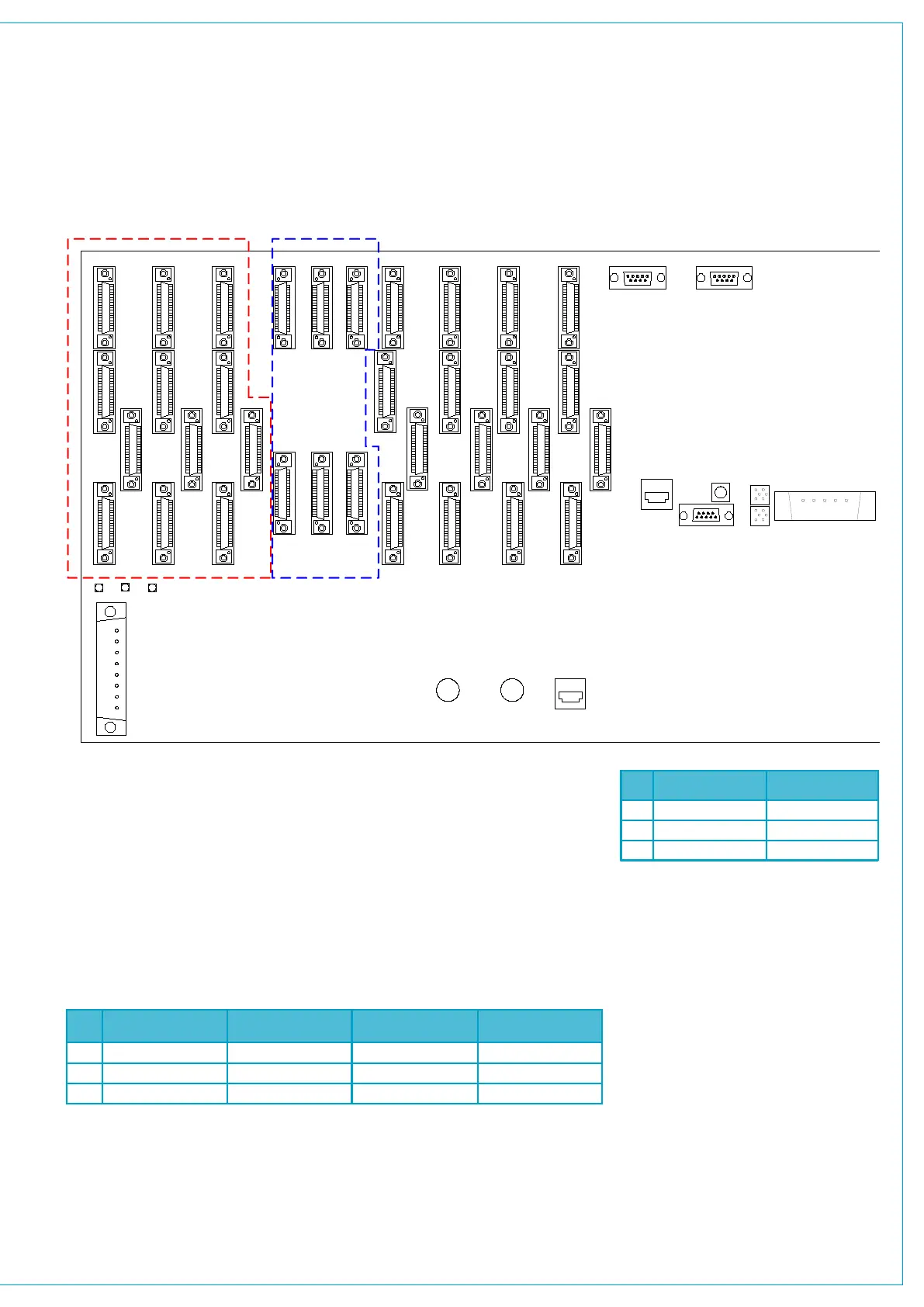

analOGuE Input and Output COnnECtIOns
All of the system’s analogue inputs
and outputs are provided on 36 way
female SCSI-style connectors on the
rear of the Processing Rack.
SCSI - 36F
J120
ADC3 #1-8
SCSI - 36F
J121
ADC3 #9-16
SCSI - 36F
J101
ADC2 #1-8
SCSI - 36F
J103
ADC2 #9-16
SCSI - 36F
J95
ADC1 #1-8
SCSI - 36F
J96
ADC1 #9-16
SCSI - 36F
SCSI - 36F
J122 J111
ADC2 #17-24
ADC3 #17-24
SCSI - 36F
J97
ADC1 #17-24
SCSI - 36F
J127
ADC3 #25-32
SCSI - 36F
J115
ADC2 #25-32
SCSI - 36F
J104
ADC1 #25-32
POWER 8DV
SCSI - 36F
J87
DAC3 #1-16
SCSI - 36F
J82
DAC2 #1-16
SCSI - 36F
J66
DAC1 #1-16
SCSI - 36F
J74
AES4-IN #1-16
SCSI - 36F
J88
DAC3 #17-32
SCSI - 36F
J83
DAC2 #17-32
SCSI - 36F
J68
DAC1 #17-32
SCSI - 36F
J75
AES4-OUT #1-16
SCSI - 36F
J57
AES3-IN #1-16
SCSI - 36F
J58
AES3-OUT #1-16
SCSI - 36F
J47
AES2-IN #1-16
SCSI - 36F
J48
AES2-OUT #1-16
SCSI - 36F
J62
AES1-IN #1-16
SCSI - 36F
J63
AES1-OUT #1-16
SCSI - 36F
SCSI - 36F
J67 J49
AES2-IN #17-32
AES3-IN #17-32
SCSI - 36F
J41
AES1-IN #17-32
SCSI - 36F
J69
AES3-OUT #17-32
SCSI - 36F
J51
AES2-OUT #17-32
SCSI - 36F
J42
AES1-OUT #17-32
SCSI - 36F
J76
AES4-IN #17-32
SCSI - 36F
J77
AES4-OUT #17-32
9M D-TYPE
DEBUG 2
J113
9M D-TYPE
DEBUG 1
J108
RJ45-8V
FAST LINK
J112
9F D-TYPE
POWER 5DV
J100
CH
J99
L2
BNX
005-01
L1
BNX
005-01
J102
TTL SYNC I/P
H121
H122
METER DATAVIDEO SYNC I/P
J109
RJ45-8V
BNC
75
BNC
75
DC DIST
FAIL BOX
HN5638 PROCESSING RACK BACKPLANE
J32
J106
0L
J55
CH
J107
CR
Analogue Inputs Analogue Outputs
Analogue Inputs (ADC Cards)
The Processing Rack can house up to 3
mic/line input (ADC) cards, each of which
provides 16 stereo inputs. The cards are
inserted into the slots within the rack,
these are numbered 1-3. Each slot has 4
dedicated input connectors on the rear of
the rack, to which the system’s analogue
inputs are connected. Each of the input
connectors provides connections for 4
stereo inputs.
Analogue Outputs (DAC Cards)
In addition, the Processing Rack can
house up to 3 line output (DAC) cards,
each of which provides 16 stereo outputs.
The cards are inserted into the slots within
the rack, these are numbered 1-3. Each
slot has 2 dedicated output connectors
on the rear of the rack, which provide
connections for the system’s analogue
outputs. Each of the output connectors
provides connections for 8 stereo outputs.
