® SECTION 4: FLOW
making
since 1986
w
ater work

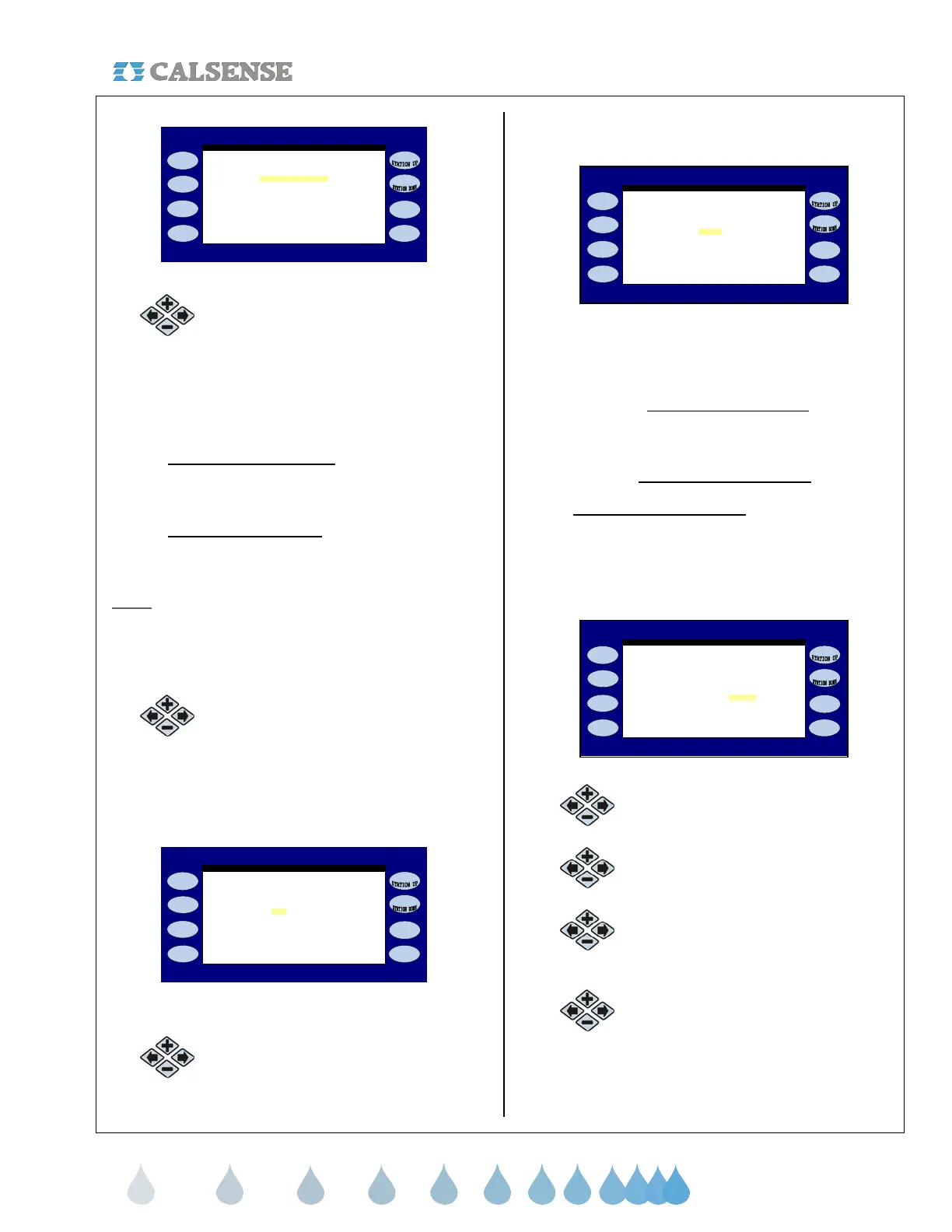

Master valve is NORMALLY CLOSED
Flow Meter in use? NO
POINT OF CONNECTION (MV & FM)
Figure 4.4
2.
Press the PLUS or MINUS keys to
change the MASTER VALVE IS
setting.
The Master Valve default setting is for a normally
closed Master Valve. There are two (2) settings,
• NORMALLY CLOSED:
A normally closed
Master Valve is in the closed position until
voltage is applied to open it.
• NORMALLY OPEN:
A normally open
Master Valve is in the open position until
voltage is applied to close it.
Note:
Be sure to select the correct type of Master
Valve installed. If it is incorrect, the Master Valve will
close whenever a station is irrigated and no water
will flow when a valve is turned on.
setting
3. Press the blue ARROW keys to move
the cursor to the FLOW METER IN
USE? setting.
The POINT OF CONNECTION screen will change to
display (Figure 4.5).
Flow Meter in use? NO
Master valve is NORMALLY CLOSED
POINT OF CONNECTION (MV & FM)
Figure 4.5
4.
Press the PLUS or MINUS keys to
change the FLOW METER IN USE?
setting.
The POINT OF CONNECTION screen will change to
display (Figure 4.6).
Flow Meter in use? YES
Flow Meter Size: NOT USED
Master valve is NORMALLY CLOSED
POINT OF CONNECTION (MV & FM)
Use your own K & Offset? NO
Figure 4.6
If using a Calsense FMBX flow meter, see:
1. FMBX flow meter setup
If using a regular Calsense flow meter, see:
2. Regular flow meter setup
4B.1 FMBX flow meter setup
If the flow meter installed on the system is a
Calsense FMBX, change the “Use your own K &
Offset” to YES, (The screen will appear as shown in
Figure 4.7).
Flow Meter in use? YES
Use your own K & Offset? YES
K: 10.000 OFFSET: 0.200
Master valve is NORMALLY CLOSED
POINT OF CONNECTION (MV & FM)
Figure 4.7
1.
Press the blue ARROW keys to
move the cursor to the K: setting.
2. Press the PLUS or MINUS keys to
change the number.
3.
Press the blue ARROW keys to
move the cursor to the OFFSET:
setting.
4.
Press the PLUS or MINUS keys to
change the number.
