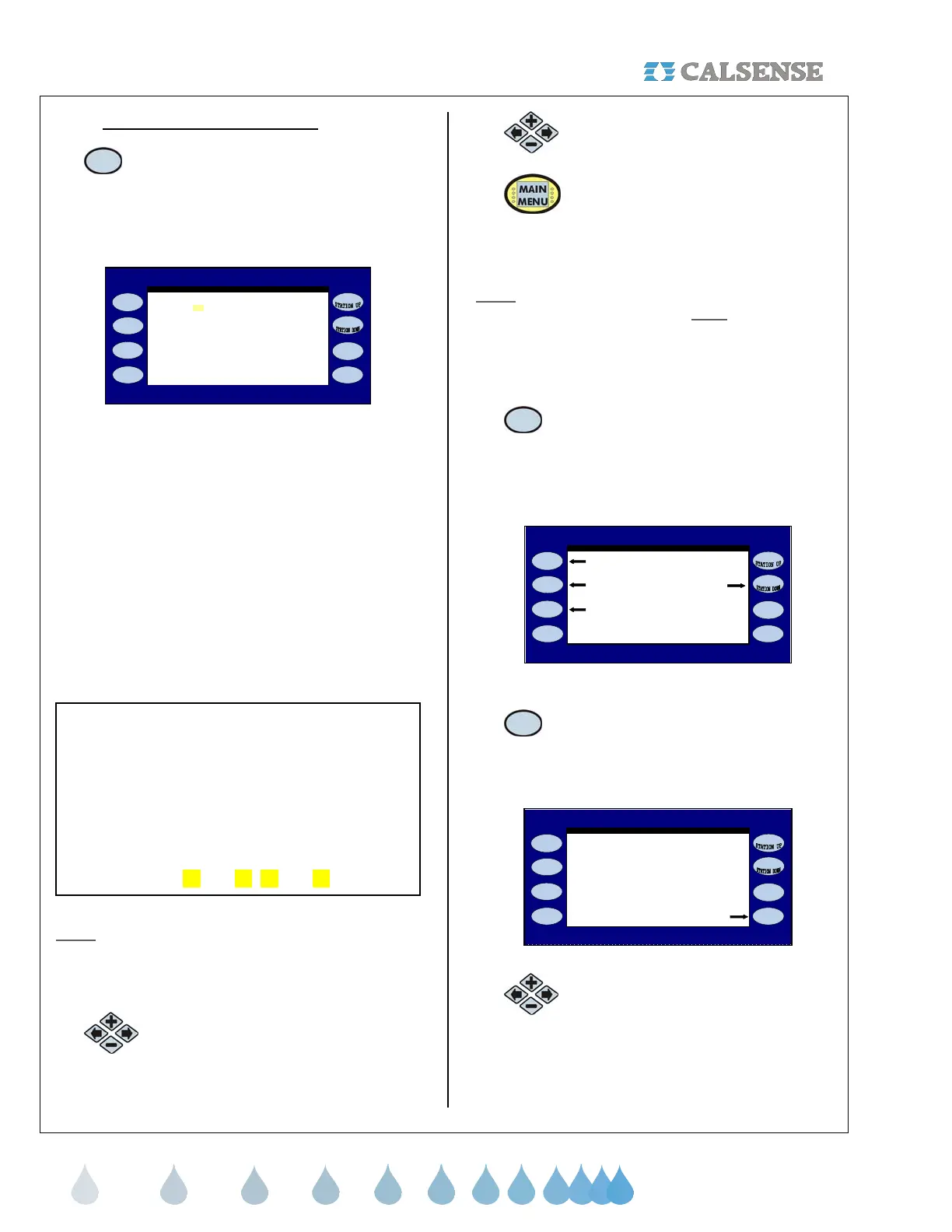

5G.2. Moisture Sensor Assignment
1.
Press the SENSOR ASSIGNMENT
Menu key.
The MOISTURE SENSOR ASSIGNMENT
SCREEN is displayed (Figure 5.34).
Sensor: 01 02 03 04 05 06 07 08 09 10
MOISTURE SENSOR ASSIGNMENT
Station: 01 02 03 04 05 06 07 08 09 10
Station: 11 12 13 14 15 16 17 18 19 20
Station: 21 22 23 24 25 26 27 28 29 30
Sensor: 11 12 13 14 15 16 17 18 19 20
Station: 41 42 43 44 45 46 47 48
Sensor: 41 42 43 44 45 46 47 48
Sensor: 21 22 23 24 25 26 27 28 29 30
Station: 31 32 33 34 35 36 37 38 39 40
Sensor: 31 32 33 34 35 36 37 38 39 40
Figure 5.34
Here, you will enter which station sensors are
assigned to which moisture sensor.
When using moisture sensing a representative
station for each different climatic and plant material
zone on the controller is given a sensor and is
known as a Master station. Slave stations are
stations without sensors that are assigned to a
master station which share similar water
requirements. The choice of groups of stations
controlled by the same sensor is done at the
controller within the MOISTURE SENSOR
ASSIGNMENT screen.
Example:
Station: 01 02 03 04 05 06 07 08 09 10
Sensor: 01 02 03 04 05 06 07 08 09 10
becomes
Station: 01 02 03 04 05 06 07 08 09 10
Sensor: 01 02 03 04 03 03 07 03 09 10
Note:
In the example above station 03 is the Master
station (the station with the moisture sensor) and
stations 05, 06, and 08 are now slaves stations to
station 03 (Highlighted in the example).
2.
Press the PLUS or MINUS keys to
change the entry.
3.
Press the blue ARROW keys
to move the cursor to the next entry.
4.
Once all of the Moisture Sensors
have been set up properly, press
the MAIN MENU key to return to the
MAIN MENU screen (Figure 5.1).
Note: New settings will be available in the STATION
PROGRAMMING screen for each
station that is
using Moisture sensing and will have to be
programmed individually.
From the MAIN MENU screen:
5. Press the PROGRAMS &
STATIONS Menu key (Figure 5.1).
The PROGRAMS & STATIONS screen is displayed
(Figure 5.35).
PROGRAMS & STATIONS
Start Times & Water Days
Stations Station - by - Program
Station - to - Station Cop
y
Figure 5.35
6. Press the STATIONS Menu key.
The STATION PROGRAMMING screen is displayed
(Figure 5.36).
STATION PROGRAMMING
Station 1 . . . . . . . . . . . . . . . . . . . . . . . PROG
A
Total Mins : 15.0
Mins per Cycle : 5
Soak - In Time : 60 No Water Days 0
Test
0 GPM 0.00 AMPS
Max Days: 00
Moist Set: 99
Moist Read: - -
MASTER
Figure 5.36
7.
Press the blue ARROW keys to
move the cursor to the MAX DAYS
entry.
