12
6
15
5
16
4
9
3
18
19
10
20
13
7
21
1
11
14
2
22
17
C
DRAWING NOTES:-
REVISIONS NOTES:-
DATE
EDITOR
REV
THIRD ANGLE
PROJECTION
B
A
A
B
C
D
1
2
3
E-MAIL simon.freeth@audiopartnership
FINISH:
MATERIAL:
REVISIONS & DATE
E-MAIL nick@audiopartnership
1:5SCALE:
E-MAIL grahame@audiopartnership
FAX: 0207 940 2233
1
DO NOT SCALE FROM DRAWING
DWG. NO.
A0
SIZE
TITLE:
AUDIO PARTNERSHIP PLC
UNLESS OTHERWISE SPECIFIED:
OF 1SHEET
TEL: 0207 940 2200
LONDON SE1 4BB
HANKEY PLACE
3 GALLERY COURT
AUDIO PARTNERSHIP PLC
COPYRIGHT
0.5
--
--
PROPRIETARY AND CONFIDENTIAL
ANGULAR
0.1mm2 DECIMAL IE 75.75
OF AUDIO PARTNERSHIP IS PROHIBITED.
F
E
F
E
1
2
3
4
5
6
7
8
8
7
6
5
4
DIMENSIONS ARE IN MM's
TOLERANCES:
WHOLE NO.s IE 75 0.5mm
1 DECIMAL IE 75.5 0.2mm
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF
AUDIO PARTNERSHIP PLC.
ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION
D
26/11/04
8
GTL
DRAWING.
AP16809/1
1

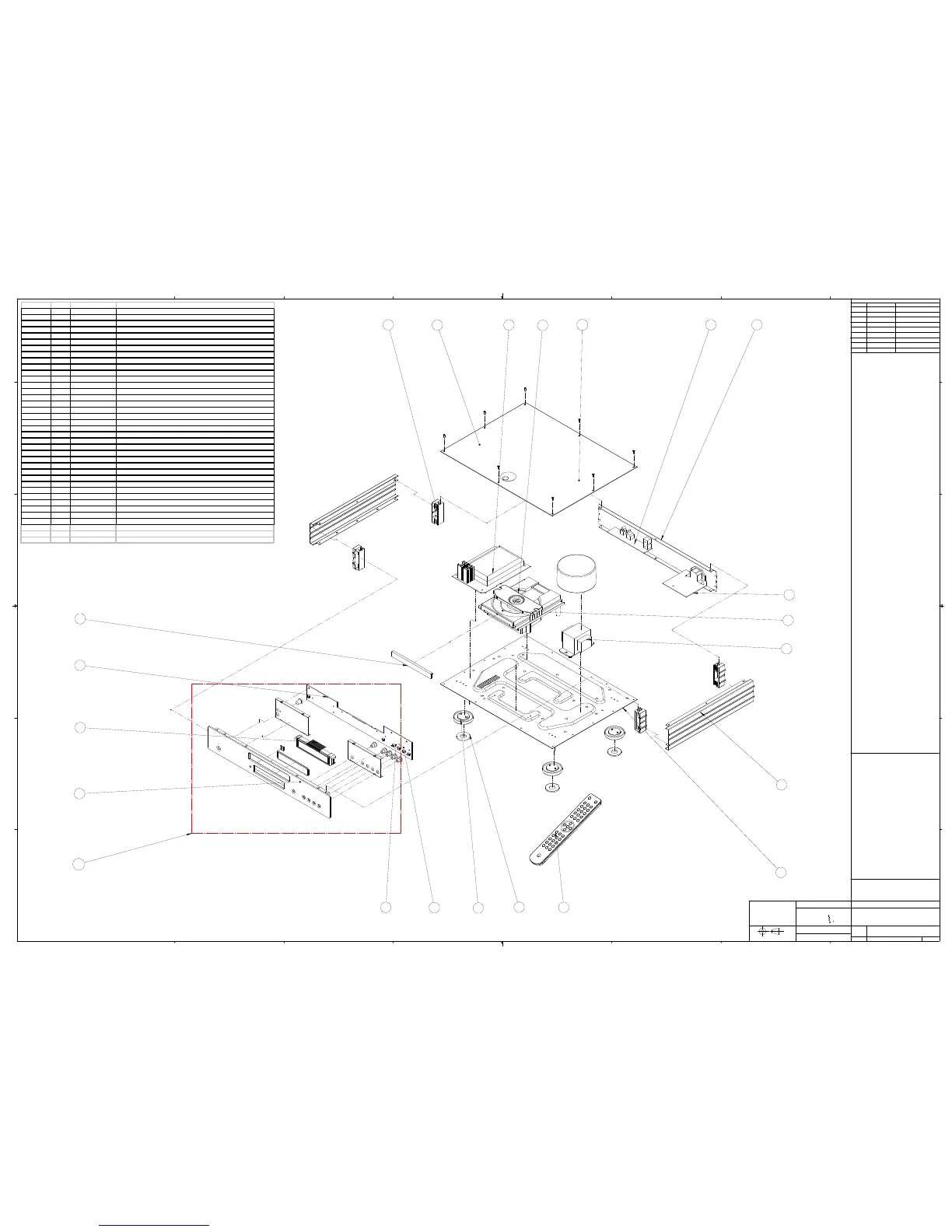

340C EXPLODED ASSEMBLY
1: ORIGINAL DRAWING 26/11/04.
Drawing re f AP part Factory ref Description
1 CA new side panel
2 CA new plastic insert rear
3 CA new plastic insert front
4 CA new back panel
5 PY507 6550-010204-000-01 Azur 640C Top Panel Black
5 PY508 6550-010204-000-02 Azur 640C Top Panel Silver
6 PY515 7002-608010-001 Screw M2.6 x 8 M/C Torx Recessed 1/K Head Black
6 PY516 7002-608010-006 Screw M2.6 x 8 M/C Torx Recessed 1/K Head En-Plated (silver)
7 PY792 6564-010001-000A04 Azur-340C FRONT PANEL Silver (Aluminium panel)
7 PY786 6564-010001-000-04 Azur-340C aluminium FRONT PANEL-Black W/S Cool grey 7C
8 PY791 8534-001010-301 Azur-340C Complete FRONT PANEL ASSY (Silver) REV A
8 PY785 8534-001020-301 Azur-340C Complete FRONT PANEL ASSY (BLACK) REV A
9 PY563 3200-576690-100 TRANSFORMER 115V/230V AC10V/2A 16*2/0.5A ES-57-669
10 PY541 6050-150010-000A01 PLASTIC FOOT GREY PAINT SILVER
10 PY531 6050-150010-000 PLASTIC FOOT BLACK (AP126522)
11 PY340 9692-006002-101 Mechan Assy (PU92TL-210) W/Sony KSM213CCM ReV A
12 PY790 3009-213000-000 Sony laser assy KS213CCM
13 PY719 6050-150012-000-01 7MM TAC SWITCH BUTTON (BLACK)
13 PY720 6050-150012-000A01 7MM TAC SWITCH BUTTON (SILVER)
14 PY704 6600-170104-000 CA NEW RANGE AMP 7MM TAC SWITCH CUSHION
15 PY787 9434-001000-011 Azur-340C MAIN BOARD ASSY (AP146471) REV A
16 PY789 9434-001000-531 Azur-340C OUTPUT BOARD ASSY AP14647/4 REV A
17 PY788 9434-001000-071 Azur-340C 230V POWER PCB ASSY REV A
18 PY573 9805-064001-000 Azur-340/540/640AC REMOTE CONTROL ASSY
19 PY544 6600-170100-000 FOOT PAD FOR Azur-640A
20 PY568 6564-010006-000A01 Azur-640C.Silver CD DOOR W/SILKSCREEN PMS COOL GREY 7C
20 PY554 6564-010006-000-01 Azur-640C.Black CD DOOR W/SILKSCREEN PMS COOL GREY 7C
21 PY552 3110-064580-100 LCD DISPLAY ISO6458P01V0 113*25.7MM NEGATIVE (BLACK UNIT)
21 PY562 3110-064580-000 LCD DISPLAY ISO6458P00V0 113*25.7MM POSITIVE (SILVER UNIT)
22 PY556 9464-001000-041 Azur-540C & 640C CONTROL BOARD ASSY REV A
Note:user manual is downloadable from our www.cambridge-audio.co.uk
