Cambridge Audio CXN v2 User Manual

11
Getting Connected
Last updated: June 30, 2022 02:29. Revision #5001

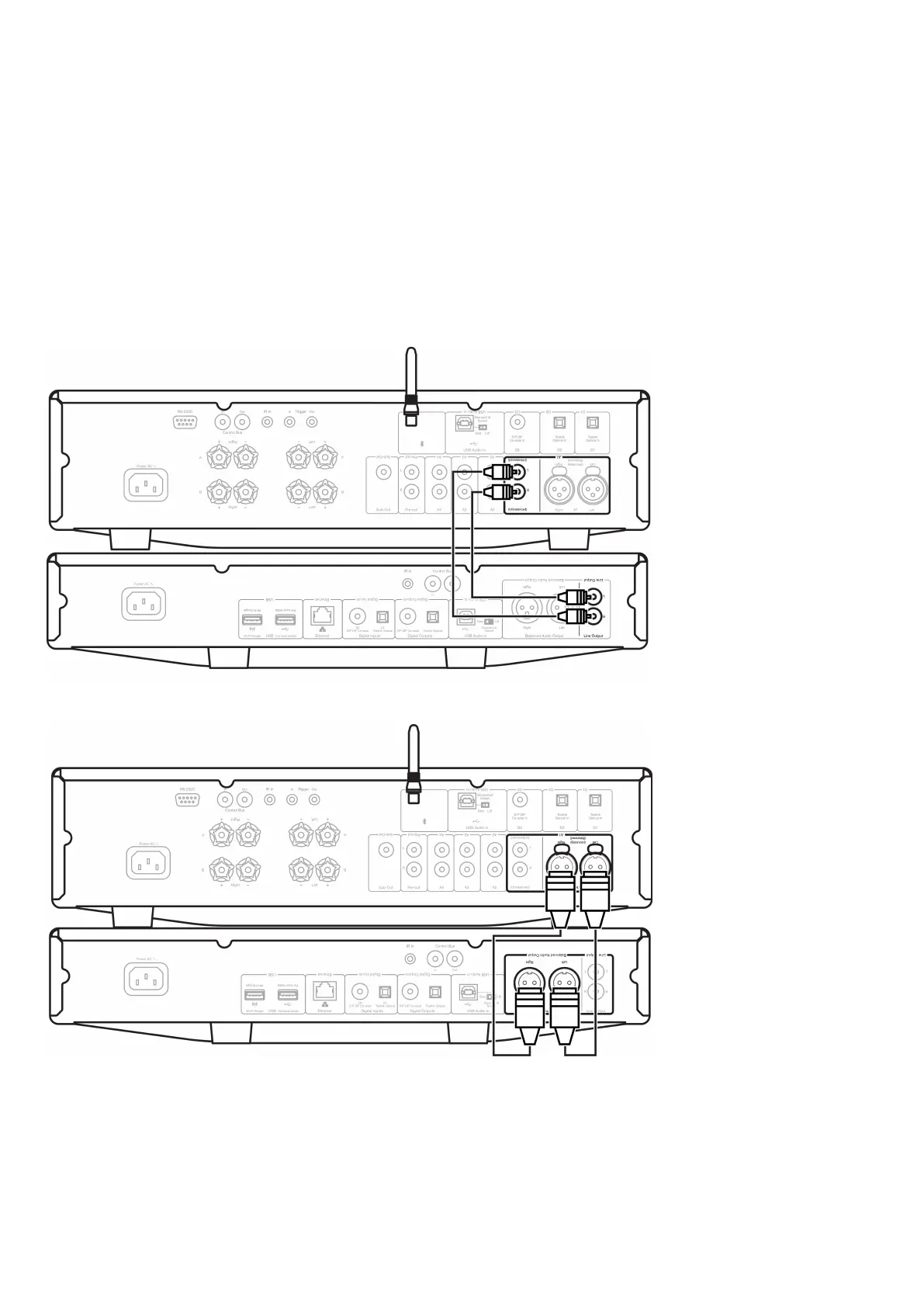

Basic Analogue Connections
Important Note: Switch the power off before making any connections.
There are two analogue connection options for the CXN (V2).
1. Line Output Connection (RCA)
2. Balanced Audio Connection (XLR)
Basic Digital Connections
There are two digital connection options for the CXN (V2).
Note: If using either of the digital outputs of the CXN (V2), the digital signal will bypass the DAC in CXN (V2) and will instead be processed by the

Cambridge Audio CXN v2 Specifications

General

Type	Network Streamer
DAC	Dual Wolfson WM8740
Digital Audio Outputs	S/PDIF Coaxial, TOSLINK Optical
Ethernet	Yes
Standby Power Consumption	<0.5W
Digital Filter	2nd Generation ATF2 up-sampling to 24-bit/384kHz
Supported Formats	ALAC, WAV, FLAC, AIFF, WMA, MP3, AAC, HE AAC, AAC+, OGG Vorbis
Connectivity	Ethernet, Wi-Fi
Bluetooth	Optional (via BT100 dongle)
Inputs	USB, Optical, Coaxial
Outputs	Balanced XLR, RCA
Analogue Audio Outputs	Balanced XLR, RCA
Compatibility	UPnP
Streaming Services	Spotify Connect, TIDAL, Qobuz, Internet Radio
Wi-Fi	Yes
Control	Remote Control
Dimensions	85 x 430 x 305 mm (H x W x D)
Sample Rates	up to 24-bit/192kHz
