Cambridge Audio CXN v2 User Manual

6

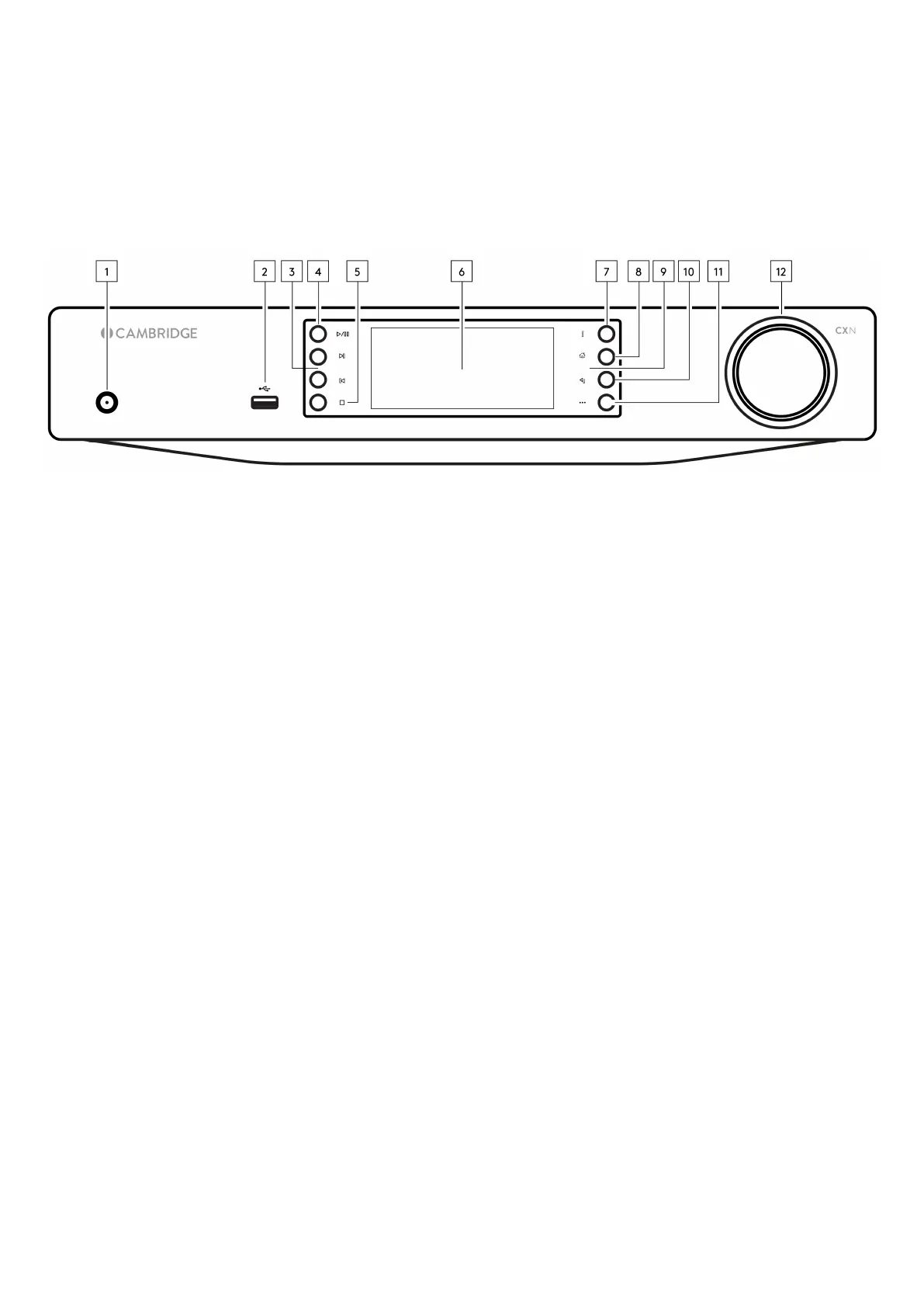

Front Panel
Last updated: June 30, 2022 02:20. Revision #4998
1. Standby/On
Switches the unit between Standby Mode (indicated by dim power LED) and On (indicated by bright power LED). Standby Mode is a low power mode
(0.5 Watts) – This can only be achieved when using Eco mode. The unit should be left in Standby Mode when not in use.
2. USB
For use with USB storage devices. 1A maximum current consumption.
3. Play/Pause
Play or Pause current track.
4. Skip
Skip to next track during playback.
5. Stop/Delete
Press during playback to stop or delete items in various menus.
6. Display
7. Infrared Sensor
IR sensor that receives IR commands from the remote control.
8. Info
During playback, pressing this button will cycle through ‘Now Playing’ screens. Press and hold to display the product info.
9. Home
Press to navigate to Home menu.
10. (More)
When playing from UPnP sources, this button displays queued tracks and options.
11. Return
Press to return to the previous menu.

Cambridge Audio CXN v2 Specifications

General

Type	Network Streamer
DAC	Dual Wolfson WM8740
Digital Audio Outputs	S/PDIF Coaxial, TOSLINK Optical
Ethernet	Yes
Standby Power Consumption	<0.5W
Digital Filter	2nd Generation ATF2 up-sampling to 24-bit/384kHz
Supported Formats	ALAC, WAV, FLAC, AIFF, WMA, MP3, AAC, HE AAC, AAC+, OGG Vorbis
Connectivity	Ethernet, Wi-Fi
Bluetooth	Optional (via BT100 dongle)
Inputs	USB, Optical, Coaxial
Outputs	Balanced XLR, RCA
Analogue Audio Outputs	Balanced XLR, RCA
Compatibility	UPnP
Streaming Services	Spotify Connect, TIDAL, Qobuz, Internet Radio
Wi-Fi	Yes
Control	Remote Control
Dimensions	85 x 430 x 305 mm (H x W x D)
Sample Rates	up to 24-bit/192kHz
