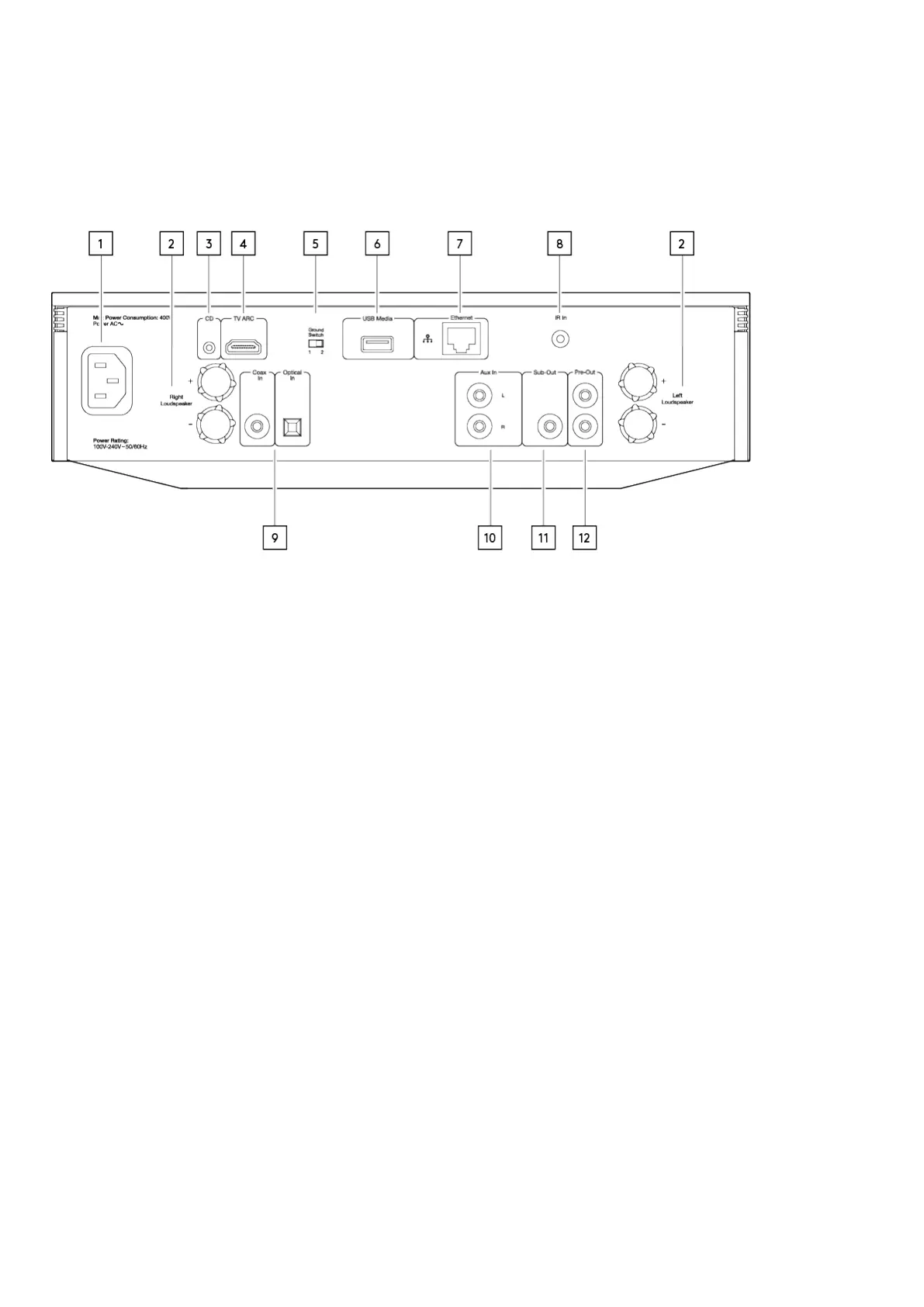

Evo 75 rear panel connections
Last updated: October 13, 2022 04:24. Revision #6750
1. AC Power socket
2. Speaker terminals
3. Evo CD
A dedicated connection from an Evo CD player.
4. Audio return channel (ARC)
A connection from a TV that supports ARC function.
5. Ground Switch
Note: The ground switch position should be set to 1 as default. Use another position if a humming noise occurs.
Position 1 – Normal/default position. The main unit audio ground is lifted from chassis earth.
Position 2 – Main unit audio ground is connected directly to chassis earth. For some setups, this can reduce hum or noise when certain TVs,
Turntables, and other equipment are connected to the Evo unit
6. USB Media
For connecting local media storage. Note that the USB ports are not intended for connection to Apple mobile devices; no functionality, charging or
otherwise is supported.
7. Ethernet
Use a wired connection for seamless playback of high-resolution 352.8kHz, 384kHz, and DSD 256.
8. IR In
Receives modulated IR commands from an IR repeater or custom install systems.
9. Digital Inputs (Coax and Optical)
Note: If a digital input is connected to a TV you can enable TV mode in the input settings of the StreamMagic app. This mode minimises lip-sync
delays on the audio path by bypassing MQA decoding and also reduces the chance of dropouts and glitches from some TVs.
10. Analogue Input
11. Sub-Out
