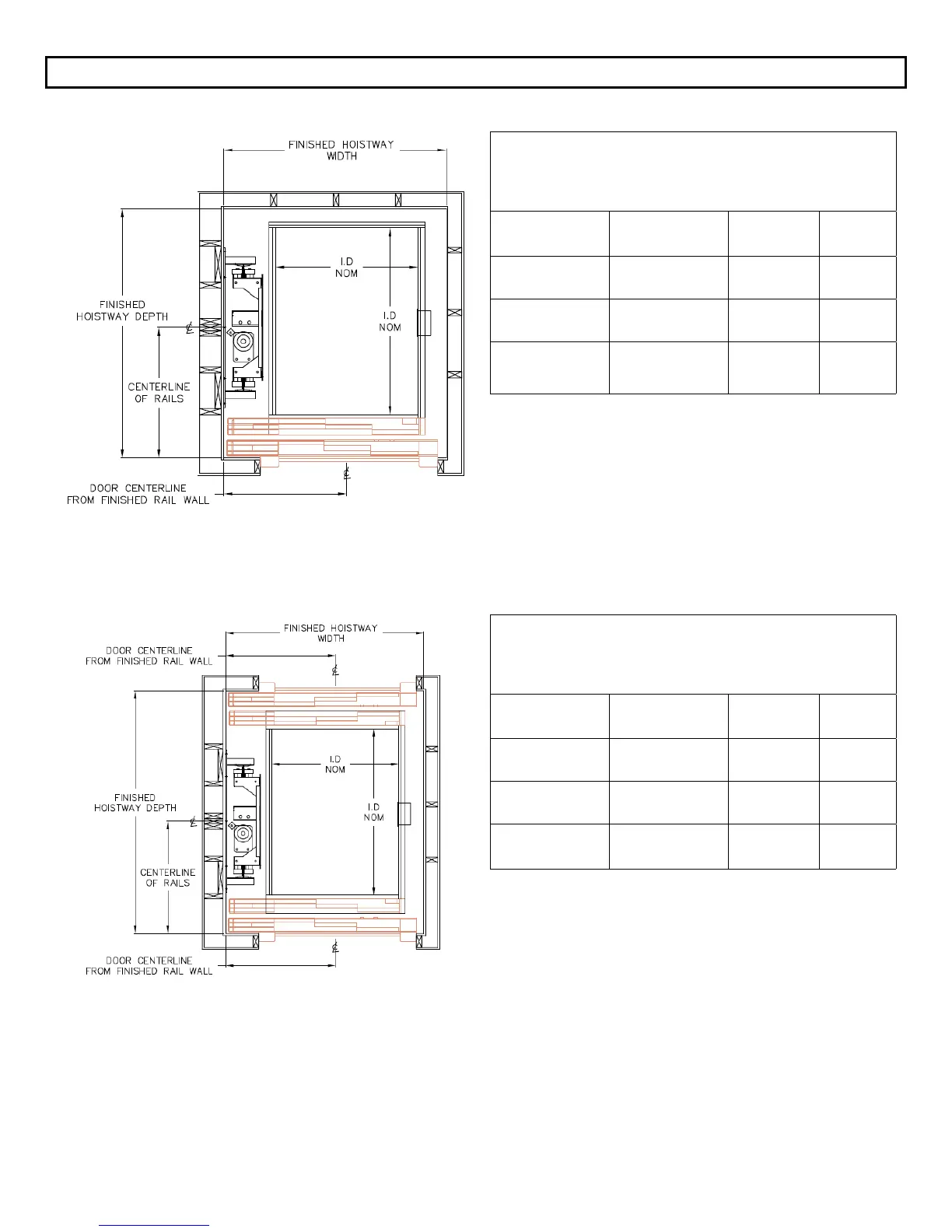

Cambrian Model Cab / Hoistway Size Layout
Cab Size
Hoistway Size Centerlines
Width x Depth
Landing
Door
Rail
Wall
44” x 48”
(2 panel doors)
62” x 61.75” 38.75” 31.75”
36” x 48”
(3 panel doors)
54” x 63.25” 32.75” 33”
36” x 60”
(3 panel doors)
54” x 75.25” 32.75” 39”
40” x 54”
(3 panel doors)
58” x 69.25” 34.75” 36”
Please note dimensions remain for mirrored configurations.
TYPE 1 – INLINE
Cab Size
Hoistway Size Centerlines
Width x Depth
Landing
Door
Rail
Wall
44” x 48”
(2 panel doors)
62” x 65.75” 38.75” 32.75”
36" x 48”
(3 panel doors)
54” x 68.5” 32.75” 34.25”
36" x 60”
(3 panel doors)
54” x 80.5” 32.75” 40.25”
40" x 54"
(3 panel doors)
58” x 74.5” 34.75” 37.25”
Please note dimensions remain for mirrored configurations.
TYPE 2 – THROUGH
