Cambridge Elevating Elmira - Drawings - Heritage Model Cab;Hoistway Size Layout

www.CambridgeElevating.com August 2017
16

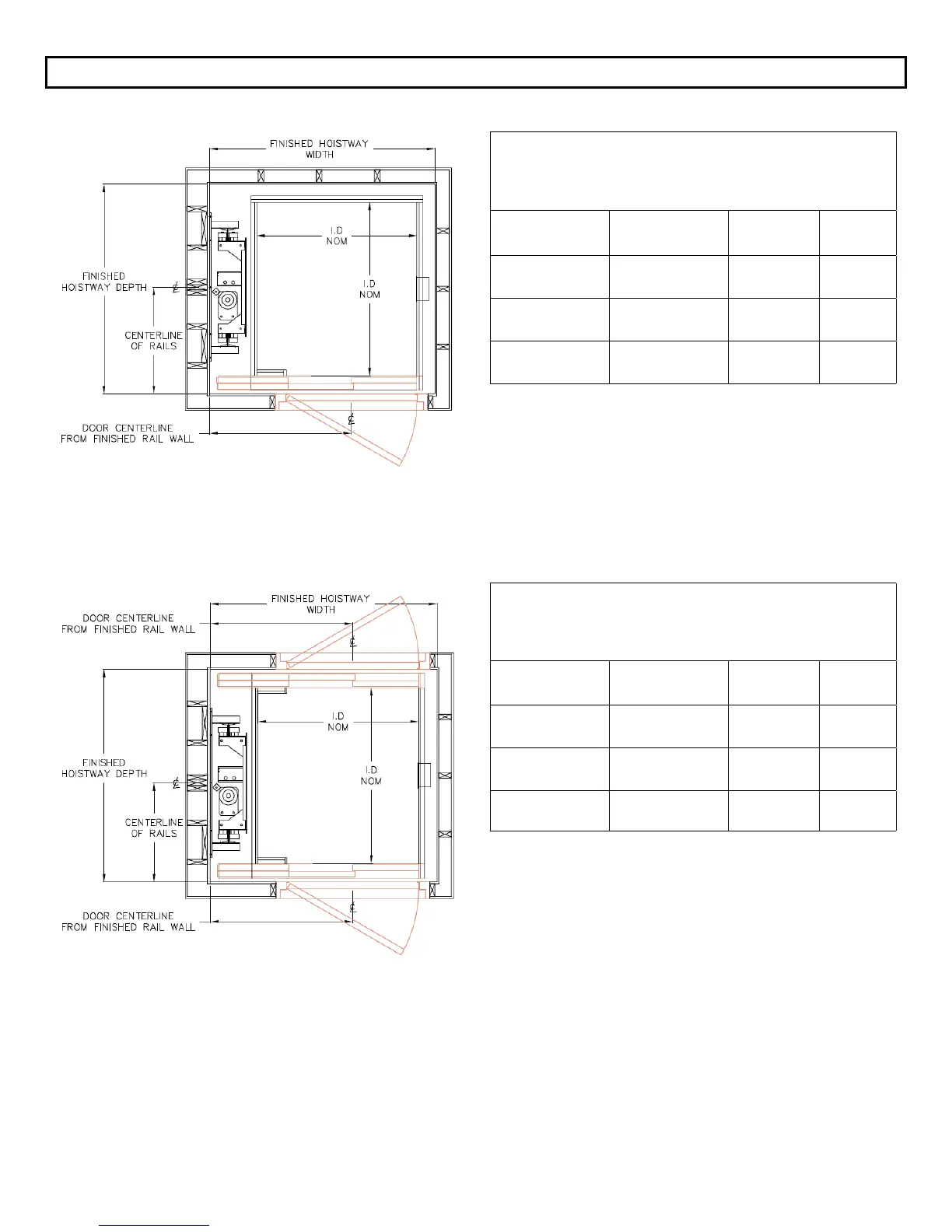

Heritage Model Cab / Hoistway Size Layout
Cab Size
Hoistway Size Centerlines
Width x Depth
Landing
Door
Rail
Wall
44” x 48”
(2 panel doors)
62” x 57.75” 38.75” 27.75”
36” x 48”
(3 panel doors)
54” x 56.875” 32.75” 28.0625”
36” x 60”
(3 panel doors)
54” x 70.5” 32.75” 34.0625”
40” x 54”
(3 panel doors)
58” x 62.5” 34.75” 31.0625”
Please note dimensions remain for mirrored configurations.
TYPE 1 – INLINE
Cab Size
Hoistway Size Centerlines
Width x Depth
Landing
Door
Rail
Wall
44” x 48”
(2 panel doors)
62” x 58.5” 38.75” 29.25”
36" x 48”
(3 panel doors)
54” x 59.75” 32.75” 29.875”
36" x 60”
(3 panel doors)
54” x 71.75” 32.75” 35.875”
40" x 54"
(3 panel doors)
58” x 65.75” 34.75” 32.875”
Please note dimensions remain for mirrored configurations.
TYPE 2 – THROUGH
