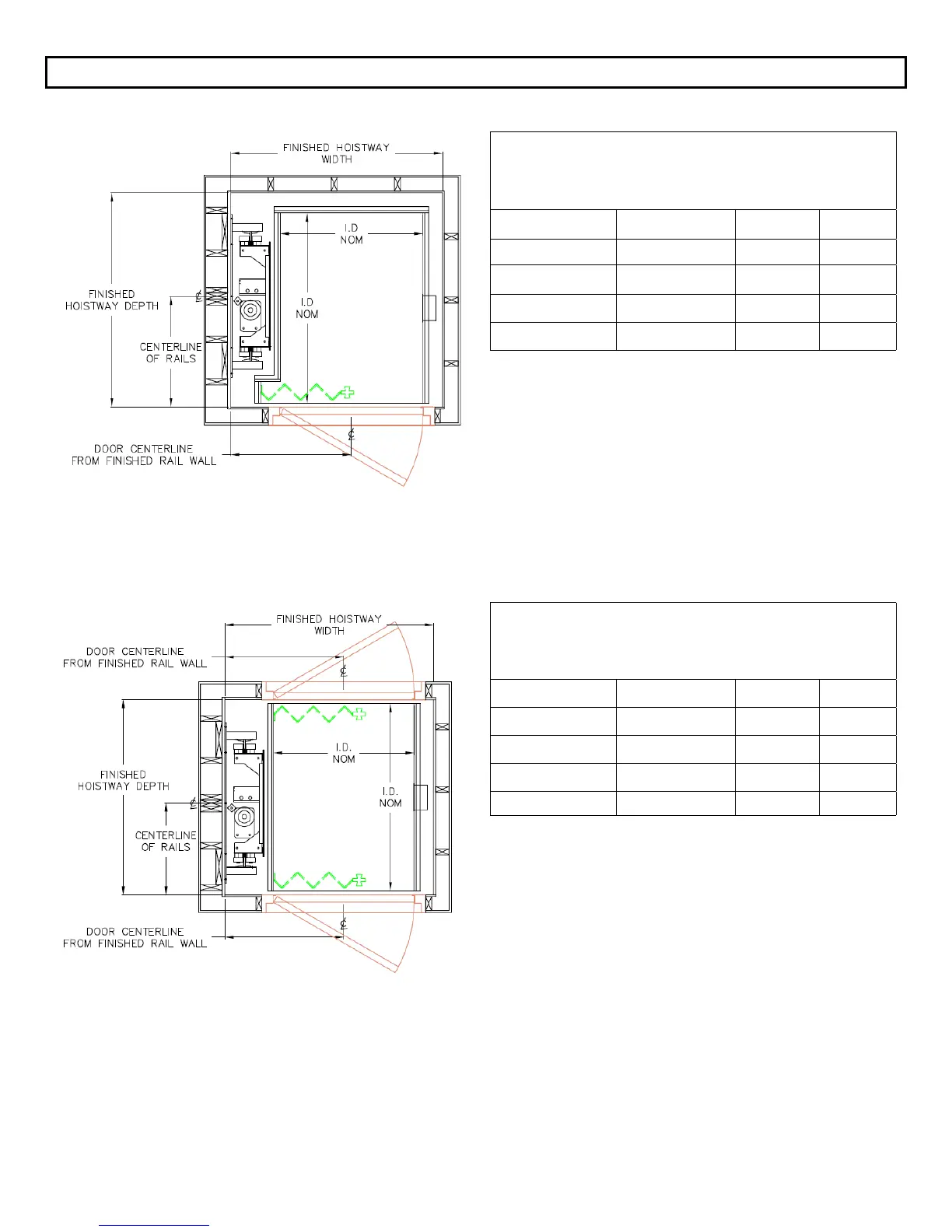

Elmira Model Cab / Hoistway Size Layout
Cab Size
Centerlines Hoistway Size
Width x Depth
Landing
Door
Rail
Wall
36” x 48” 54” x 54.25” 31” 26.75”
36” x 54” 54” x 60.25” 31” 28.25”
36” x 60” 54” x 66.25” 31” 31.25”
40” x 48” 58” x 54.25” 35” 26.75”
40” x 54” 58” x 60.25” 35” 28.25”
Please note dimensions remain for mirrored configurations.
TYPE 1 – INLINE
Cab Size
Centerlines Hoistway Size
Width x Depth
Landing
Door
Rail
Wall
36” x 48” 54” x 50.5” 31” 24.25”
36” x 54” 54” x 56.5” 31” 27.25”
36” x 60” 54” x 62.5” 31” 31.25”
40” x 48” 58” x 50.5” 35” 24.25”
40” x 54” 58” x 56.5” 35” 27.25”
Please note dimensions remain for mirrored configurations.
TYPE 2 – THROUGH
