S-Series Technical Manual 17 Cambridge Engineering, Inc.

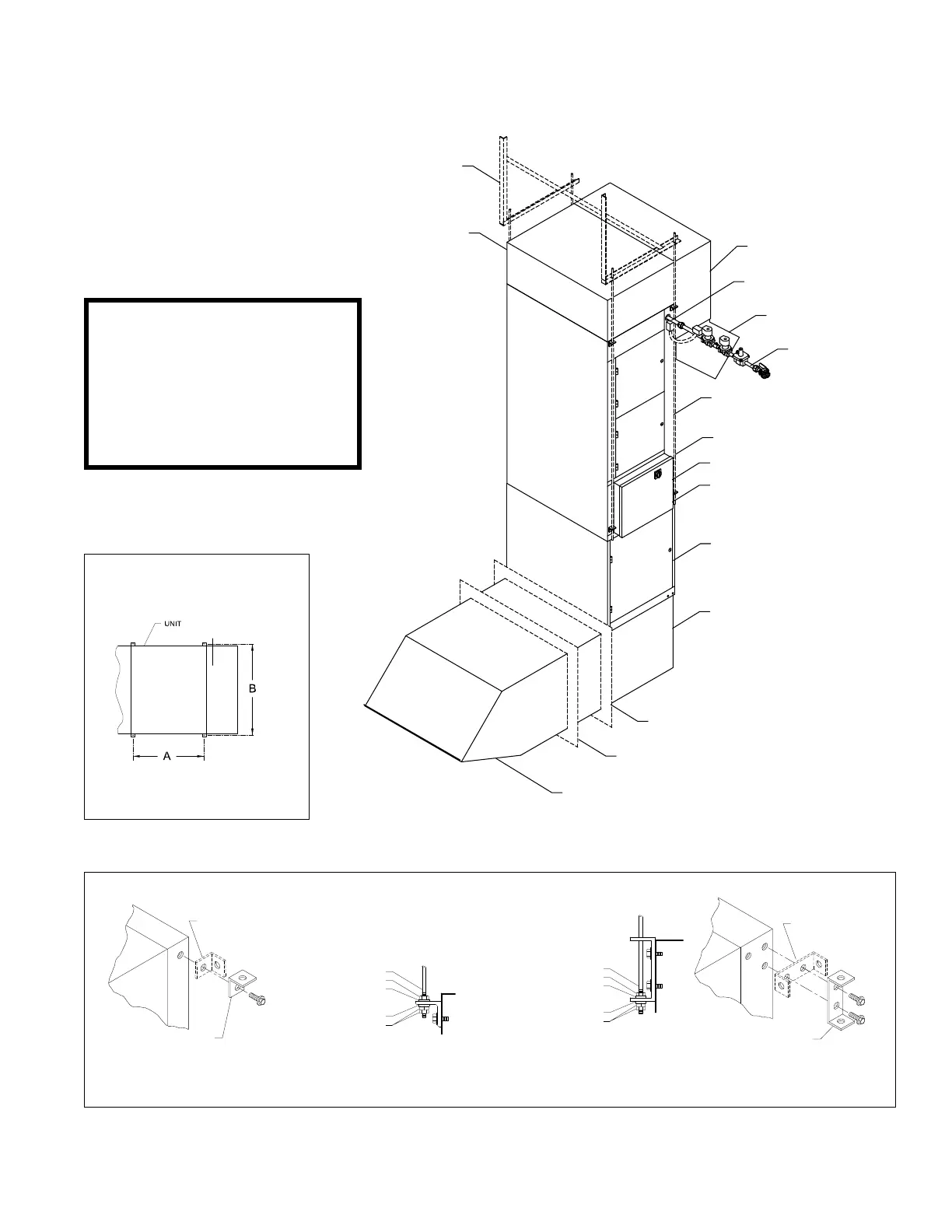

TYPICAL VERTICAL INDOOR INSTALLATION
INLET ELBOW
RAIN HOOD
FILTER SECTION
DOWNTURN
SECOND DOWNTURN
(OPTIONAL)
DIRECTIONAL
ELBOWS
HANGING ROD
(BY OTHERS)
INTERIOR WALL TRIM
KNEE BRACE
(BY OTHERS)
(BY OTHERS)
STRUCTURAL
ELECTRICAL CONTROL
ENCLOSURE
GAS TRAIN WIRING
(FIELD CONNECTED)
(OPTIONAL)
GAS TRAIN
(BY OTHERS)
EXTERIOR WALL TRIM
UNIT
BASE OF HEATER
mWARNING:
The primary structural support
element of a vertically mounted
heater is the base. Any support to
the heater cabinet should be con-
sidered secondary, only as a means
to help stabilize the heater.
HANGING BRACKET DETAIL
L BRACKET
FOR S400 - S800 UNITS
C BRACKET
FOR S950 - S3200 UNITS
HANGING RODS, NUTS AND WASHERS BY OTHERS
HANGING ROD DETAIL
DOWNTURN
SECOND DOWNTURN
(OPTIONAL)
MOUNTING POSITION
SHIPPING POSITION
DOUBLE LOCK NUTS
NUT
WASHER
WASHER
HANGING ROD
MOUNTING POSITION
SHIPPING POSITION
HANGING ROD
WASHER
WASHER
NUT
DOUBLE LOCK NUTS
