S-Series Technical Manual 21 Cambridge Engineering, Inc.
INSTALLATION INSTRUCTIONS

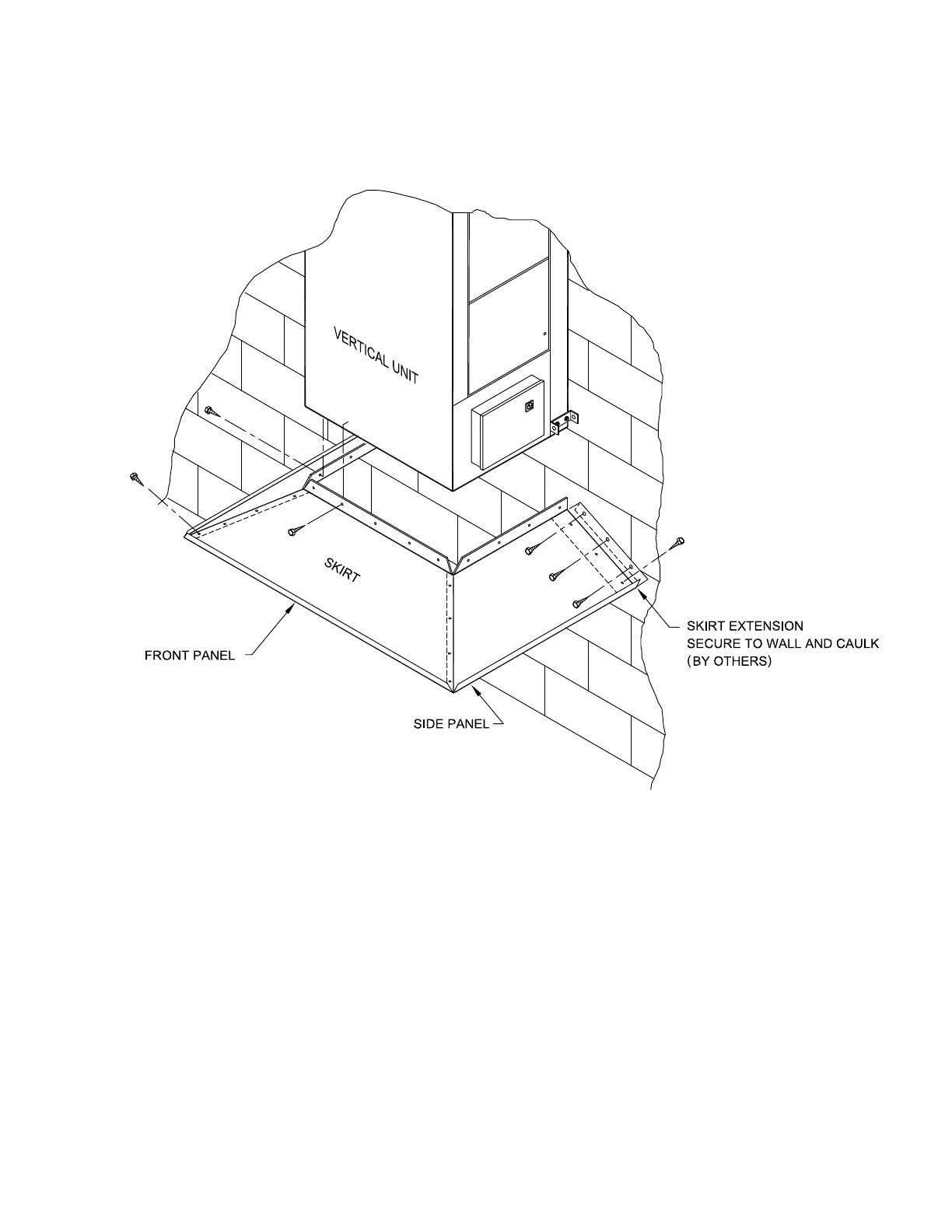

UNIT INLET SKIRT
1. Attach the front panel of the inlet skirt to the unit
top with the sheet metal screws provided.
2. Attach the side panels to the unit sides with the
sheet metal screws provided. (Typical both sides.)
3. Secure the front panel to the side panels with the
sheet metal screws provided through the clearance
holes in the front panel.
4. Clamp skirt on the inside of the side panel (as
shown) so that the skirt extension is flush to the
exterior wall. Secure the extension to the side
panel with the sheet metal screws provided.
Secure the extension to the building exterior with
hardware provided by others. (Typical both sides.)
5. Caulk all seams with silicone caulk.
