S-Series Technical Manual 19 Cambridge Engineering, Inc.

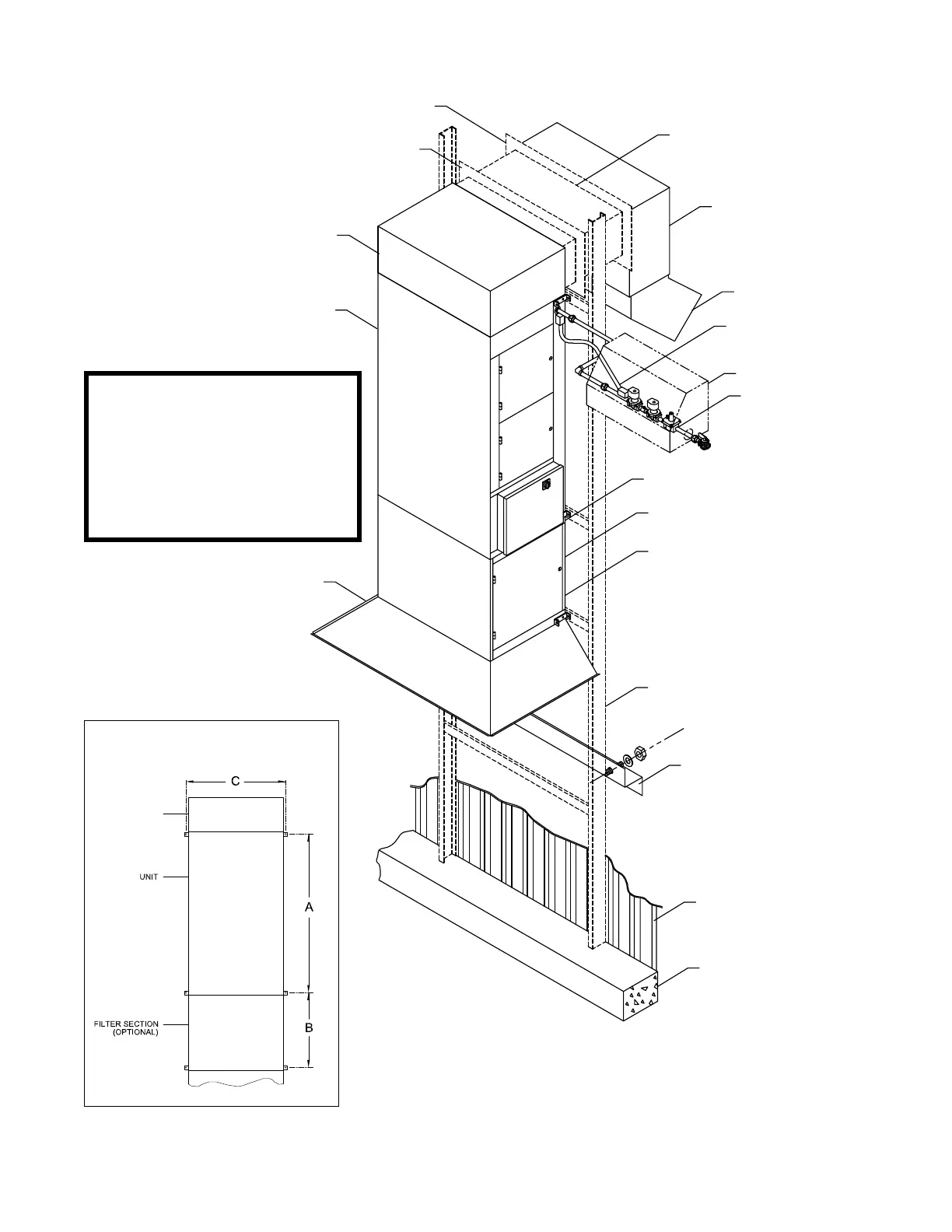

TYPICAL VERTICAL OUTDOOR INSTALLATION
EXTERIOR WALL FLASHING
(BY OTHERS)
DOWNTURN
UNIT
INLET SKIRT
(FIELD ASSEMBLED)
SECOND DOWNTURN
(OPTIONAL)
WALL SLEEVE
GAS TRAIN ENCLOSURE
ELECTRICAL CONTROL ENCLOSURE
FILTER SECTION
CHANNEL SUPPORT
(BY OTHERS)
SECURE STRUCTURAL CHANNEL
TO WALL (AS REQUIRED)
BUILDING WALL
BUILDING FOOTING
(BY OTHERS)
(OPTIONAL)
(FIELD CONNECTED)
GAS TRAIN WIRING
ELBOWS
DIRECTIONAL
BASE OF HEATER
GAS TRAIN
(BY OTHERS)
INTERIOR WALL FLASHING
MOUNTING DETAIL
DOWNTURN
mWARNING:
The primary structural support
element of a vertically mounted
heater is the base. Any support to
the heater cabinet should be con-
sidered secondary, only as a means
to help stabilize the heater.
