S-Series Technical Manual 47 Cambridge Engineering, Inc.
SOLENOID BASE
SUBASSEMBLY
BONNET GASKET
VALVE BONNET
VALVE BODY
CORE/DIAPHRAGM
SUBASSEMBLY
BONNET SCREW
BODY GASKET
Indicates parts supplied
in AS CO Reb uild Kit.
CAUTION
Do not damage
valve seat
Locate bleed hole in
core/diaphragm sub---
assembly approximately
30° from valve inlet
BLEED HOLE

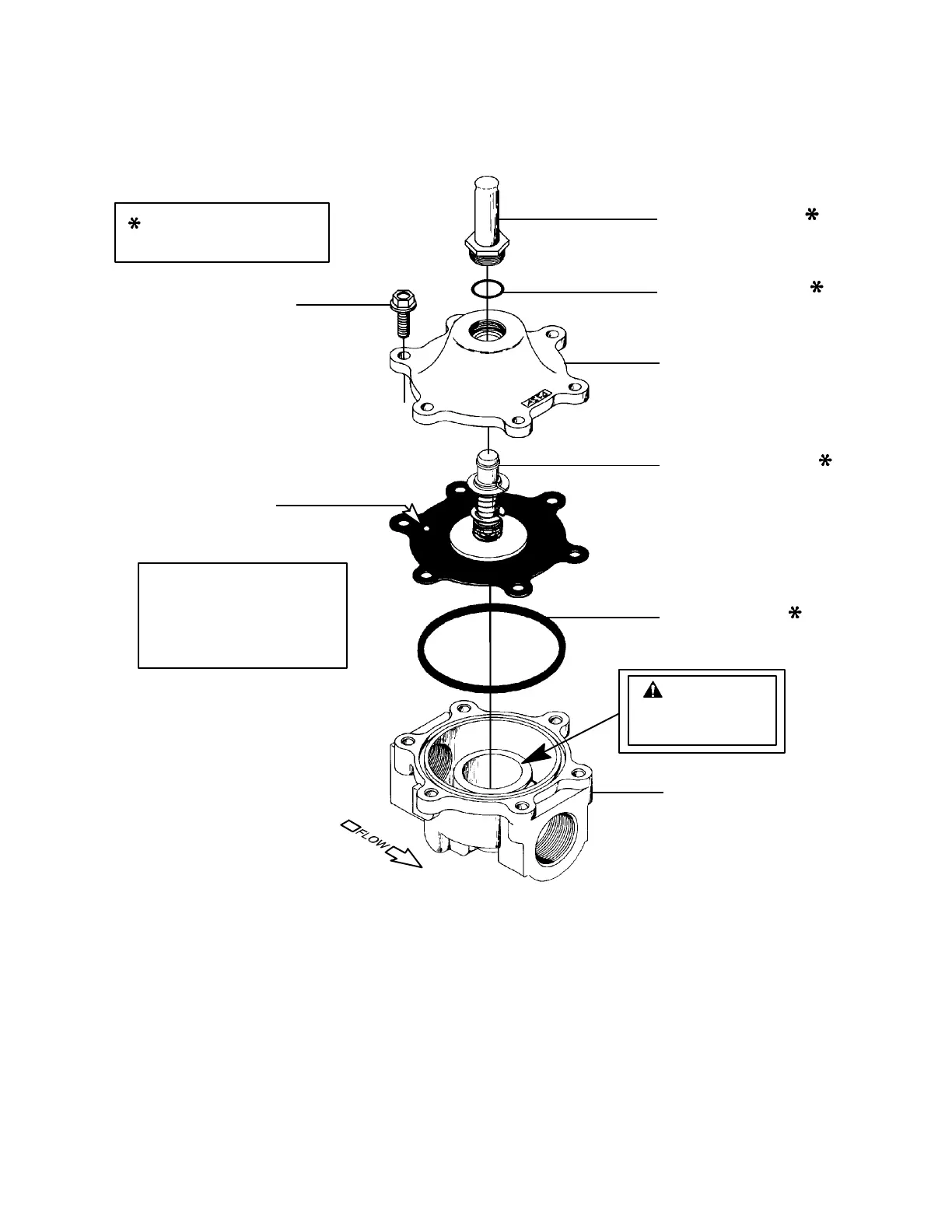

Disassembled View of ASCO Valve
