CN2
PROG
8
7
5
4
6
3
2
1
D+
–
D–
NC
NO
C
CN4
A
Page 3 - Manual code: FB00162-EN vers. 1 07/2015 © CAME s.p.a. - The data and information shown in this manual are to be considered as subject to change at any time and without the need for any advance warning.
Page 2 - Manual code: FB00162-EN vers. 1 07/2015 © CAME s.p.a. - The data and information shown in this manual are to be considered as subject to change at any time and without the need for any advance warning.
General Precautions
• Read the instructions carefully before beginning the installation and carry out the actions as specified by the manufacturer.
• The installation, programming, commissioning and maintenance of the product must only be carried out by qualified technicians,
properly trained in compliance with the regulations in force, including health and safety measures and the disposal of packaging.
• Before carrying out any cleaning or maintenance operation, disconnect the device from the power supply.
• The equipment must only be used for the purpose for which it was expressly designed.
• The manufacturer declines all liability for any damage as a result of improper, incorrect or unreasonable use.
Declaration . Came S.p.A. declares that this device complies with the basic requirements and with the other pertinent arrangements set by directive
2004/108/CE. Original upon request.
Decommissioning and disposal. Do not dispose of the packaging material and the device at the end of its life cycle in the environment, but dispose of them in compliance with
the laws in eect in the country in which the product is being used. The recyclable components are marked with a symbol and the material's ID marker.
THE DATA AND INFORMATION SHOWN IN THIS MANUAL ARE TO BE CONSIDERED AS SUBJECT TO CHANGE AT ANY TIME AND WITHOUT THE NEED FOR ANY ADVANCE
WARNING. THE MEASUREMENTS, UNLESS OTHERWISE INDICATED, ARE IN MILLIMETRES.

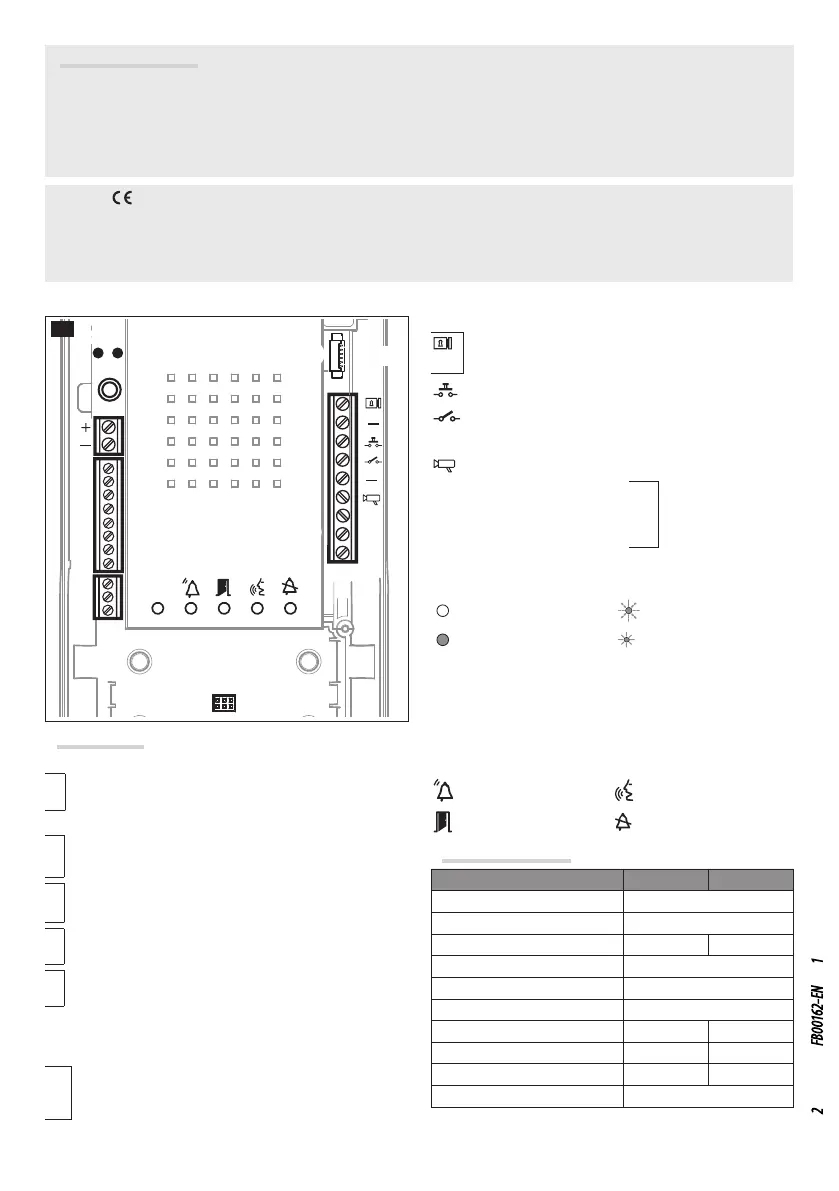

Functions A
Terminal board
+
12-24 V DC power supply
–
Terminal board with Ethernet connection T568A
8 Brown
7 Brown/White
5 Blue/White
4 Blue
6 Orange
3 Orange/White
2 Green
1 Green/White
NOTE. The signals are not in consecutive order
Terminal board
D+
–
D –
CAN BUS Data Line
Terminal board
Solenoid lock
12 V - 500 mA max
–
Door lock release button (NA)
Door open contact input (NC)
– Ground
System output (active to ground)
NC Normally Closed
Programmable RelayNO Normally Open
C Common
PROG key and PROG LED
LED PROG key:
O Flashing slowly
On Flashing quickly
Connectors
CN2: connector for access control module with keypad, RFID
or combined keypad/display/RFID.
CN4: connector for connection of an additional push-button
panel.
Messages
Red - Call in progress
Yellow - Conversation in
progress
Green - Door open Blue - System busy
Technical Features
Type DVC/IP ME DC/IP ME
Power supply (V DC) 12-24
Power supply POE IEEE 802.3af (13W)
Consumption at 18 V DC (mA) 200 150
Storage temperature (°C) -25 ÷ + 70
Operating temperature (°C) -25 ÷ +55
Protection rating (IP) 54
VOIP standard SIP
Video standard H.264
Resolution (pixel) 640x480
Minimum lighting (LUX) 1
