M1
BOUT
M2
SW3
PROG
PROG
A
1 2
3
4
5
F

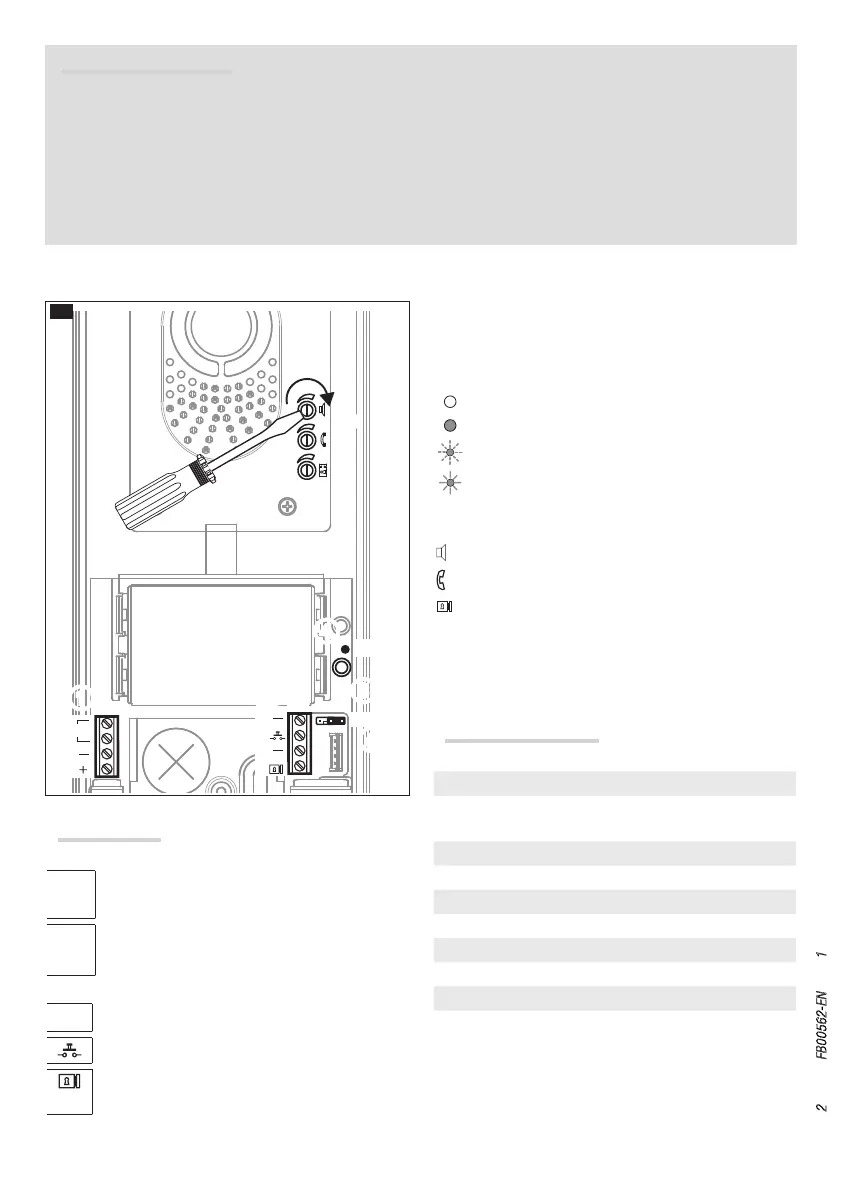

Page 2 - Manual FB00562-EN - vers. 1 - 07/2017- © Came S.p.A. - The contents of this manual may be changed, at any time, and without notice.
PROG key 3 and PROG LED 4
Programming key and LED (see 'Programming' para-
graph). The PROG LED can be in the following condi-
tions:
O
On
Flashing slowly
Flashing quickly
Adjustments 5
Speaker audio
microphone audio
solenoid lock 1÷10 s. (default 1 s)
JUMPER
6 SW3: Enabling/disabling intercom function (see
'Programming' paragraph).
Technical features
Power supply (VDC) 16÷18
Consumption (mA max) 250 120
mode (mA)
100 75
Dimensions (mm) 99x207x30
Storage temperature (°C) -25/+70
Operating temperature (°C)
Minimum lighting (LUX) 1 -
Functions A
Terminal board 1
BOUT Busbar
+
16-18 VDC power supply
–
Terminal board 2
– Earth
Door release button (NA)
–
Solenoid lock
12 V - 1 A max
General precautions
• Important safety instructions: READ CAREFULLY!
• Installation, programming, commissioning and maintenance must only be carried out by expert qualified technicians in full
compliance with the regulations in force.
• Wear anti-static shoes and clothing if working on the electronic circuit board.
• Keep this precaution information.
• Disconnect the power supply during any cleaning or maintenance work.
• The product must only be used for the purpose for which it was expressly designed. Any other use is to be considered
dangerous.
• The manufacturer declines all liability for any damage as a result of improper, incorrect or unreasonable use.
