Leaf opening arc (°)
A B C max
90 140 420 150
90 160 ÷ 180 380 150
110 200 ÷ 220 400 50
POST BRACE GATE BRACE

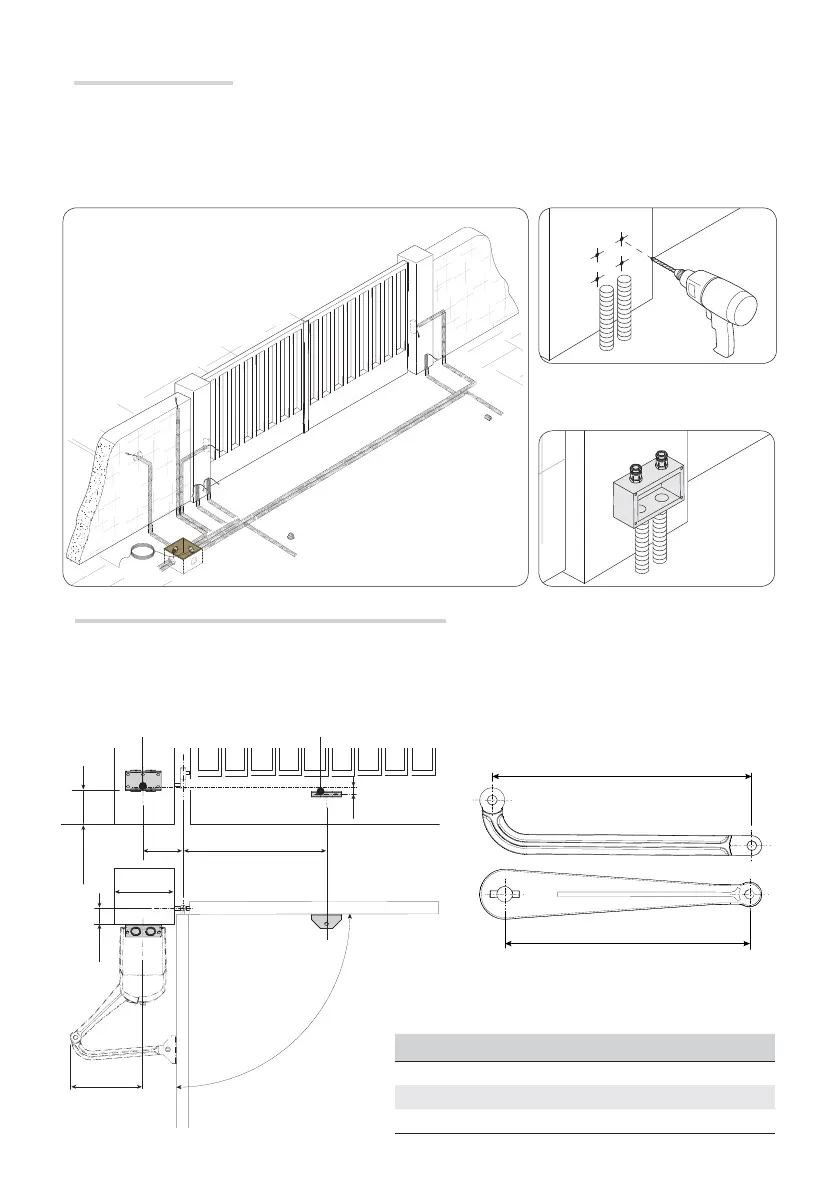

Checking measurements and applicative dimensions
Establish where you will fit the gate brace and measure where the gate-post brace will fit. Make sure to respect
the quotas shown in the drawing and table.
Preliminary operations
Fit junction boxes and corrugated tubing needed for the incoming connections from the distribution pit.
The number of tubes depends on the type of system and the accessories you are going to fi t. You need to set
up at least two corrugated tubes where the operator will be installed (
*
on the gate leaf that opens fi rst).
