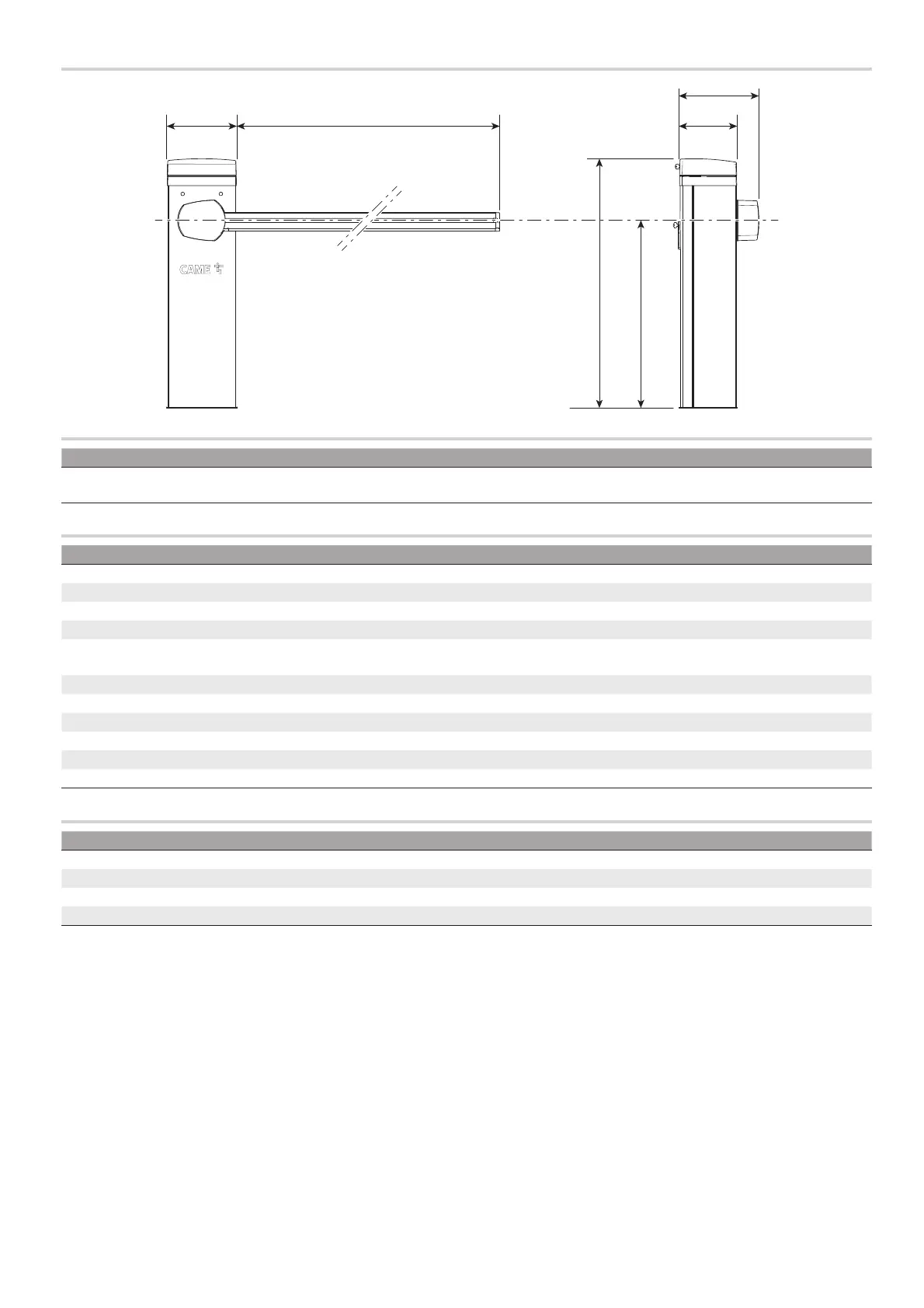

Dimensions
326 max 3800 270
884
1174
374,5
Limits to use
MODELS GPX40MGP GPX40MGS GPX40MGC
Maximum clearance width of the
passage (m)
3,8 3,8 3,8
Technical data
MODELS GPX40MGP GPX40MGS GPX40MGC
Power supply (V - 50/60 Hz) 100 AC ÷ 240 AC 100 AC ÷ 240 AC 100 AC ÷ 240 AC
Motor power supply (V) 36 DC 36 DC 36 DC
Stand-by consumption (W) 3,3 2,5 2,5
Power (W) 270 270 270
Working temperature (°C) -20 ÷ +55 (-40 with the 803XA-0210
heating system)
-20 ÷ +55 (-40 with the 803XA-0210
heating system)
-20 ÷ +55 (-40 with the 803XA-0210
heating system)
Torque (Nm) 100 100 100
Opening time at 90° (s) 1,2 ÷ 2.4 1,2 ÷ 2.4 1,2 ÷ 2.4
Duty cycle (%) CONTINUOUS SERVICES CONTINUOUS SERVICES CONTINUOUS SERVICES
Protection rating (IP) 54 54 54
Insulation class I I I
Weight (kg) 62.5 62 62
Fuse table
MODELS GPX40MGP GPX40MGS GPX40MGC
Line fuse 3.15 A F 3.15 A F 3.15 A F
Accessories fuse 2 A F 2 A F 2 A F
Cartridge heater fuse 1 A T 1 A T -
Fan fuse - - 100 mA F
