CAME LHS A/01 User Manual

Page 13 - Manual FA01639-EN - 12/2021 - © CAME S.p.A. - The contents of this manual may be changed at any time and without notice. - Translation of the original instructions

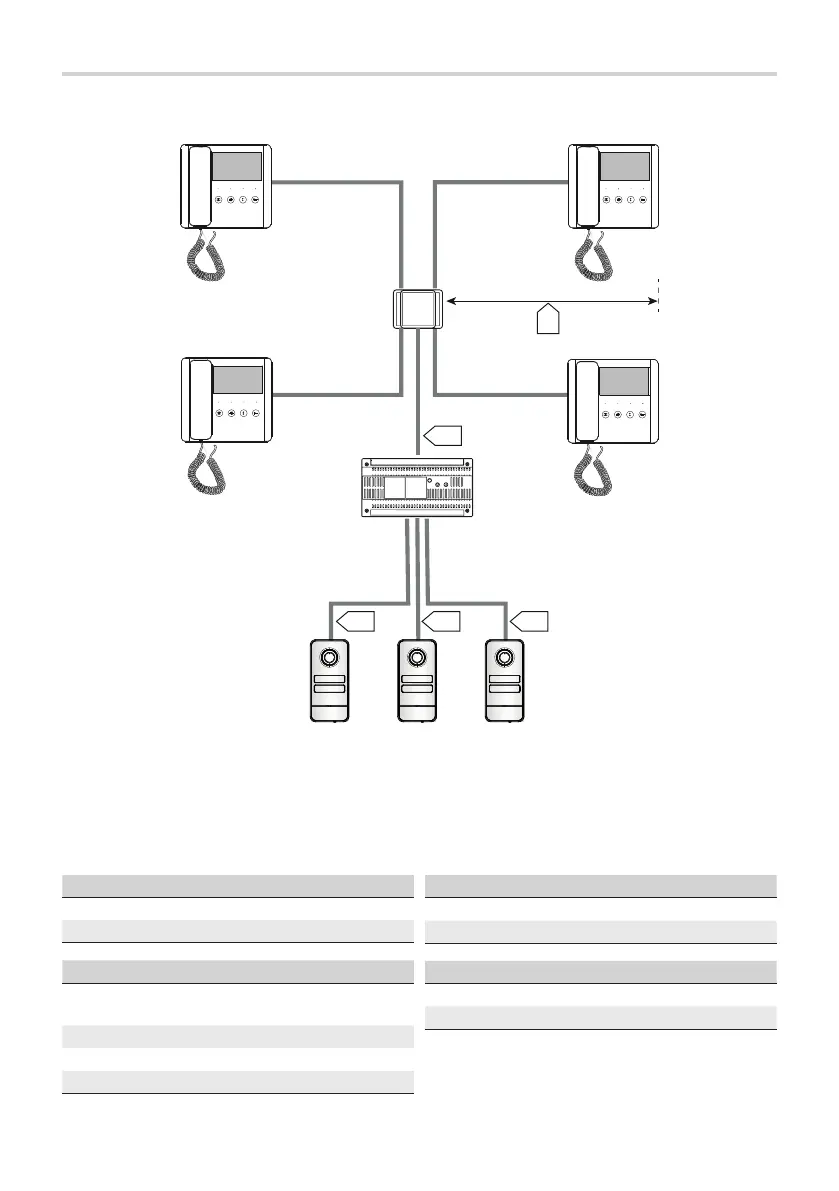

Example set-up with VA/01
XDV/304
L1 L2 L3
VA/01
Lb
La
LHS
LHS
LHS
Cable length
Section Cable type
La, Lb VCM/1D or UTP CAT5
L1, L2, L3 VCM/2D
Section Max. section length (m)
La + Lb
100 VCM/1D or 60 UTP/
CAT 5
L1 + L2 + L3 300
La + Lb + L1 (L2, L3) 150
La + Lb + L1 + L2 + L3 600
Maximum number of internal receivers per cable type
VCM/1D
Master 4321
Slave 4567
UTP CAT5
Master 321
Slave 067

CAME LHS A/01 Specifications

General

Brand	CAME
Model	LHS A/01
Category	Intercom System
Language	English
