①-M12, 120mm Hex Head Bolt ‒ Qty 6.
②-M12 Spring Washer ‒ Qty 12
③-M12 Washer ‒ Qty 12
④-M12 Nut ‒ Qty 6
Note: The fastener (bolt & nut) must clamp
against solid timber, with no airgaps, otherwise
a soft joint could result in the bolt or nut
coming loose.
M12 Bolt torque: 60Nm ‒ 85Nm*. All 6 bolts
should be used for the installation. If the bolts
are too long, excess length can be cut off once
the fastener is torqued up correctly. Any
cutting must leave 3 full threads, exposed past
the nut.
This system is designed for mounting the 2.5kg
Camec Wall Mount Washing Machine to
structurally sound caravan walls that are
20mm - 65mm thick.
The washing machine must only be mounted
to structurally sound caravan walls that are fit
for purpose. Care should be taken to ensure
adequate clearance to wiring or plumbing
when installing the washing machine.

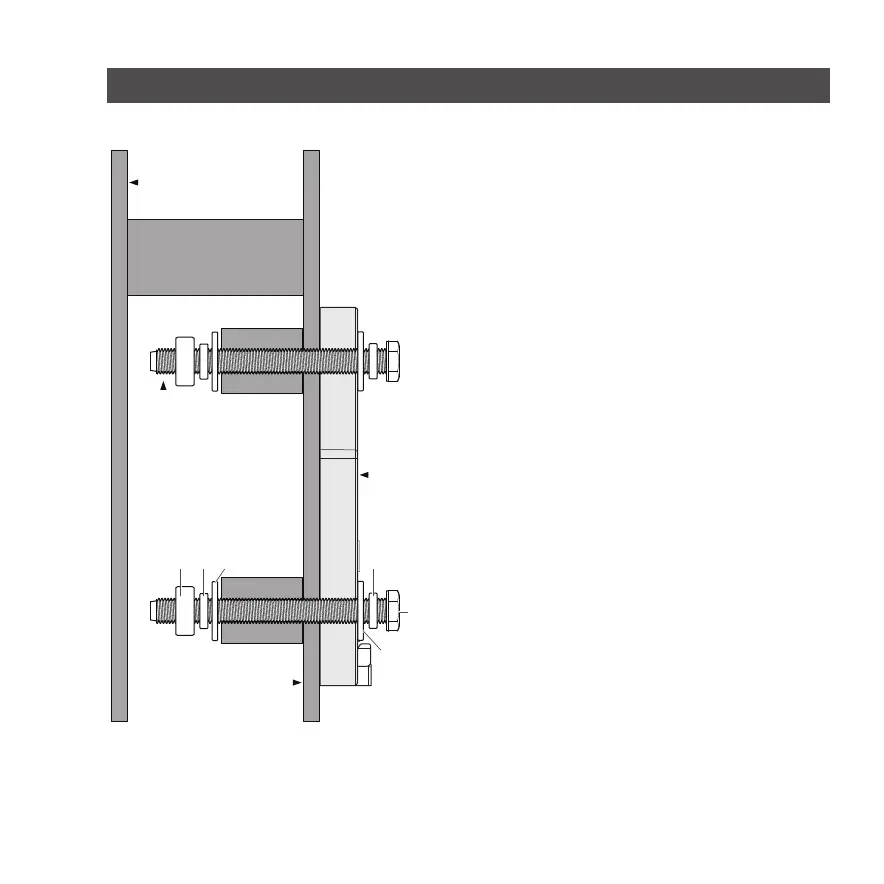

Installing the Washing Machine
Outside wall of caravan (installed
after washing machine)
If cutting off excess bolt
length, 3 full threads must
be present after the nut.
Washing Mount
Mounting Bracket
(plastic), 40mm
thick ‒ Qty 1
Inside wall of caravan, for
fixation of washing machine
mounting bracket.
①
②
②④
③
③
