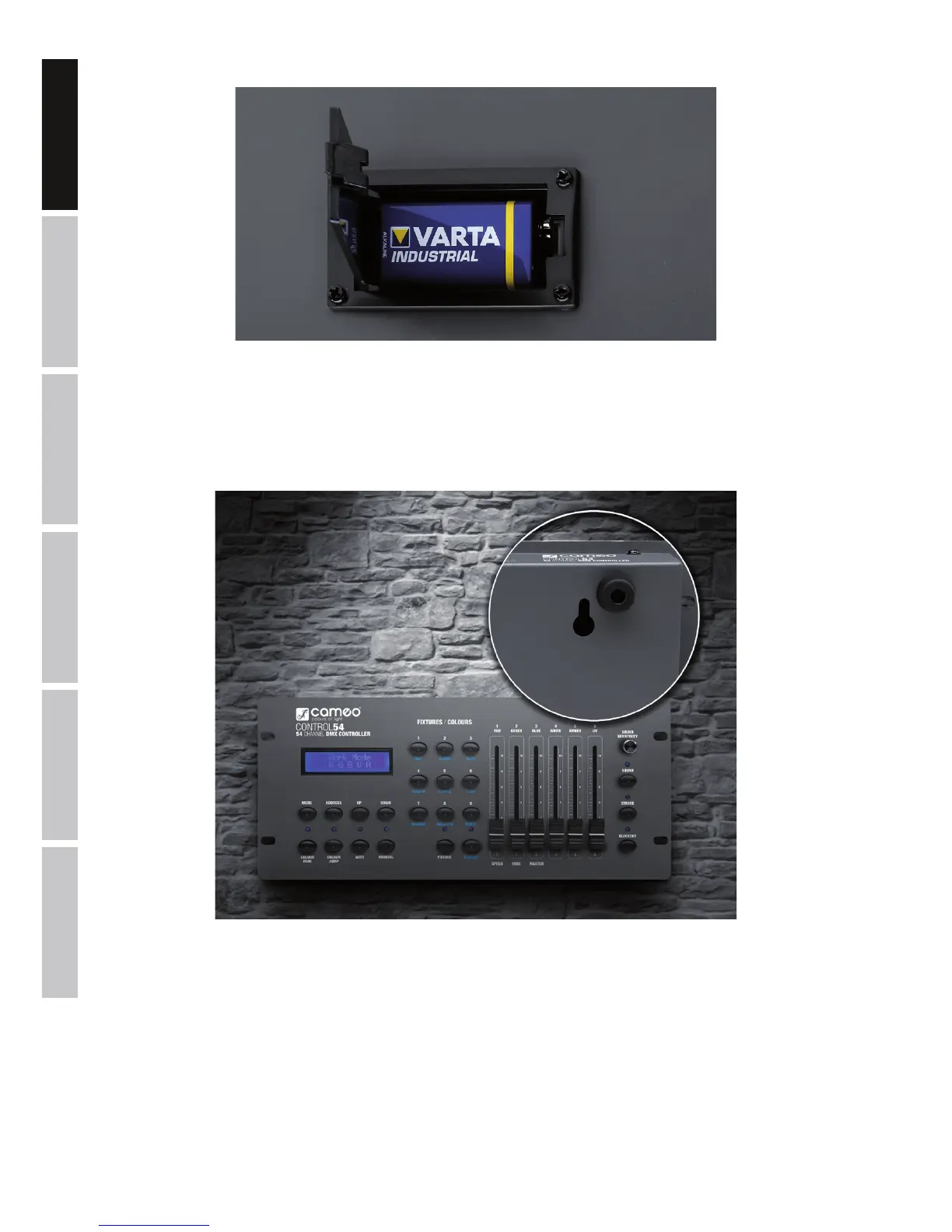

BATTERY OPERATION
To operate the DMX controller with a battery, open the battery compartment on the bottom of the unit by pressing the OPEN latch lever in the
direction of the arrow and lift the battery compartment cover. Connect the internal battery clip to the plus and minus poles of a fresh 9 V block
battery, place the battery into the battery compartment and close the battery compartment cover with light pressure, until the latch lever clicks
into place. When the equipment is operated with the power pack, the voltage supply from the battery is automatically interrupted. Remove the
battery before extended periods of disuse and operation only with the power pack.
SETTING UP AND WALL MOUNTING
There are 2 mounting holes left and right on the edges of the front panel for the installation. The fixing holes for the wall mounting can be
found at the back of the housing.
