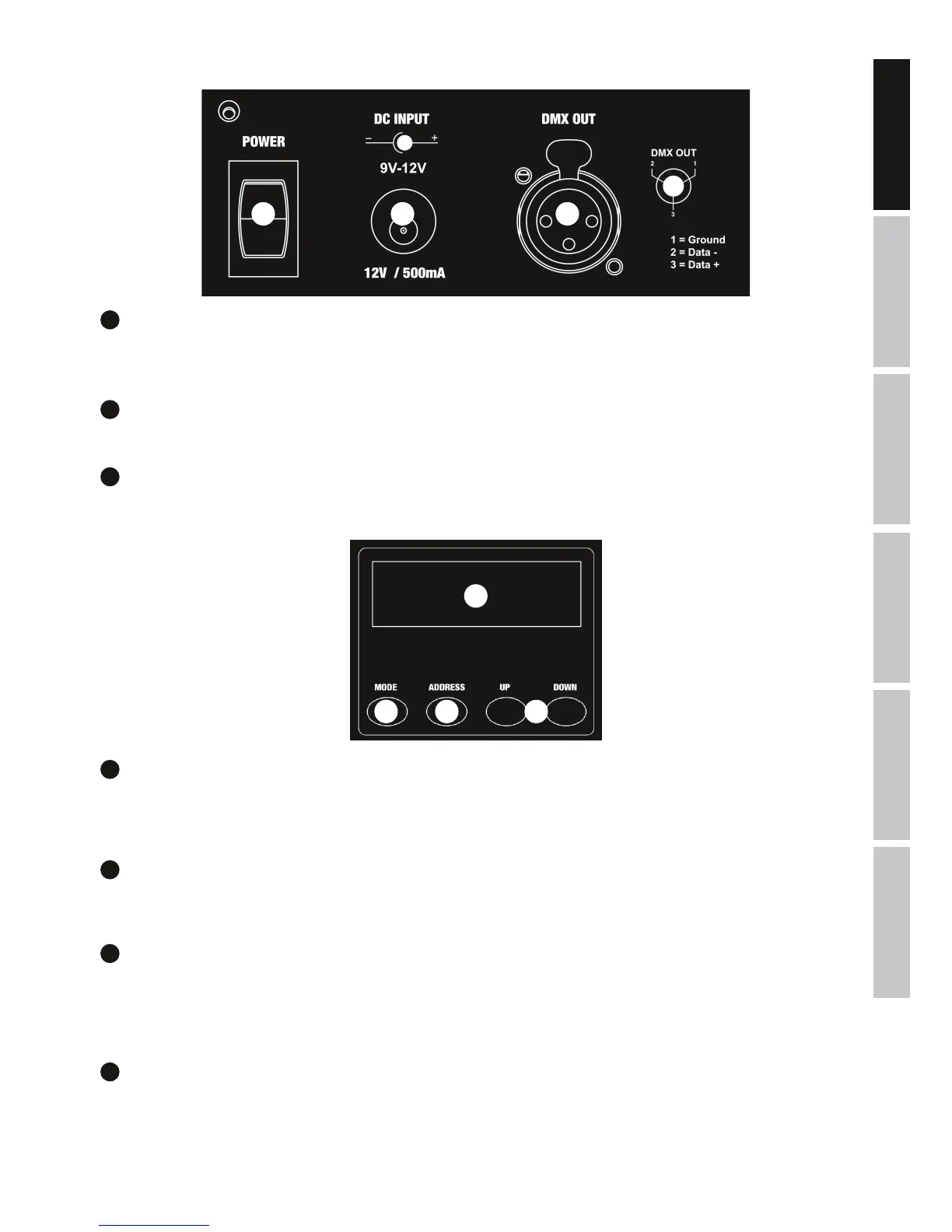

CONNECTIONS, CONTROLS AND INDICATORS
2 1 3
1
LOW VOLTAGE CONNECTOR
Connection for the voltage supply of the device. Please use only the original power pack supplied with the device.
NOTE: When the equipment is operated with the power pack, the voltage supply from the battery is automatically interrupted.
2
POWER
On / Off switch.
3
DMX OUT
DMX output with female 3-pin XLR socket and standard configuration. Use a DMX cable to connect the DMX output of the DMX controller to
the DMX input of your DMX device.
5 6 7
4
4
LC DISPLAY
This illuminated 2-line LC display shows the number of the currently selected device (FIX 1 - 9), as well as its starting address and channel
number with the corresponding value. In addition, the display shows if the corresponding DMX unit is configured as an RGB, RGBW, or
RGBWA device (press MODE).
5
MODE
Button to configure the DMX spotlights or light groups (up to 9) as RGB, RGBW, or RGBWA devices (prerequisite for the selection of the
colour macros COLOURS)
6
ADDRESS
Press the ADDRESS button to set the DMX start address of the DMX controller for Device 1 (Fixture 1) (change of address with UP and
DOWN). After the change of address, confirm again with ADDRESS. The DMX start addresses of the DMX controller for the devices 2 to 9
move up automatically by 6 units (example 1: start address device 1 = 001 / start address device 2 = 007, etc., example 2: start address
device 1 = 080 / start address device 2 = 086, etc.)
7
UP & DOWN
Buttons to change the DMX address of DMX controller for device 1 (Fixture 1).
