ENGINEERED & PROCESS VALVES
6
02/2011 / IOM-WKM-GATE-PRS-01
Installation, Operation and Maintenance Manual
BILL OF MATERIALS OUTSIDE PACKING GLAND
(OPG OR OS&Y) OPTION

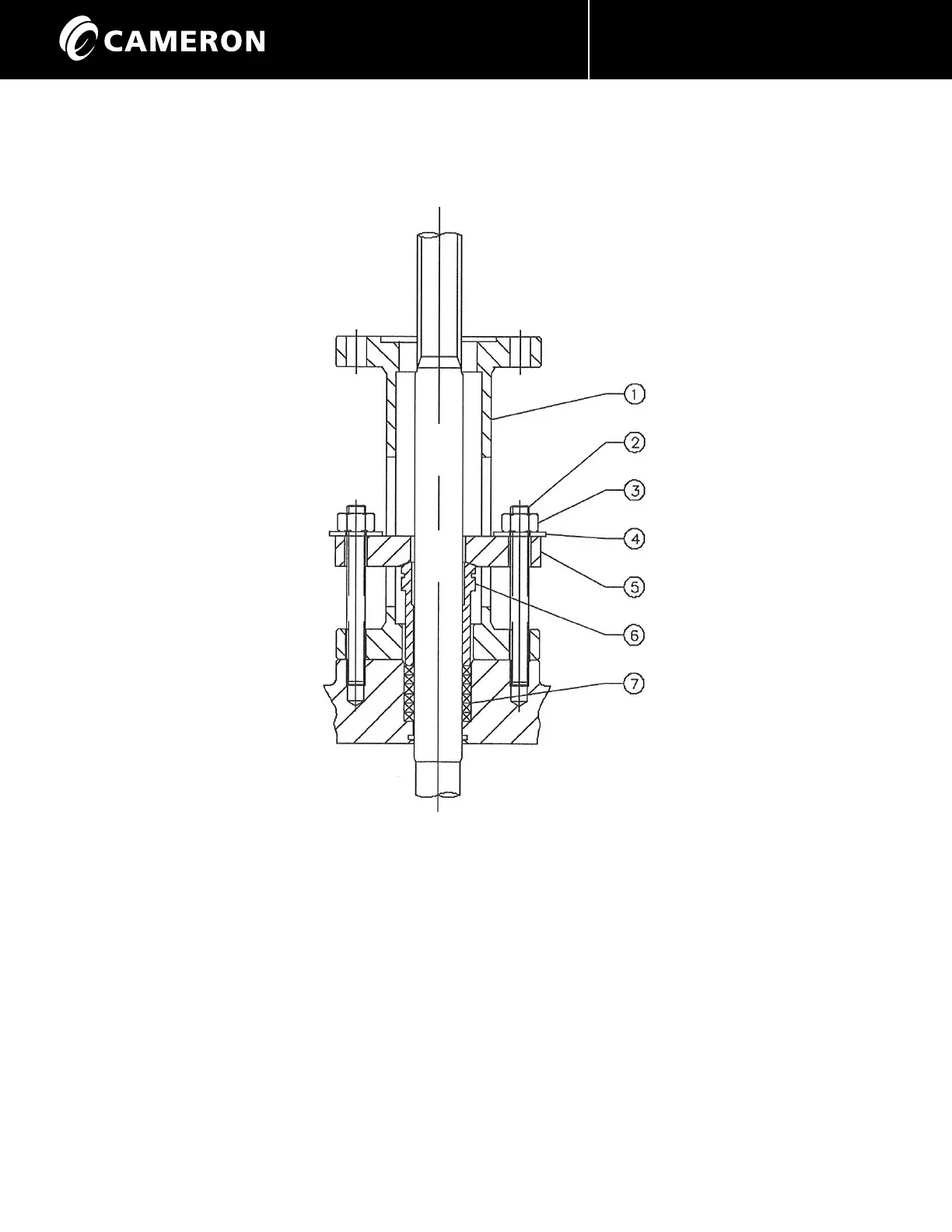

Figure 4 - Outside Packing Gland (OPG) Stem Seal Arrangement
ITEM DESCRIPTION
1. OPG Yoke Tube
2. Studs
3. Nuts
4. Lock Washer
5. Follow Plate
6. Packing Gland
7. Packing Rings
