Cameron WKM MA - Bill of Materials

1
Installation, Operation and Maintenance Manual
D I S T R I B U T E D V A L V E S
(Wafer body shown,
lug body available)
1
4
6
5
7
8
7
20
23
10
21
11
9
13
19
16
17
14 22 12 2 3

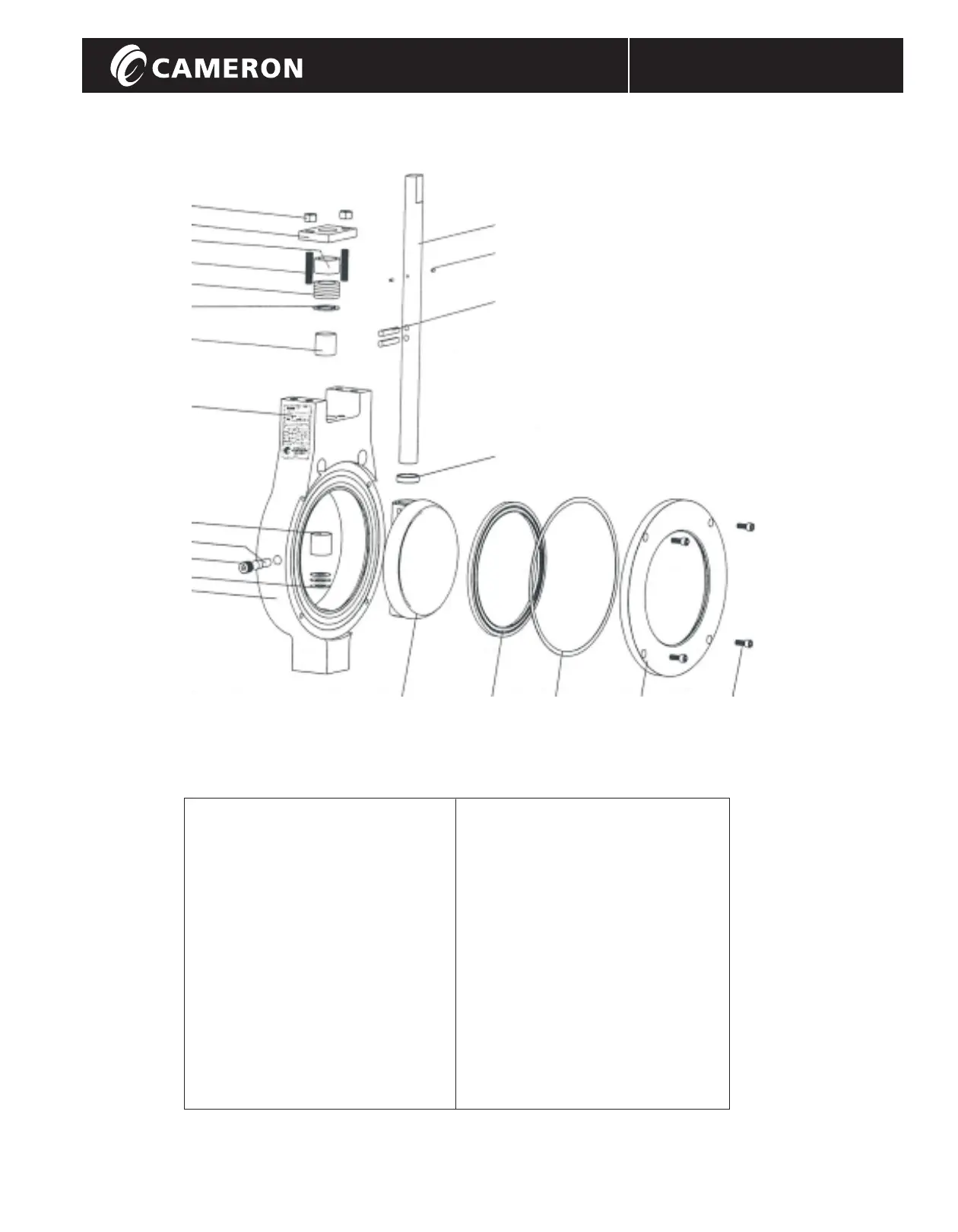

Figure 1 -
3" - 8" Class 600 DynaCentric Butterfly Valve Components.
Cameron Valves' WKM 3" - 12" Class 150, 3" - 10" Class 300,
Bill of Materials
WKM-MA-HPBV-IOM
ITEM DESCRIPTION
1. Body
2. Seat Retainer
3. Seat Retainer Screw
4. Stem/Disc Spring
5. Stop Pin
6. Stop Pin Plug
7. Stem Bearing
8. Nameplate
9. Gland Retainer
10. Gland Retainer Stud
11. Gland Retainer Nut
12. Body Gasket
13. Upper Stem
ITEM DESCRIPTION
14. Disc
15. Lower Stem
16. Stem Pins
17. Disc Spacer
18. Key
19. Stem Retainer Pins
20. Packing Spacer
21. Gland Ring
22. Seat
23. Packing Set
25. Bottom Cover
26. Bottom Cover Gasket
27. Bottom Cover Screw
