Catalog number information

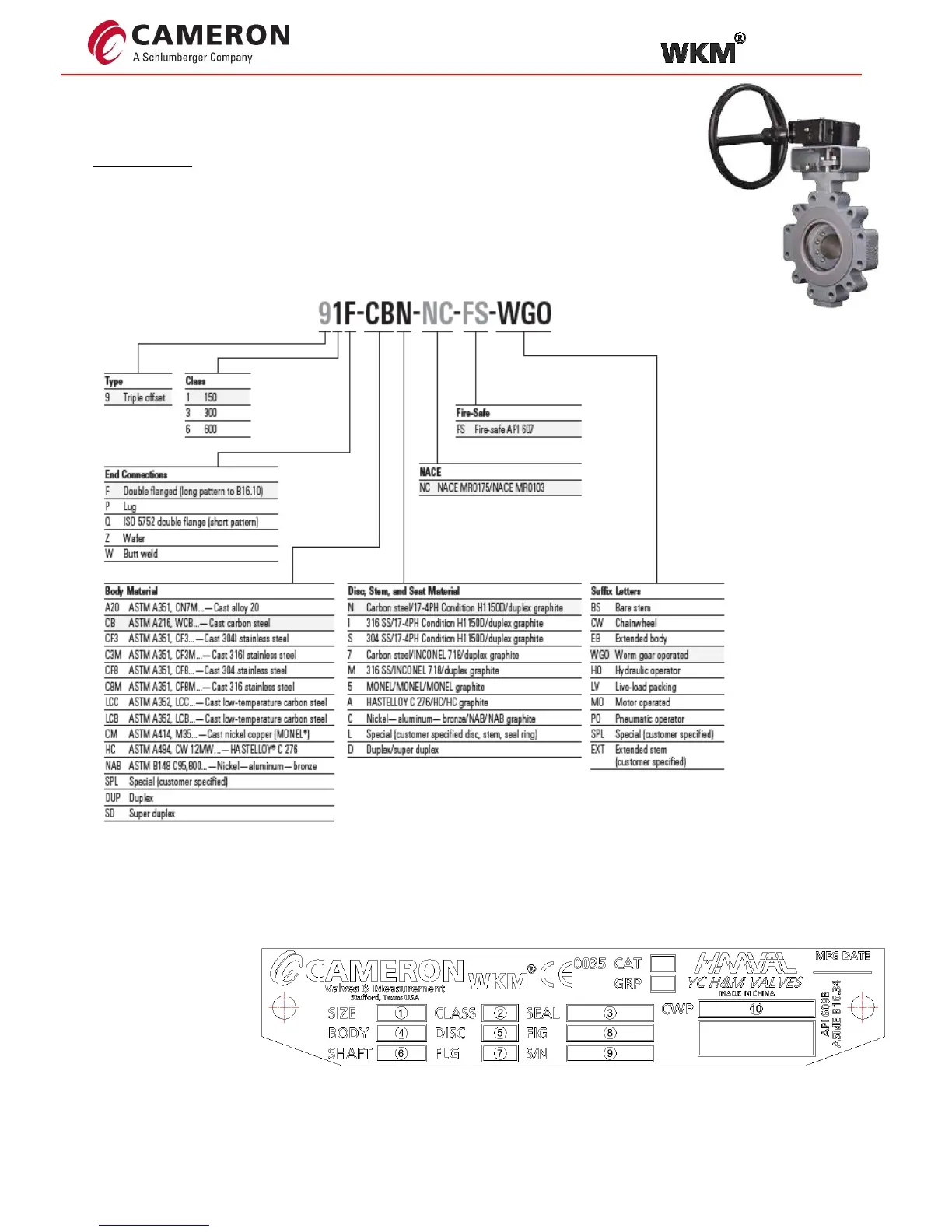

Figure number:
The figure number shown below identifies specific valve configuration details of WKM
®
Triple
Offset Valves such as valve type, pressure class, end connections, body/bonnet and trim
materials, and special features.
Nameplate information
1. Valve size
2. Valve class
3. Seal material See for reference nameplate drawing below.
4. Body material
5. Disc material
6. Shaft material
7. Flange type
8. Figure number
9. Serial number
10. Maximum CWP
