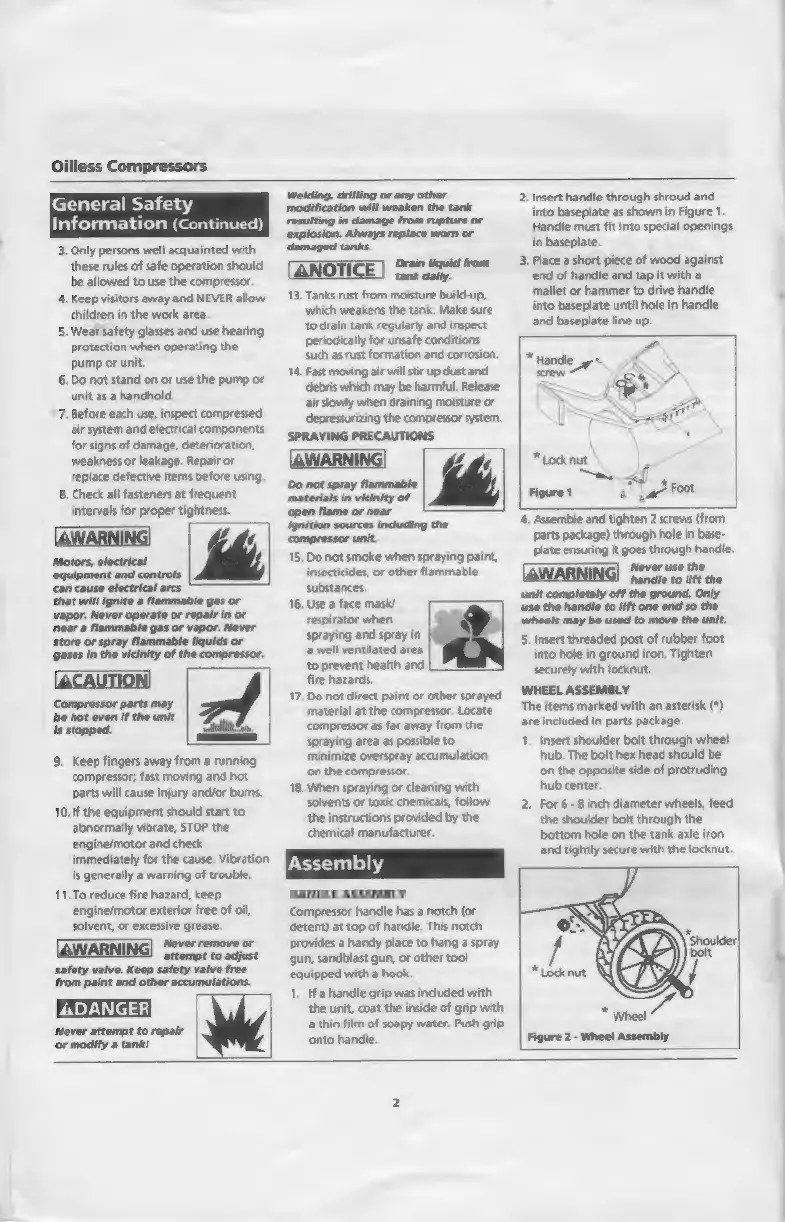

Oilless Compressors
General Safety
Information (Continued)
3. Only persons well acquainted with
these rules of safe operation should
be allowed to use the compressor.
4. Keep visitors away and NEVER allow
children in the work area.
5. Weaf Safety glasses and use hearing
protection when operating the
pump or unit.
6, Do not stand on or use the pump or
unit as a handhold.
7. Before each use, inspect compressed
air system and electrical components
for signs of damage, deterioration,
weakness or leakage. Repair or
replace defective items before using.
8. Check all fasteners at frequent
intervals for proper tightness.
AWARNINC ta
9. Keep fingers away from a running
compressor; fast moving and hot
parts will cause injury and/or burns.
10.H the equipment should start to
abnormally vibrate, STOP the
engine/motor and check
immediately for the cause. Vibration
is generally a warning of trouble.
11. To reduce fire hazard, keep
engine/motor exterior free of oil,
solvent, or excessive grease.
À DANGER
Never attempt to repair
‘or modify a tank!
Welding, drilling or any other
‘modification will weaken the tank
resulting in damage from rupture or
‘explosion. Always replace worn or
damaged tanks.
(ANOTICE) fasca a
13. Tanks rust from moisture build-up,
which weakens the tank. Make sure
to drain tank regularly and inspect
periodically for unsafe conditions
such as rust formation and corrosion.
14. Fast moving air will stir up dust and
debris which may be harmful. Release
air slowly when draining moisture or
depressurizing the compressor system.
SPRAYING PRECAUTIONS
[AWARNING] i,
2. Insert handle through shroud and
into baseplate as shown in Figure 1
Handle must fit into special openings
in baseplate.
3. Place a short piece of wood against
end of handle and tap it with a
mallet or hammer to drive handle
into baseplate until hole in handle
and baseplate line up.
Figure 1
15. Do not smoke when spraying paint,
insecticides, or other flammable
substances.
16. Use a face mask/
respirator when
spraying and spray in
a well ventilated area
to prevent health and
fire hazards.
17. Do not direct paint or other sprayed
material at the compressor. Locate
compressor as far away from the
area as possible to
ize overspray accumulation
‘on the compressor.
18. When spraying or cleaning with
solvents or toxic chemicals, follow
the instructions provided by the
chemical manufacturer.
Assembly
HANDLE ASSEMBLY
Compressor handle has a notch (or
detent) at top of handle. This notch
provides a handy place to hang a spray
‘gun, sandblast gun, or other tool
equipped with a hook
1. 1f a handle grip was included with
the unit, coat the inside of grip with
2 thin film of soapy water. Push grip
onto handle.
4, Assemble and tighten 2 screws (from
parts package) through hole in base-
plate ensuring it goes through handle.
ET
WARNING? hanaie to tft the
unit completely off the ground. Only
use the handle to lift one end so the
wheels may be used to move the unit.
5. Insert threaded post of rubber foot
into hole in ground iron. Tighten
securely with locknut.
WHEEL ASSEMBLY
The items marked with an asterisk (*)
are included in parts package.
1. Insert shoulder bolt through wheel
hub. The bolt hex head should be
‘on the opposite side of protruding
hub center.
2. For 6-8 inch diameter wheels, feed
the shoulder bolt through the
bottom hole on the tank axle iron
and tightly secure with the locknut.
