Campbell Hausfeld WS0900 Operating Instructions And Parts Manual

10
8
9
12
10
10
7
13
11
1
2
3
4
5
6
1 Electrode holder assembly -
Cord not included (Includes
reference numbers 2-6) WC200000AV 1
2 Electrode holder handle (Cord
not included) WC200001AV 1
3 Electrode holder body WC200002AV 1
4 Insulation cap WC200003AV 1
5 #10-24 x .5” Machine screw ❋ 1
6 #10-24 x 7/16” Square nut ❋ 1
7 Work clamp (Cord not included) WC100000AV 1
8 Safety decal (Right) DK670000AV 1
9 Safety decal (Left) DK670001AV 1
10 Welding cable 6 AWG (6 ft) ❋ 2
11 Power cord 14-2 AWG (6 ft)
Type SJT WC000400AV 1
12 On/Off switch WC400100AV 1
13 Hand wheel WC302100AV 1
❋ Standard hardware item,
available at local hardware or
welder supply store
Ref
No. Description WS0900 Qty
For Replacement Parts, call 1-800-746-5641
Address parts correspondence to:
The Campbell Group
Attn: Parts Department
100 Production Drive
Harrison, Ohio 45030
Please provide following information:
- Model number
- Serial number (if any)
- Part description and number as
shown in parts list

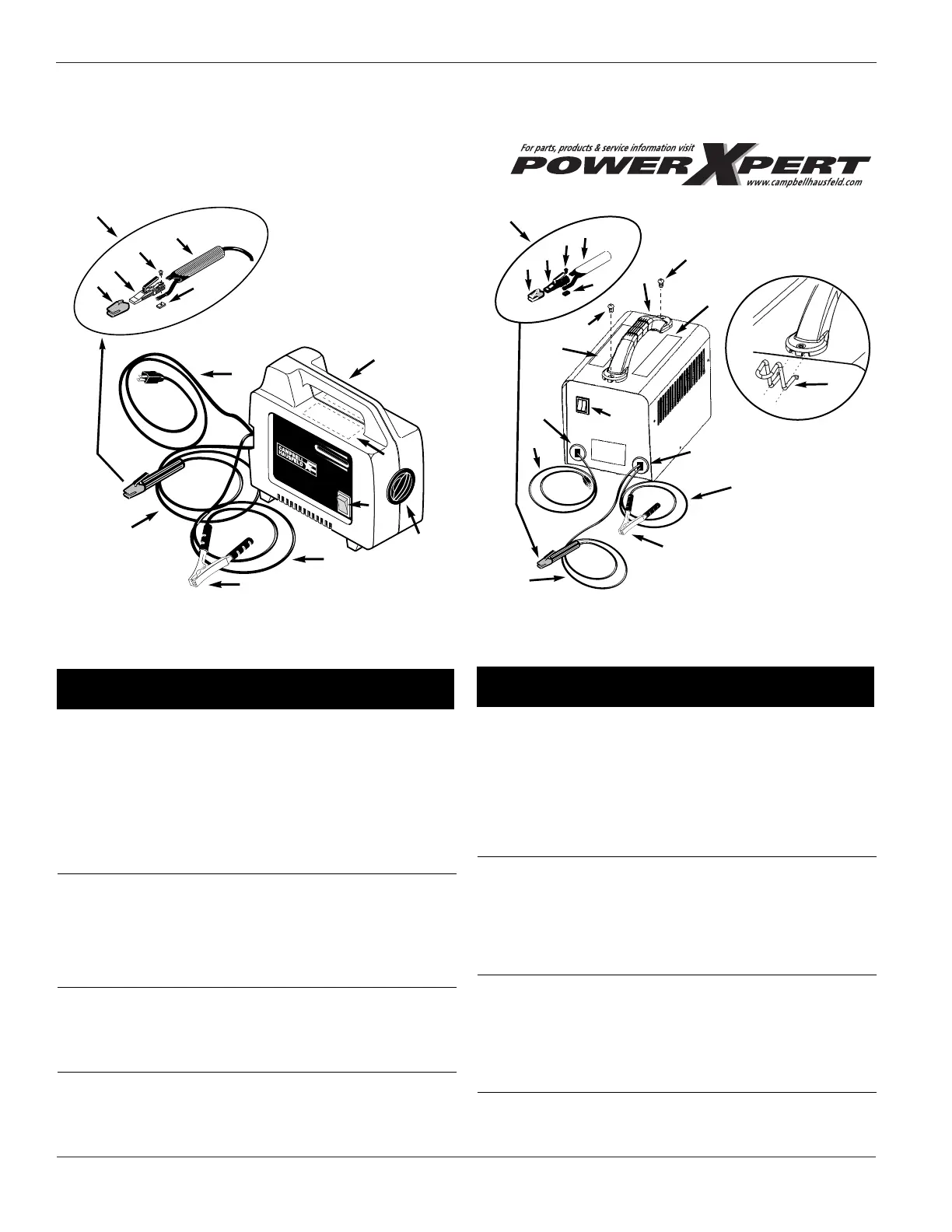

Shielded Metal Arc Welder Models WS0900 and WS090001
1
2
5
6
3
4
9
10
16
15
12
7
12
13
14
9
11
8
15
WS0900
WS090001
Replacement Parts List - Model WS0900
1 Electrode holder assembly -
Cord not included (Includes
reference numbers 2-6) WC200000AV 1
2 Electrode holder handle (Cord
not included) WC200001AV 1
3 Electrode holder body WC200002AV 1
4 Insulation cap WC200003AV 1
5 #10-24 x .5” Machine screw ❋ 1
6 #10-24 x 7/16” Square nut ❋ 1
7 Work clamp WC100300AV 1
8 Handle WC301300AV 1
9 #8-36 x 3/4” pan head screw ❋ 2
10 Safety decal (right) DK670000AV 1
11 Safety decal (left) DK670001AV 1
12 Welding cable 6 AWG (6 ft) ❋ 2
13 Power cord 14-3 AWG (6 ft)
Type SJT WC000100AV 1
14 High/off/low thermal indicator WC401000AV 1
15 Strain relief WC102000AV 2
16 Cord storage clip WC301301AV 2
❋ Standard hardware item,
available at local hardware or
welder supply store
Ref
No. Description WS090001 Qty
Replacement Parts List - Model WS090001
www.campbellhausfeld.com
