Campbell Hausfeld WS0900 User Manual

10
8
9
12
10
10
7
13
11
1
2
3
4
5
6

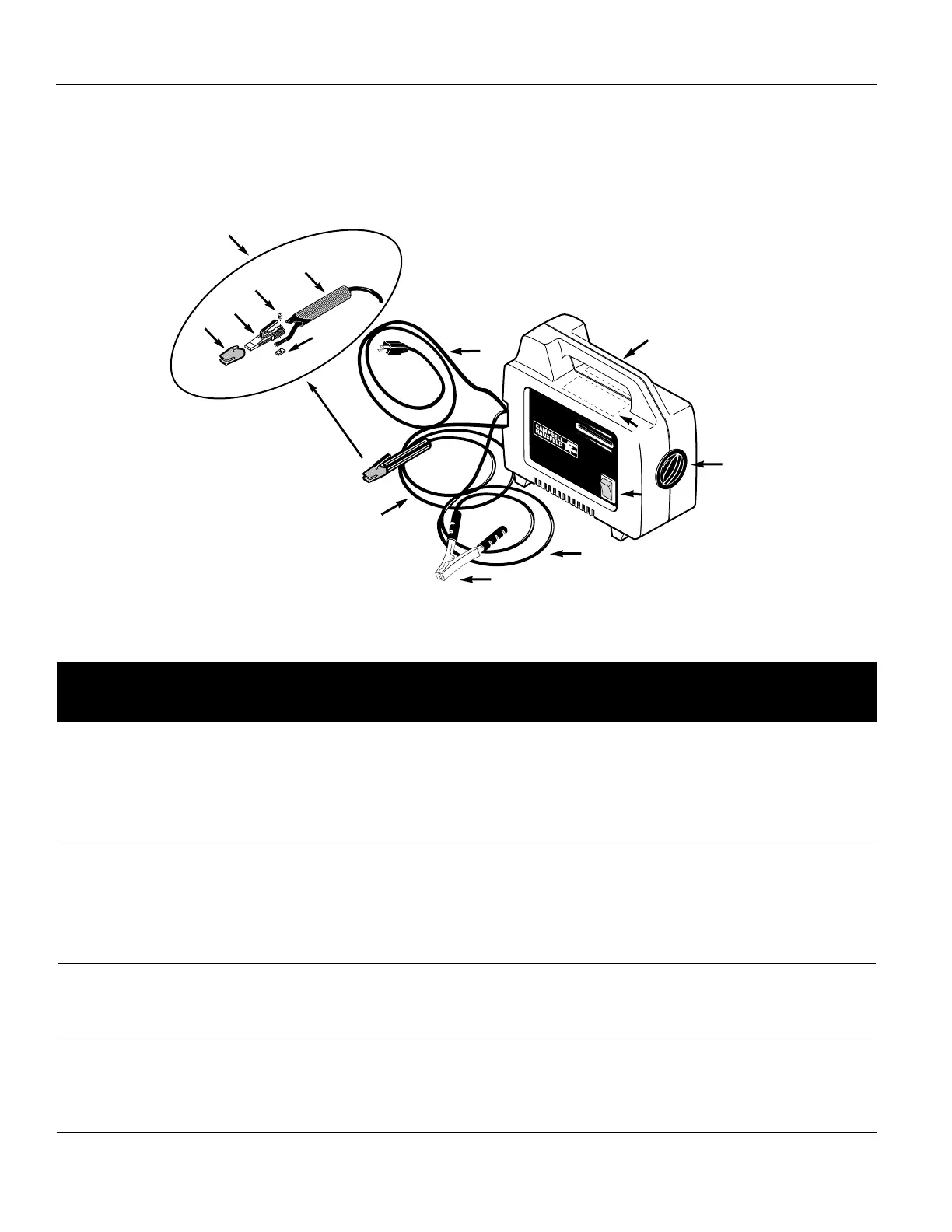

1 Electrode holder assembly - Cord not included (Includes reference numbers 2-7) WC200000AV 1
2 Electrode holder handle (Cord not included) WC200001AV 1
3 Electrode holder body WC200002AV 1
4 Insulation cap WC200003AV 1
5 #10-24 x .5” Machine screw ❋ 1
6 #10-24 x 7/16” Square nut ❋ 1
7 Work clamp (Cord not included) WC100000AV 1
8 Safety decal (Right) DK404300AV 1
9 Safety decal (Left) DK404400AV 1
10 Welding cable 6 AWG (6 ft) ❋ 2
11 Power cord 14-2 AWG (6 ft) Type SJT WC000400AJ 1
12 On/Off switch WC400100AJ 1
13 Hand wheel WC302100AJ 1
❋ Standard hardware item, available at local hardware or welder supply store
Replacement Parts List - Model WS0900
Ref
No. Description Part Number Qty
For Replacement Parts, call 1-800-746-5641
Address parts correspondence to:
The Campbell Group
Attn: Parts Department
100 Production Drive
Harrison, Ohio 45030
Please provide following information:
- Model number
- Serial number (if any)
- Part description and number as
shown in parts list
Shielded Metal Arc Welder Model WS0900

Campbell Hausfeld WS0900 Specifications

General

Brand	Campbell Hausfeld
Model	WS0900
Category	Welding System
Language	English
